Installation
Connecting to Component Video and RGB ( Scart) Equipment
Note:
•WhentheAUDIOOUTisplugged-in,theprojector'sbuilt-inspeakerisnotavailable.
•Seepage72fororderingoptionalcables.

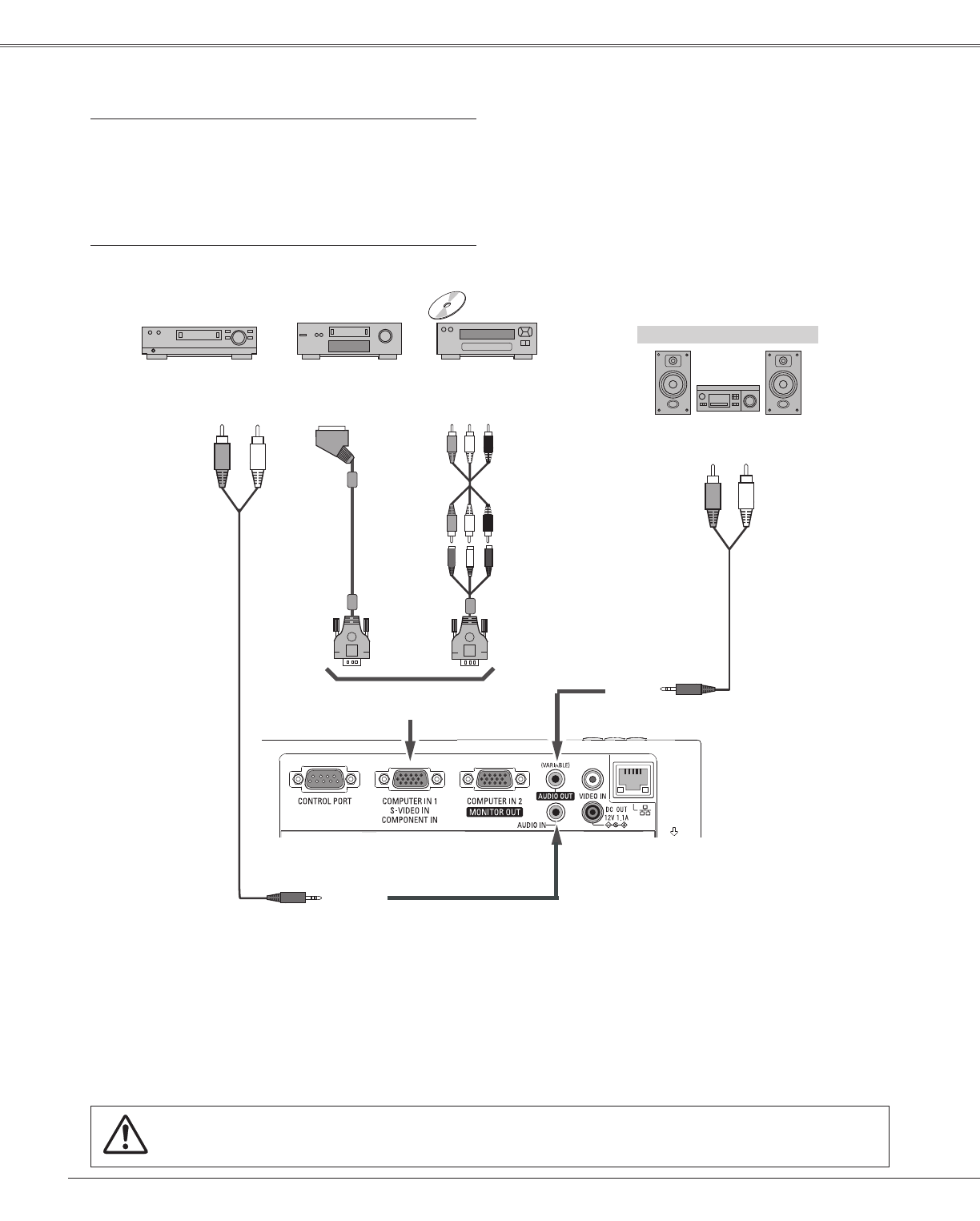

Cables used for connection
•AudioCables(MiniPlug:stereo)
•Scart-VGACable
•ComponentCable
•Component-VGACable
(Cables are not supplied with this projector.)
Unplug the power cords of both the projector and external equipment from the AC outlet before connecting
cables.
External Audio Equipment
AUDIO IN
Audio cable
(stereo)
Audio cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Audio Output RGB Scart
21-pin Output
Scart-VGA
cable
Component-
VGA cable
AUDIO OUT
(stereo)
Component
cable
COMPUTER IN 1/ S-VIDEO IN / COMPONENT IN
