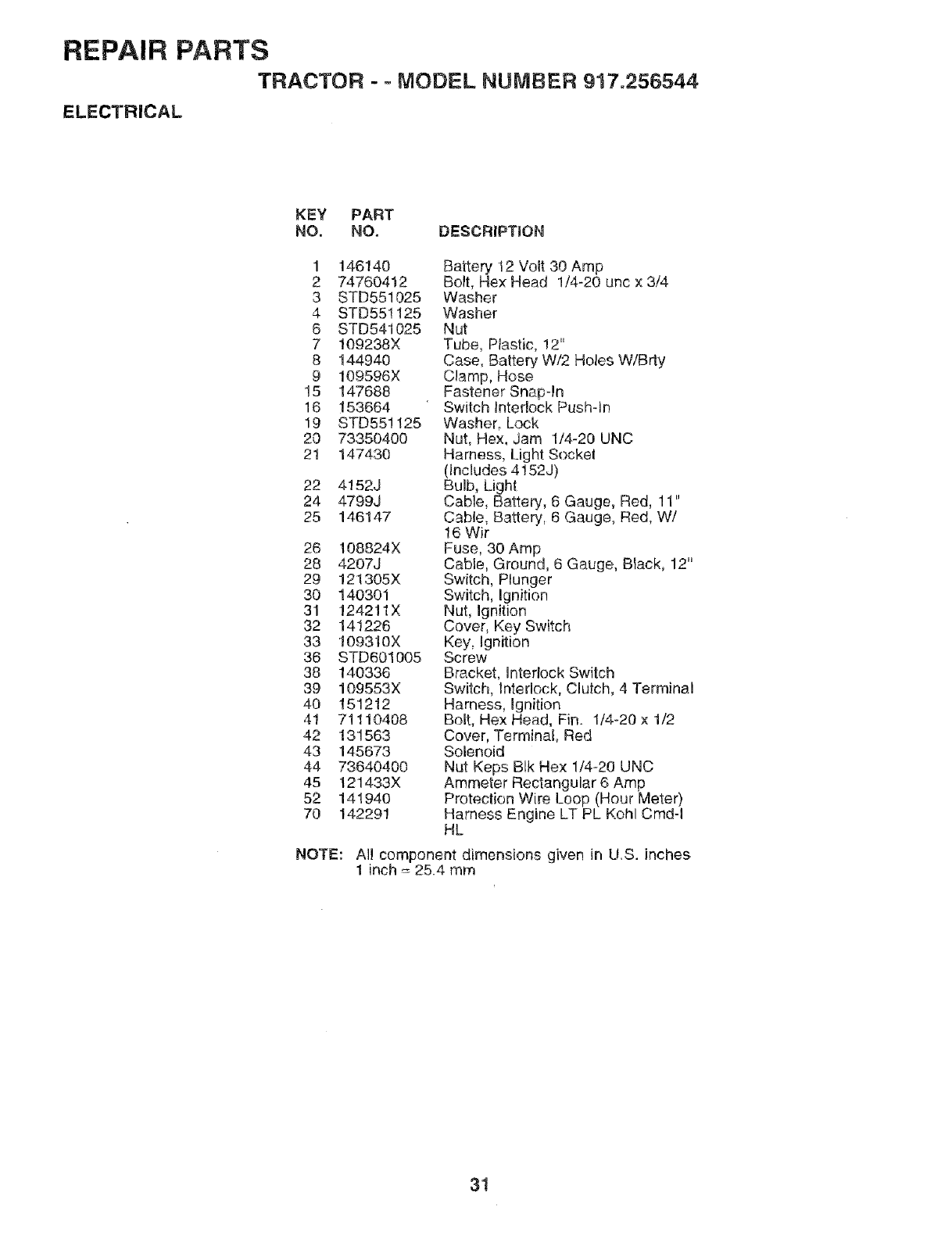

REPAIR PARTS
TRACTOR - ° MODEL NUMBER 917.256544
ELECTRICAL
KEY PART
NO, NO. DESCRIPTION
1 146140
2 74760412
3 STD551025
4 STD55!125
6 STD541025
7 109238X
8 144940
9 109596X
15 147688
16 153664
19 STD551125
20 73350400
21 147430
22 4152J
24 4799J
25 146147
26 108824X
28 4207J
29 121305X
30 140301
31 124211X
32 141226
33 !09310X
36 STD601005
38 140336
39 109553X
40 151212
41 71110408
42 131563
43 145673
44 73640400
45 121433X
52 141940
70 142291
Battery 12 Volt 30 Amp
Bolt, Hex Head 1/4-20 unc x 3/4
Washer
Washer
Nut
Tube, Plastic, 12"
Case, Battery W/2 Holes W/Brty
Clamp, Hose
Fastener Snap-In
Switch Interlock Pushqn
Washer, Lock
Nut, Hex, Jam 1/4-20 UNC
Harness, Light Socke!
(Includes 4152J)
Bulb, Light
Cable, Battery, 6 Gauge, Red, 11"
Cable, Battery, 6 Gauge, Red, W/
16 Wir
Fuse, 30 Amp
Cable, Ground, 6 Gauge, Black, 12"
Switch, Plunger
Switch, Ignition
Nut, Ignition
Cover, Key Switch
Key, Ignition
Screw
Bracket, Interlock Switch
Switch, Interlock, Clutch, 4 Terminal
Harness, Ignition
Bolt, Hex Head, Fin. 1/4-20 x 1/2
Cover, Terminal, Red
Solenoid
Nut Keps Blk Hex 1/4-20 UNC
Ammeter Rectangular 6 Amp
Protection Wire Loop (Hour Meter)
Harness Engine LT PL Kohl Cmd-I
HL
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
3!
