PowerTALK 101
41
Default settings:
9600 8N1
COM1
Port 1 = Ch 1
Port 2 = Ch 2
A
Port 1 = Ch 1
Port 2 = Ch 2
B
Use Windows’
HyperTerminal,
connected with
a Laplink cable
Usetheredserverflyleadto
connect Ethernet ports
Insert Loopback
plug into Serial
1

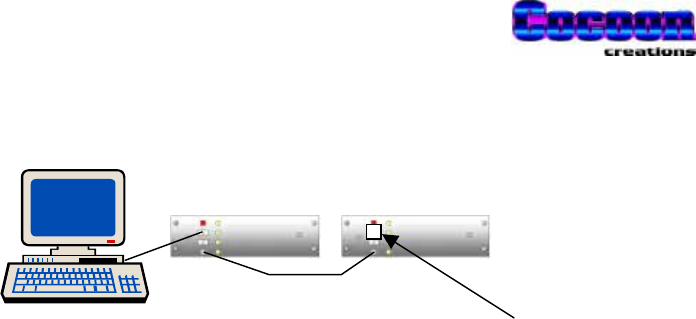

Loopback test connection
For the loopback test described above, no setting changes are required. The PowerTALK 101
units can be unpacked from the original boxes, powered up, and immediately be connected to
perform above functionality test. The same test can also be executed using arbitrary settings as
can be changed using PT.EXE.
