13
Jack PC Hardware User Manual - Training Department
Version 0506

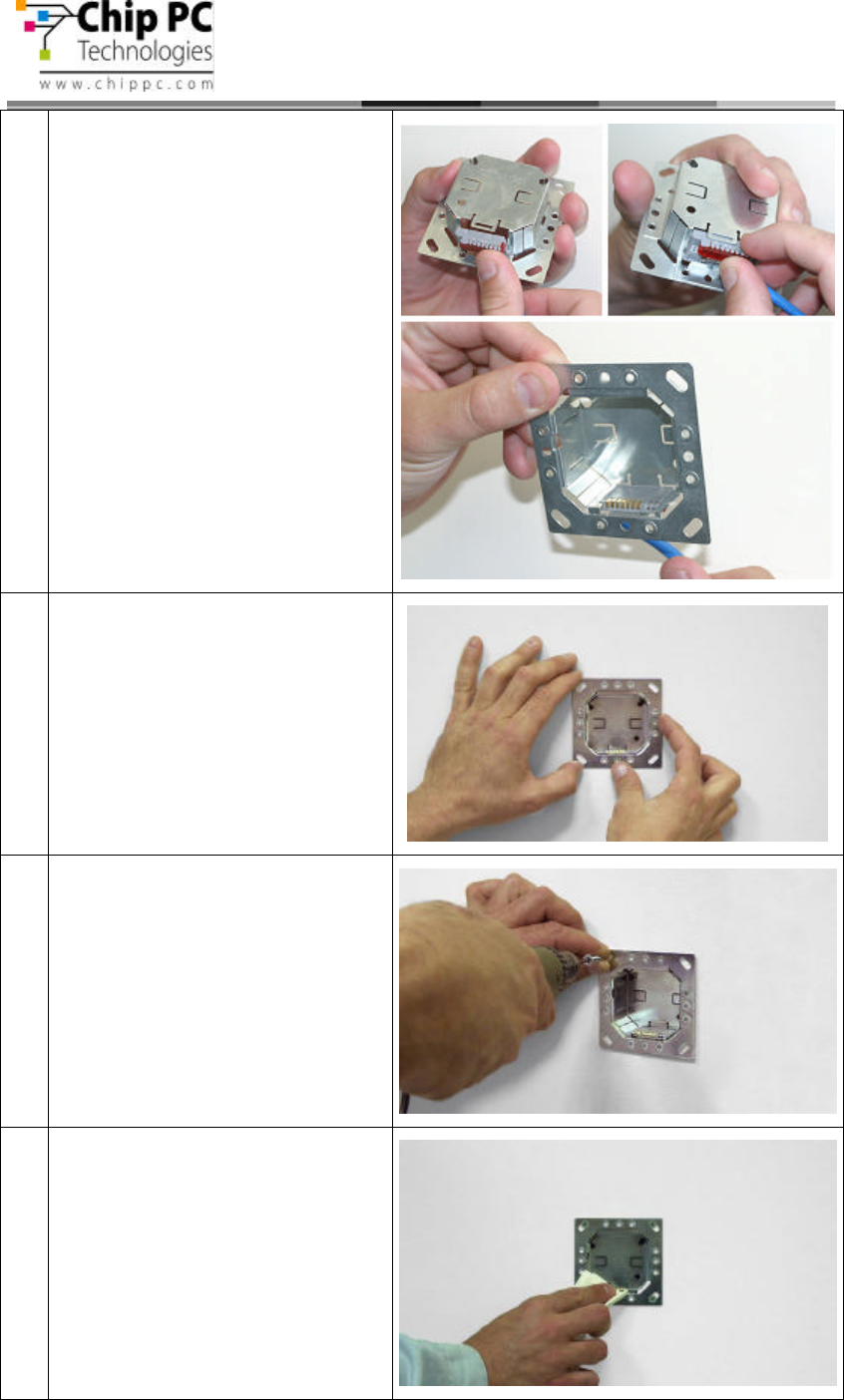

5 Insert the RJ-45 Termination
Connector Block into the Flex-Jack
Housing bottom part until you hear a
clicking sound indicating it has
locked properly into place.
6 Place the Flex-Jack Housing inside
the Jack hole. Trim wall cutout if
necessary.
7 Test the Flex-Jack has current
before you continue.
Make sure that the Flex-Jack
Housing is fully inserted, level-
headed and that the Housing
contacts are located at the bottom
part as shown in picture.
Secure with 4 screws.
8 Gently clean the Flex-Jack Housing
contacts from dust, debris and other
objects.
