MODELS ILB9
!!
!!
!
ILB11

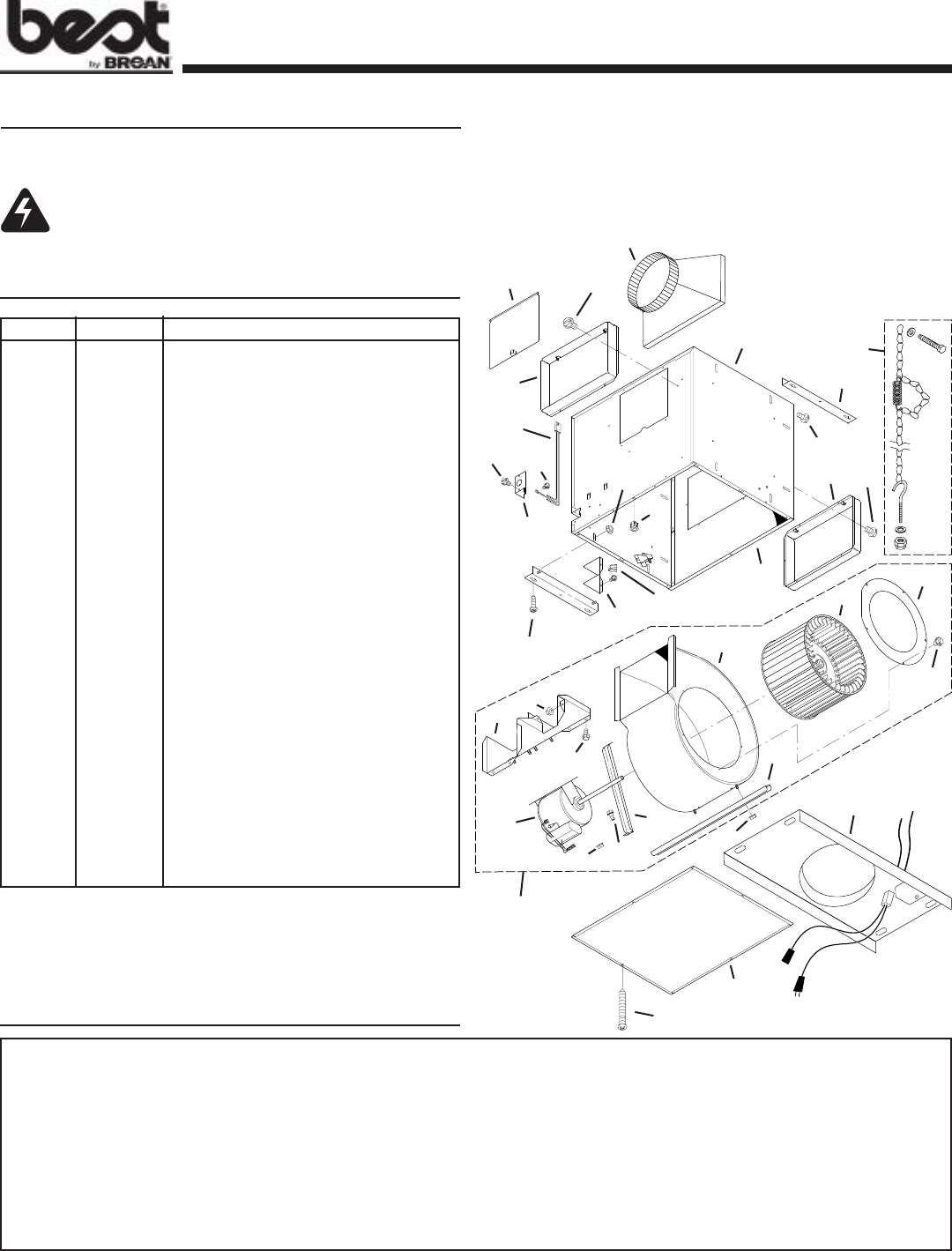

SERVICE PARTS
KEY NO. PART NO. DESCRIPTION
1 97014853 Damper Flap
2 99150415 Screw, #8B x ¼* (16 req.)
3 98009520 Duct Connector (2 req.)
4 97014784 Housing Assembly
5 97014728 Mounting Bracket (2 req.)
6 99150591 Mounting Screw (4 req.)
7 97006142 Wiring Harness
8 99150471 Ground Screw, #10-32 x ½* (2 req.)
9 98005512 Wiring Adapter Plate
10 99420470 Access Panel Nut (4 req.)
11 98009531 Movable Housing Panel
12 93150487 Screw, #10-24 x .375* (8 req.)
13 98005513 Outlet Box Cover
14 99400035 Strain Relief Bushing
15 97014788 Motor Bracket
16 99260477 Whiz Nut, ¼-20* (11 req.)
17 99200202 Screw, ¼-20 x ½* (5 req.)
18 97014785 Blower Scroll
19 99080490 Motor (ILB9)
99080491 Motor (ILB11)
20 93260447 Nut, Hex Flange 5/16-18* (5 req.)
21 98009516 Support Bracket
22 99020286 Blower Wheel
23 98009514 Inlet Ring
24 99150417 Screw, #8-18 x ¼* (5 req.)
25 98009513 Scroll Support Channel
+ 97016796 Blower Assembly Complete (ILB9)
(Includes Key Nos. 15 thru 25)
+ 97016797 Blower Assembly Complete (ILB11)
(Includes Key Nos. 15 thru 25)
26 98009532 Access Cover
27 99150472 Access Cover Screw (4 req.)
28 97016791 Hanger Kit
29 99610015 Transition 8” x 12” to 10” Round (2 req.)
30 97014597 Rough-In Kit
Order replacement parts by PART NO. - not by KEY NO.
* Standard hardware - may be purchased locally.
+ Not shown assembled.
1
2
3
5
6
7
2
8
9
12
10
14
15
16
17
18
21
16
4
13
19
22
20
23
17
25
26
27
3
11
16
24
2
BLOWER
ASSEMBLY
99043703C
WARRANTY
28
WARNING: To reduce the risk of electric shock,
disconnect from power supply before servicing.
To clean blower assembly: Remove access panel, unplug blower
from housing, remove blower mounting nuts, and carefully remove
blower from housing. Use appropriate vacuum attachment or a
soft cloth and mild soap or detergent to clean blower discharge
area and wheel. DO NOT ALLOW WATER TO ENTER MOTOR.
Make sure blower assembly is completely dry before reinstalling.
Motor is permanently lubricated. Do not oil or disassemble motor.
USE AND CARE
Follow wiring instructions packed with range hood, and adhere to
all local and state codes, and the National Electrical Code.
29
30
BROAN ONE YEAR LIMITED WARRANTY
Broan warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND TUBES. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject
to misuse, negligence, accident, improper maintenance or repair (other than by Broan), faulty installation or installation contrary to recommended installation instructions.
The duration of an implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply
to you.
BROAN’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN’S OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN SHALL NOT BE LIABLE FOR
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan at the address or phone number stated below (b) give the model number and part identification and (c) describe the nature of any defect in the product or part.
At the time of requesting warranty service, you must present evidence of the original purchase date.
Best by Broan, P.O. Box 140, Hartford, WI 53027 (1-800-637-1453)
