1. DVD Previous
2. DVD Play
3. DVD Next
4. DVD Eject
5. DVD Stop
6. IR Headphone Sensor
7. TV Antenna Input
8. Headphone Input #1
9. AV Input
10. Power On/Off
11. DVD/TV/AV Switch
12. Picture Select
13. Volume Down
14. Volume Up
15. TV Channel Down
16. TV Auto Program
17. TV Channel Up
18. Surround Sound 3D
19. Headphone Input #2
20. DC 12V Input
21. DVD Video Output
22. DVD Left Audio Output
23. DVD Right Audio Output
24. External Speaker Input

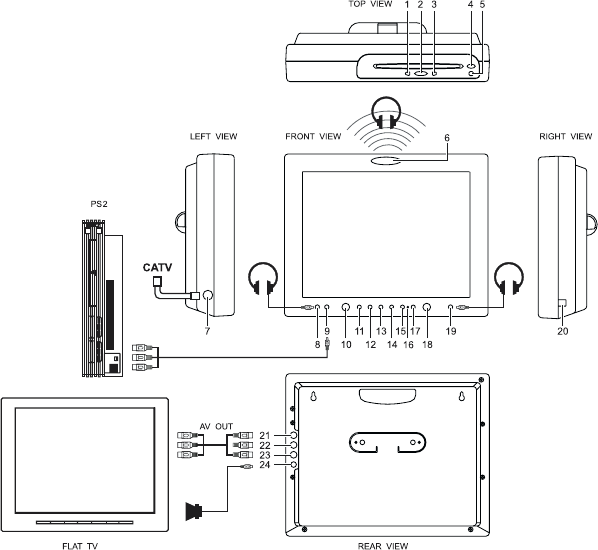

Figure 3
F. Controls/Indicators/Connectors (Refer to Figure 3)
