PART IDENTIFICATION
PART NUMBERS
ITEM 2˝ SQ 2.5˝ SQ DESCRIPTION
1-A 480921 70207 Housing Tube (Tube du vérin)
1-B 480922 70216 Drop Tube (Tube télescopique)
1-C 70269 70269 Bridge Pin (Goupille de pont)
1-D 70008 70008 Foot Pad (Patin)
1-E 70325 70325 Clevis Pin (Goupille d'articulation)
1-F 480952 70215 Ball Detent Pin (Cheville à bille)
1-G 87186 N/S Lock Pin (Goujon de blocage)
MAINTENANCE
1. Before use, inspect drop tube and inner housing
tube. Replace if bent or damaged.
2.
ONCE EACH YEAR:
a. Extend stabilizer as far as possible, clean drop
tube and housing tube. Coat exposed surface of
tubes with silicone spray lubricant.
Should problems or questions arise, contact your
dealer, the trailer manufacturer or Atwood’s Service
Department at 574-264-2131.
OR
G
E
D
B
A
C
F

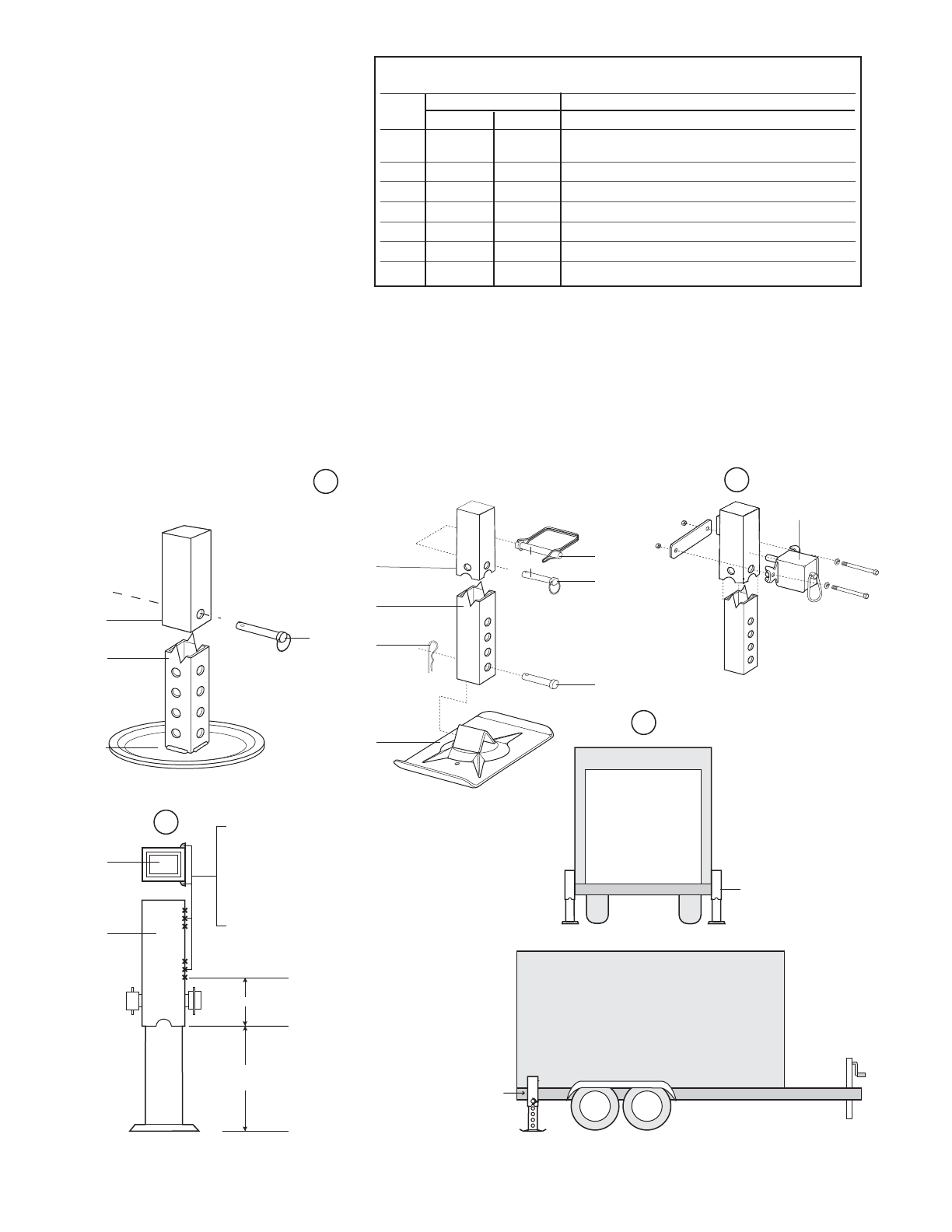

OPTIONAL
Pull Pin
FOR 2.5" SQ ONLY
A
5.0" MAX (12,7 CM MAX)
1.0" RETRACTED (2,5 CM RENTRÉ)
17.0" EXTENDED (43,2 CM SORTI)
• WELD ON TWO SIDES OF
HOUSING TUBE ON STRUCTURAL
ATTACHMENT POINT ON TRAILER
• USE A MINIMUM OF 4.0" OF
WELD TOTAL, ON EACH SIDE
(STICH OR CONTINUOUS)
• SEE WELDING INSTRUCTIONS
A
1
2
3
4
A
A
B
• SOUDER LES DEUX CÔTÉS DU
TUBE TÉLESCOPIQUE AU POINT
D’ATTACHE STRUCTUREL SITUÉ
SUR LA REMORQUE.
• UTILISER UN MINIMUM DE 4,0
PO DE SOUDAGE AU TOTAL, DE
CHAQUE CÔTÉ (ALTERNÉ OU
CONTINU).
• VOIR LES IN
STRUCTIONS DE SOUDAGE
2.0" SQ
2.5" SQ
A
B
F
D
