Analog Line (TN742)
The Analog Line Circuit Pack interfaces eight analog voice terminal lines and the TDM bus.
Figure 3-14 shows the following Analog Line unique circuitry:
Ringing application circuit
Port Input/Output (I/O) circuit
Eight port circuits.
PORT
CIRCUIT
0
ELECTRONIC
CODEC
HYBRID
BATTERY
FEED
OVERVOLTAGE
PROTECTION
T.O
\
NPE 0
NPE 1
R.0
/
ON-BOARD
MICRO-
PROCESSOR
\
POWER
SUPPLY
PORT
I/O
CIRCUIT
RINGING
APPLICATION
CIRCUIT
T.3
PORT
CIRCUIT
3
R.3
T.4
PORT
CIRCUIT
4
R.4
TO
ANALOG
TIP/RING
VOICE
TERMINALS
T.7
PORT
CIRCUIT
R.7
7
/

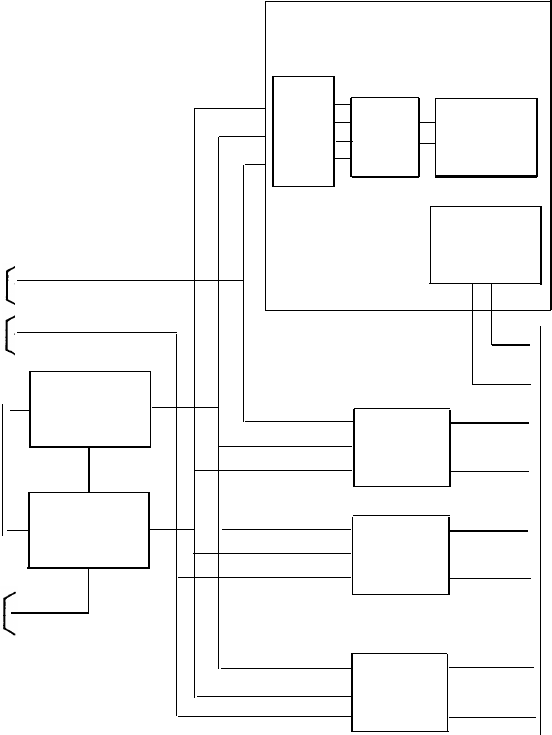

Figure 3-14. Unique Analog Line (TN742) Circuitry
3-28
