Chapter 3 101
Basic Digital Operation
Using Waveform Markers

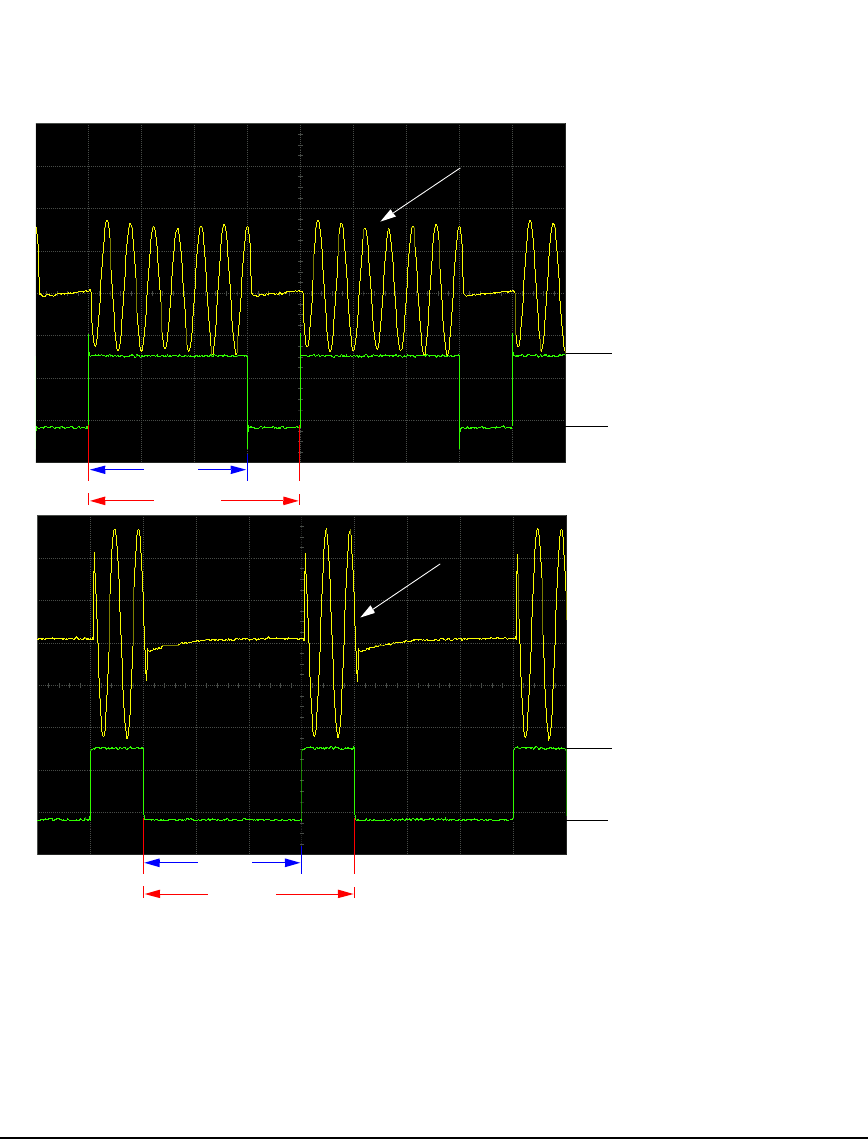

Marker Polarity = Positive
When marker polarity is positive (the
default setting), the RF output is blanked
during the off maker points.
200180
Point 1
Marker
Segment
RF Signal
RF Signal
200
180
Point 1
Marker
Segment
Marker Polarity = Negative
When marker polarity is negative, the
RF output is blanked during the on
maker points
3.3V
0V
3.3V
0V
