036-21335-002-A-1102
12 Unitary Products Group

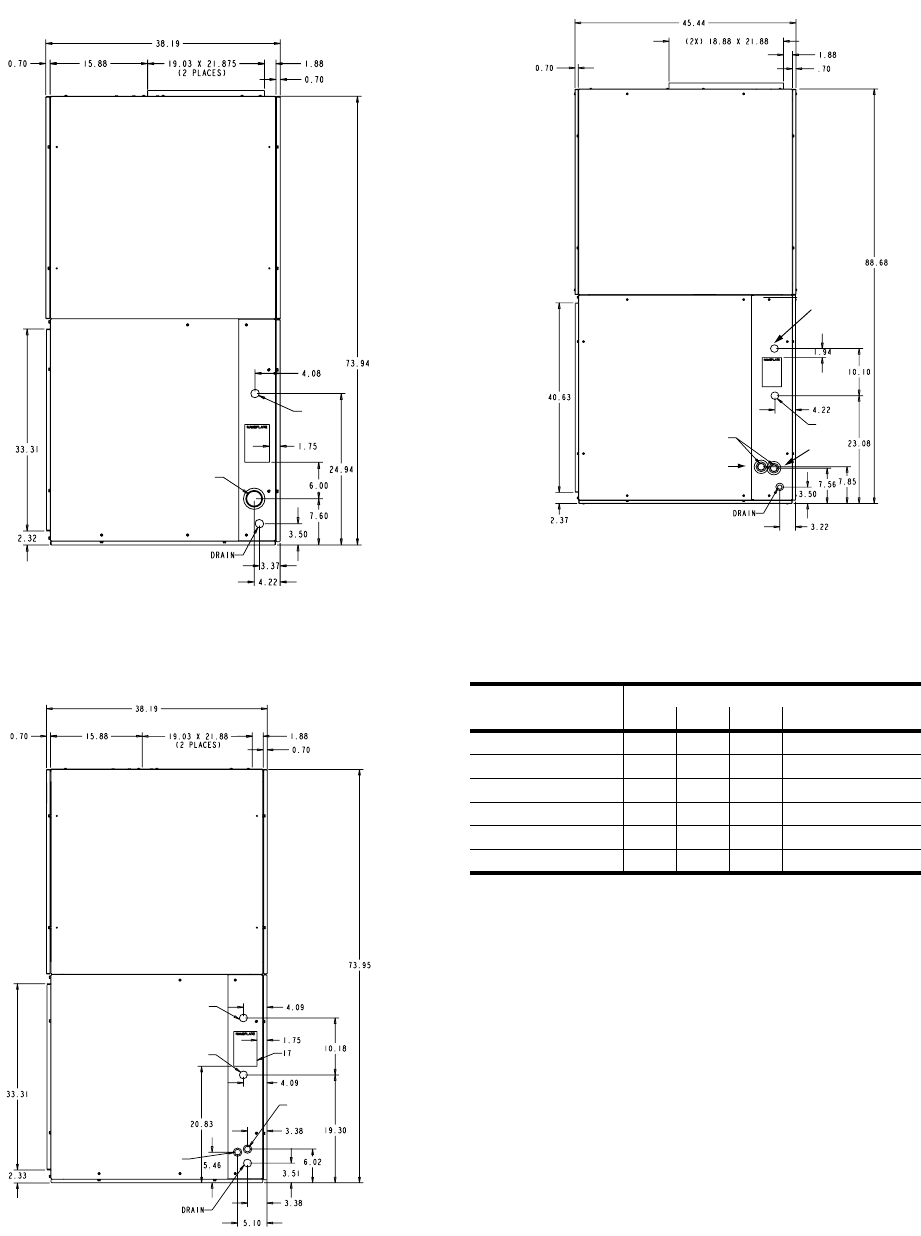

FIGURE 8: LA300 PIPING CONNECTIONS
FIGURE 9: LB360 PIPING CONNECTIONS
SUCTION
LIQUID
LIQUID (SYS. #1)
LIQUID (SYS. #2)
SUCTION
(SYS. #2)
SUCTION
(SYS. #1)
FIGURE 10: LB480 PIPING CONNECTIONS
TABLE 13: UNIT CONNECTION SIZES
Connection Entry
Connection Size
LA300 LB360 LB480 LB600 + M2CX600
Suction Line Sys # 1 2 1/8 1-1/8 1-3/8 2-1/8
Suction Line Sys # 2 N/A 1-1/8 1-3/8 2-1/8
Liquid Line Sys # 1 7/8 7/8 7/8 7/8
Liquid Line Sys # 2 N/A 7/8 7/8 7/8
Power Wiring 7/8 (2) 7/8 (2) 7/8 (2) 1-3/8
Control Wiring 7/8 (2) 7/8 (2) 7/8 (2) 7/8 (2)
LIQUID
SYS. #1
LIQUID
SYS. #2
SYS. #1
SYS. # 2
SUCTION
