Maintenance Instructions REPLACING/REPAIRING
64
REPLACING/REPAIRING
IMPORTANT: ALWAYS use genuine factory re-
placement parts. Substitute parts CAN result in
product malfunction and possible injury to the oper-
ator and/or others.
Drive Belts
There are five (5) individual belts on GHS models
or four (4) belts on SD models:
• Engine PTO Drive Belt (3 Groove Power Band)
• Jackshaft Drive Belt
• GHS Blower Drive Belt (GHS Model Only)
• Hydrostatic Ground Drive Belt
• Engine Fan Belt
The belts may be removed and replaced using the
procedures described on the following pages.
DANGER
To prevent accidental starting of the en-
gine when replacing parts or repairing the
machine, remove the key from the ignition
switch and disconnect the electrical plug
on the fuel shut-off solenoid.
Jackshaft
Drive Belt
Engine
PTO Belt
Engine
Fan Belt
GHS Blower Belt
(GHS Model Only)
Hydrostatic Ground
Drive Belt

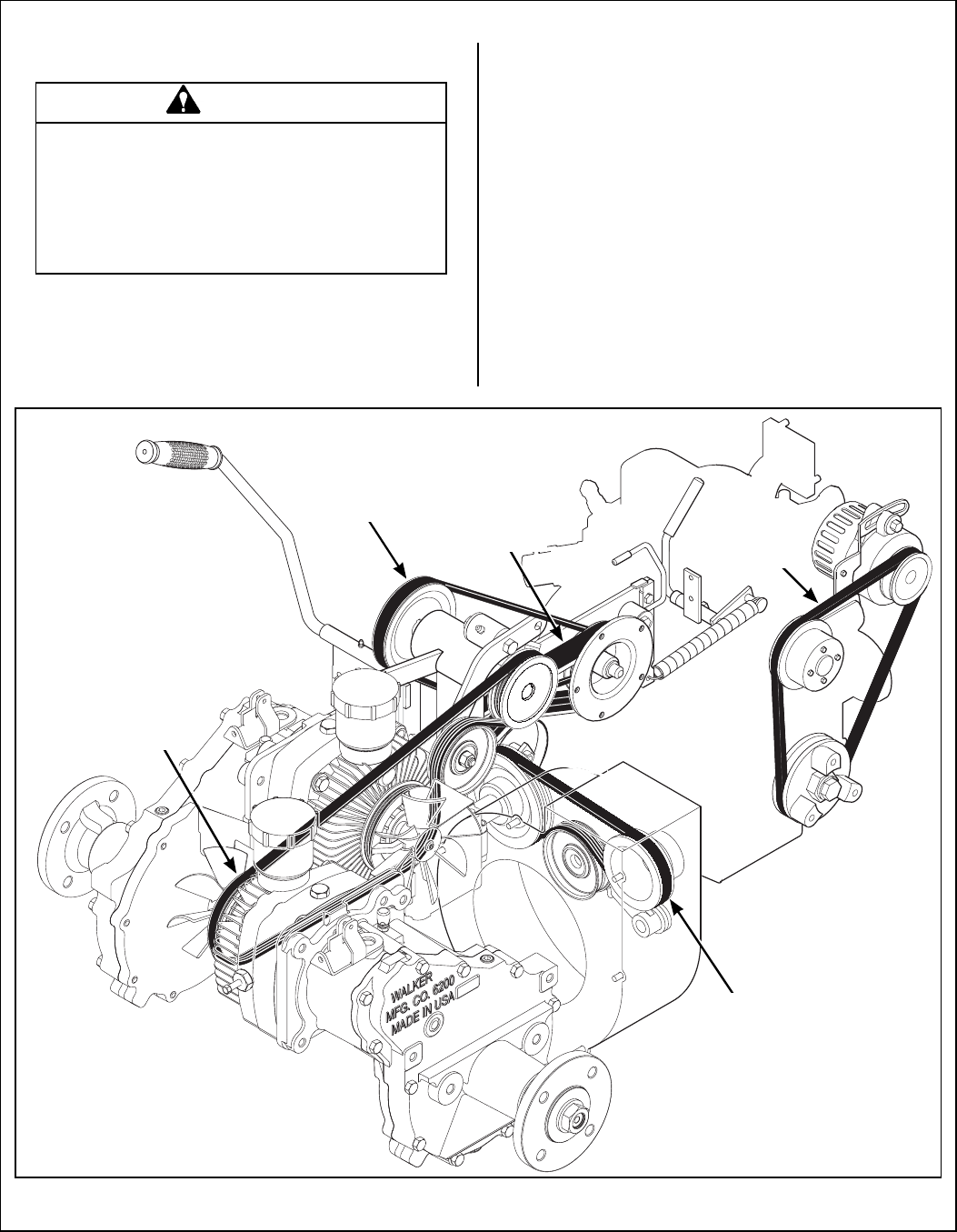

Belt Locations
