Effective Date 04-01-13
Use only genuine Walker
®
replacement parts.
ITEM DESCRIPTION
NO.
ITEM DESCRIPTION
NO.
FASTENER LOCTITE
®
APPLICATION & TORQUE INSTRUCTIONS
HD Gear Drive Assemblies DM42A, DM42B, DM48
1 Apply Loctite
®
Threadlocker # 242 (Blue) to Item # 1 used on
HD Gearbox Connector Tubes. Torque to 115 lb·in.
(13.0 N·m).
DM36 Gear Drive Assembly
2 Apply Loctite
®
Threadlocker # 242 (Blue) to P/N F211
(1/4-20 x 7/8 Hex Bolt, used on Gearbox Connector Tubes)
prior to assembly. Torque to 90 lb·in. (10.2 N·m).
DM Deck Assemblies
3 Torque P/N F018 (5/8-18 Hex Nut) or F404 (5/8-18 Jam Nut,
used on underside of blades) to 60 lb·ft (81.4 N·m). DO NOT
apply Loctite
®
.

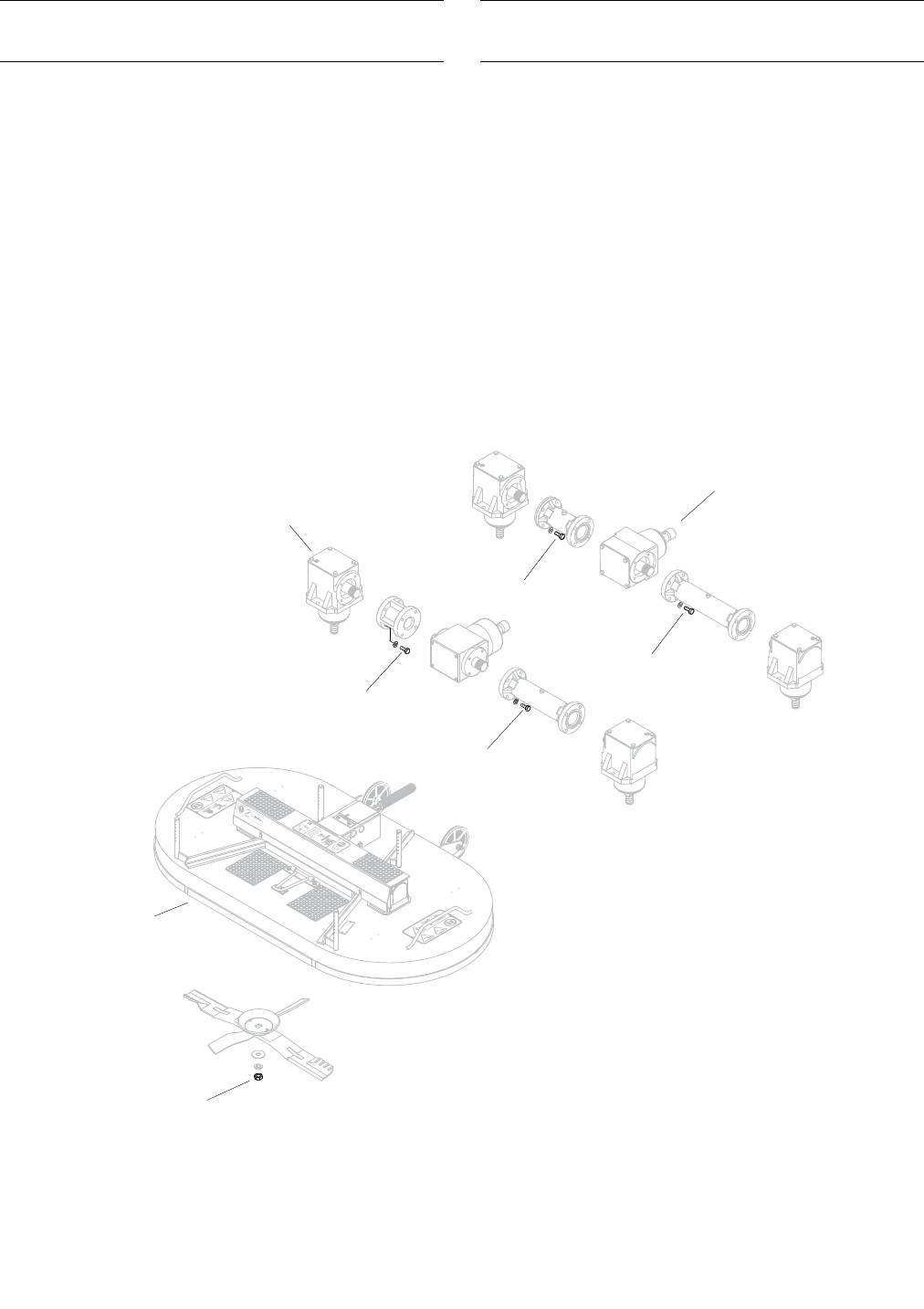

NOTE: Model DM48 is shown here. Refer to individual deck
assemblies for exact locations and quantities of items listed
above.
Refer to
Gear Drive Components
(DM36 Models)
5846-1
8600-28
8600-28
8600-9
60 lb·ft (81 N ·m)
3
DM Deck Assemblies
Refer to HD
Gear Drive Components
(DM42A, DM42B and DM48 Models)
1
2
2
1
