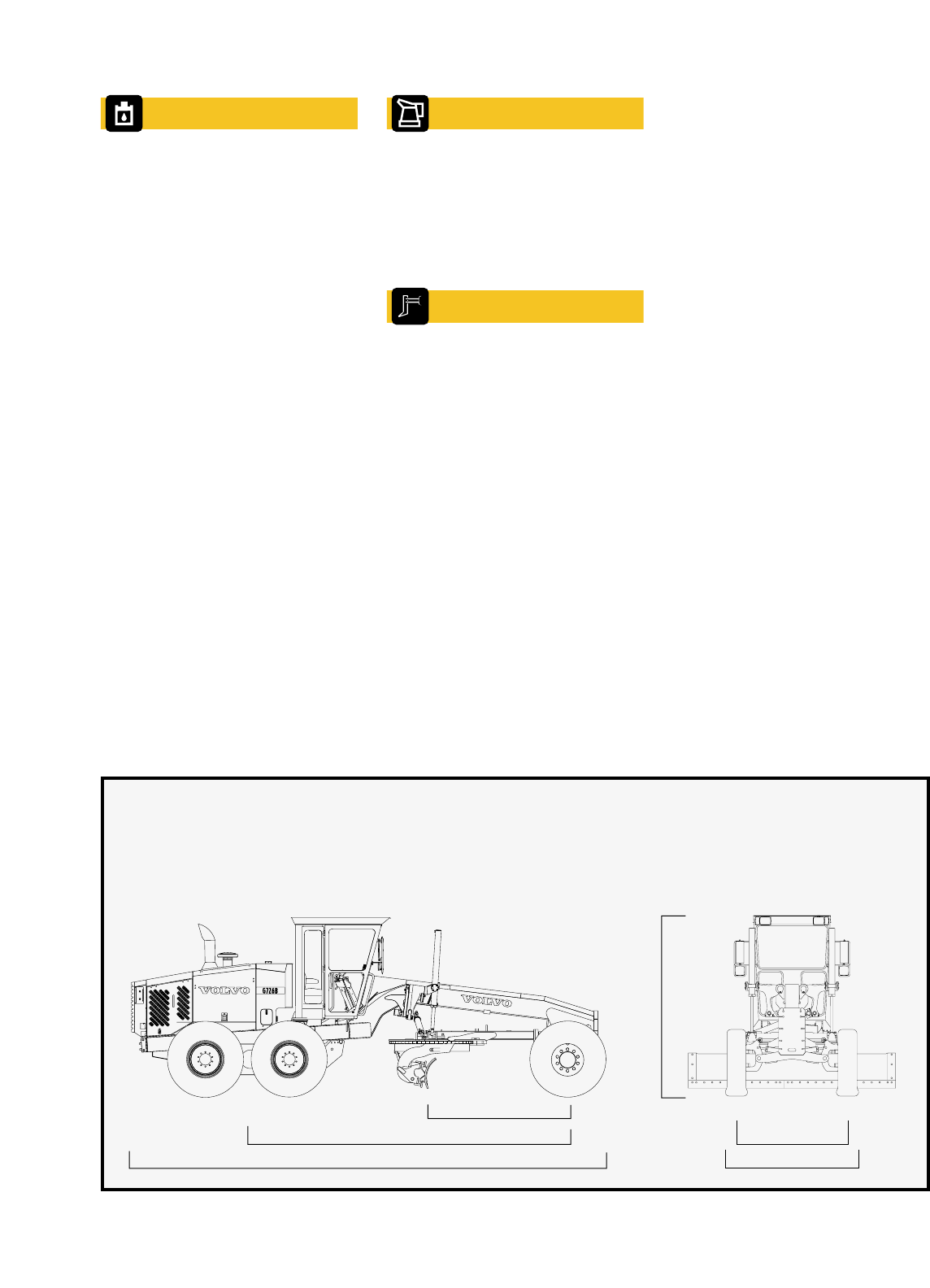

A - OVERALL LENGTH
E - BLADEBASE
D - WHEELBASE
C
O
V
E
R
A
L
L
H
E
I
G
H
T
Dimensions
Load sensing hydraulics
Capacities
Attachments
Closed Center Hydraulic System senses load
requirements and maintains system pressure
350 psi (24 Bar) above the load pressure.
System features industry standard control
arrangement complete with low effort,
feathering type, short throw levers located on a
fully adjustable control pedestal.
System incorporates lock valves to prevent
cylinder drift under load in the following
circuits: blade lift, moldboard tilt, circle shift,
wheel lean and articulation.
Hydraulic system features include axial piston
pump, pressure and flow compensated,
variable displacement with high output for
smooth multi-functioning.
Maximum pressure . . . . . . . . . . 2,700 psi (186 Bar)
Output 2200 RPM. . . . 0-75 U.S. gpm (0-284 lpm)
Filtration . . . . . . . . . . . . . . . . 10 micron spin-on type
B Overall width . . . . . . . . . . 8'4" (2 540 mm)
C Overall height. . . . . . . . . 11'2" (3 404 mm)
• with Low
Profile Cab . . . . . . . . . . . 10'2" (3 099 mm)
F Tread width. . . . . . . . . . . 6'10" (2 083 mm)
A Overall length. . . . . . . . 29'11" (9 119 mm)
D Wheelbase. . . . . . . . . . . 20'0" (6 096 mm)
E Bladebase
• ISO 7134. . . . . . . . . . . . 8'6" (2 591 mm)
U.S.Gal. Imp.Gal. Litres
Fuel tank . . . . . . . . . . 100.0 . . . . . 83.3. . . . . 378.5
Transmission . . . . . . . . 10.0 . . . . . . 8.4. . . . . . 38.0
Final drive. . . . . . . . . . . . 6.0 . . . . . . 5.0. . . . . . 23.0
Tandems (each) . . . . . . 26.4 . . . . . 22.0. . . . . 100.0
Hydraulic oil tank . . . . . 35.4 . . . . . 29.5. . . . . 134.0
Coolant antifreeze protection to
-58º F (-50º C) approx. 12.4 . . . . . 10.3. . . . . . 47.0
Engine oil . . . . . . . . . . . . 5.0 . . . . . . 4.2. . . . . . 19.0
“A” Frame. . . . . . . . . . . . . . . . . . . 700 lb (318 kg)
Snow
Hydraulic Wing
• high-bench. . . . . . . . . . . . . . . 4,800 lb (2 177 kg)
• low bench . . . . . . . . . . . . . . . 4,000 lb (1 814 kg)
One Way Plow. . . . . . . . . . . . . 2,350 lb (1 067 kg)
“V” Snow Plow
• 9' (2 743 mm). . . . . . . . . . . . 2,500 lb (1 134 kg)
• 10' (3 042 mm) . . . . . . . . . . 2,650 lb (1 202 kg)
Earth
Dozer Blade
• 8' (2 438 mm). . . . . . . . . . . . 2,620 lb (1 188 kg)
• 9' (2 743 mm). . . . . . . . . . . . 2,870 lb (1 302 kg)
•10' (3 048 mm) . . . . . . . . . . . 3,120 lb (1 415 kg)
Front Mounted Scarifier. . . . . . 1,780 lb (807 kg)
Mid-mount Scarifier . . . . . . . . . 1,725 lb (782 kg)
Push Block. . . . . . . . . . . . . . . . 1,050 lb (476 kg)
Ripper/Scarifier, rear . . . . . . . . 2,880 lb (1 306 kg)
Windrow Eliminator . . . . . . . . . 1,300 lb (590 kg)
F - TREAD WIDTH
B - OVERALL WIDTH
