Swisher T1360, T1260, T1460 Lawn Mower User Manual



12
28

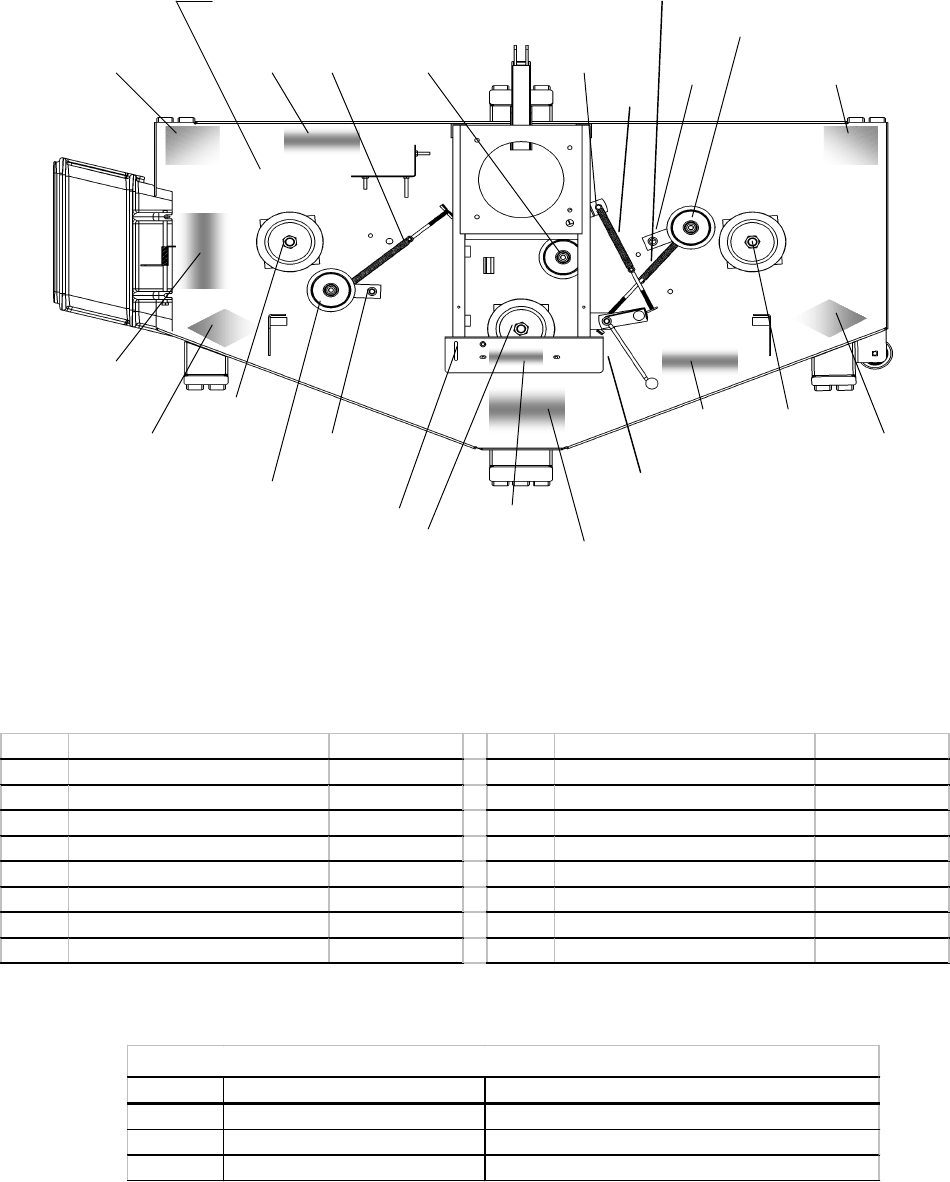

Figure 06
15
15
16
17
18
16
26
21
16
18
19
20
25
24
22
28
LEFT
RIGHT
REAR
FRONT
KEY
SWITCH
2727
14
23
29
29
Item # Description Part # Item # Description Part #
14 Clutch Idler Rod/Spring 3123TK/682S 22 Blade Driver Left 9086
15 Idler Rod/Spring 6704TK/682S 23 Deck 6725C
16 Idler Pulley B527 24 Warning Serious Injury Decal OD45
17 Clutch Idler Arm 6709TK 25 5 MPH Decal OD33
18 Idler Bracket 6681TK 26 Caution - Deflector Decal OD43
19 Throttle Decal OD58 27 60" Decal OD99128
20 Blade Driver Center 9084 28 Danger Triangle Decal OD55
21 Blade Driver Right 9085 29 Danger Decal OD29
Position Part # Replaces
Center 9084 Blade Driver Assembly 6769 Blade Driver Assembly and 9002 Shaft
Right 9085 Blade Driver Assembly 9059 Blade Driver Assembly and 9000 Shaft
Left 9086 Blade Driver Assembly 9059 Blade Driver Assembly and 9001 Shaft
Blade Driver Update
