Generator AC Connection System
A single-phase, three-wire AC connection system is used in
the home generator. The stator assembly consists of a pair
of stationary windings with two leads brought out of each
winding. The junction of leads 22 and 33 forms the neutral

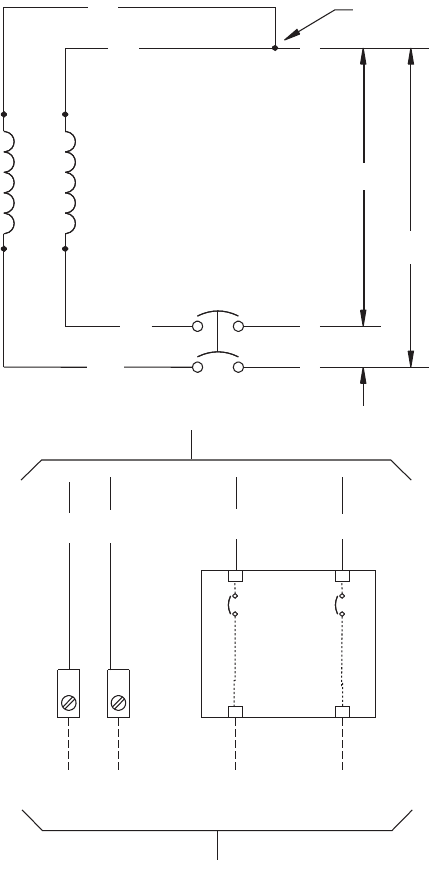

lead, as shown schematically and as a wiring diagram. A
complete schematic and wiring diagram can be found later in
this manual.
NOTICE
Neutral is not bonded to ground at generator.
NOTICE Generator must be used with only an UL approved
transfer switch that is compatible with the generator.
33
240V
11
22
44
120V
120V
1122 440
To Transfer Switch
Power Winding
Ground Neutral
Line 2 Line 1
Neutral
Circuit
Breaker
Circuit
Breaker
