TOOLS REQUIRED: 1/2”, 9/16", and 5/8” sockets and ratchets, block(s) of wood (minimum of 6” tall).
Refer to the parts list on page 9.

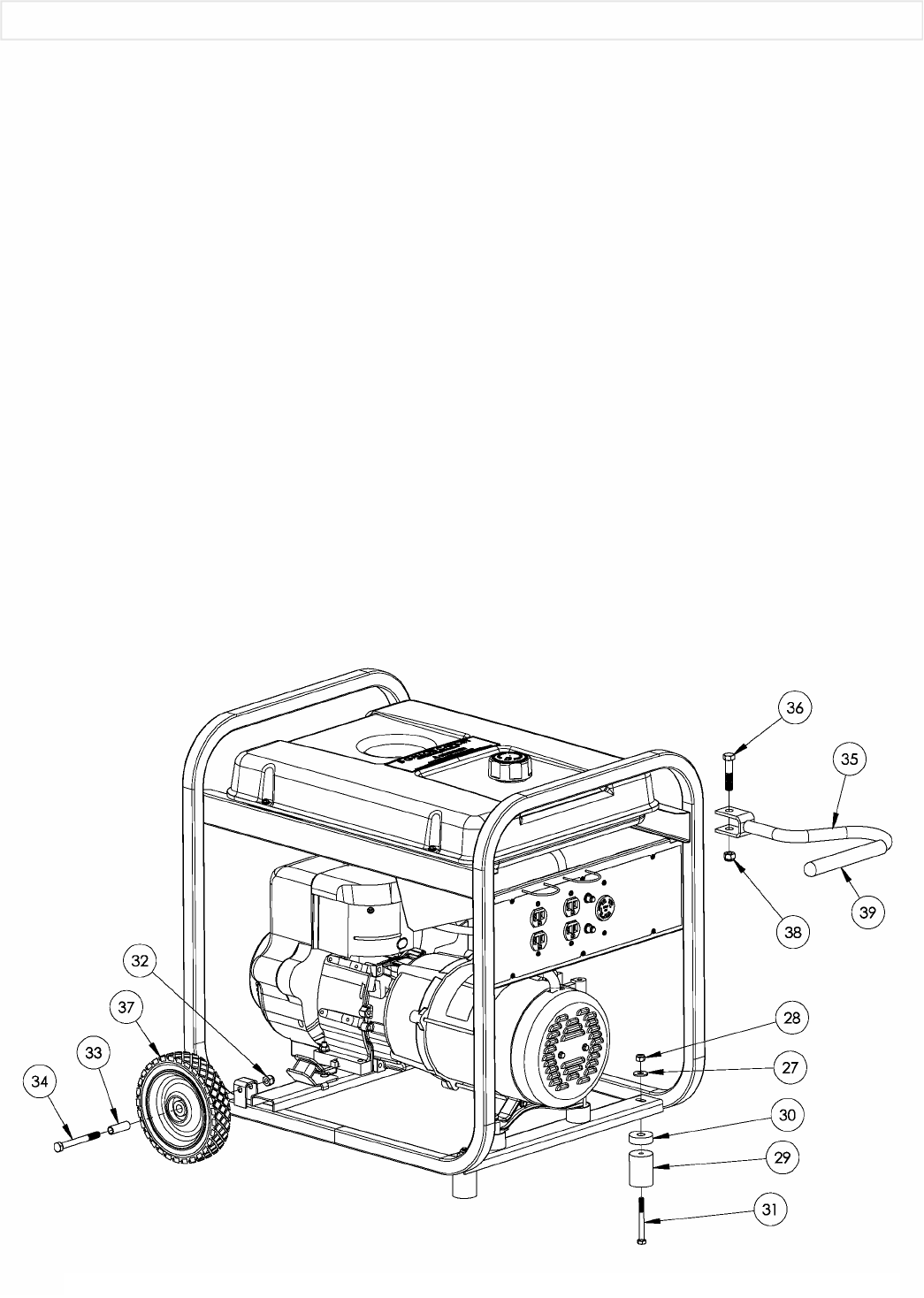

WHEEL INSTALLATION
1.Block up end of generator opposite the fuel tank cap to install wheel kit.
2.Insert wheel spacer (item 33) into the center of the wheel (item 37).
3.Slide 3/8 x 3.5” bolt (item 34) through the wheel (item 37)
, then through the wheel bracket on the carrier, with the offset side of
the wheel hub against the wheel bracket.
4.Thread 3/8 nyloc nut (item 32) onto the bolt and tighten to securely clamp the wheel assembly to the tubing.
5.Repeat above instructions for the remaining wheel.
FOOT INSTALLATION
1.Blocking up the stator side of the generator, place a spacer (item 30) and a foot (item 29) under the carrier channel. Thread
a 5/16-18 x 2.75” bolt (item 31) through the mounting holes and thread a 5/16 washer (item 27) and a 5/16 nyloc nut (item 28)
to the bolt to secure the foot to the carrier. Caution: Do not over tighten so that the foot material collapses.
2.Repeat step 1 for the remaining foot.
HANDLE INSTALLATION
1.Place handle (item 35) over carrier tubing on same end as feet, centering handle on the carrier.
2.Slide 7/16 x 2” bolt (item 36) through handle as shown in diagram and secure with 7/16” nyloc nut (item 38). Tighten until
handle is securely clamped to the carrier tubing.
3.Apply aerosol hairspray or similar adhesive to the handle (item 35), and then slide the handle grip (item 39) onto the
handle. The aerosol hairspray will allow for easier assembly and will adhere the grip to the handle.
NOTE: When using a generator cover with this portability kit, the handle must be moved to the downward position.
PORTABILITY KIT INSTALLATION
3
English
