9
8
6
6
2
1
3
4
5
7
7
10
10
DWG. NO.
SHEET
REV.
DATE

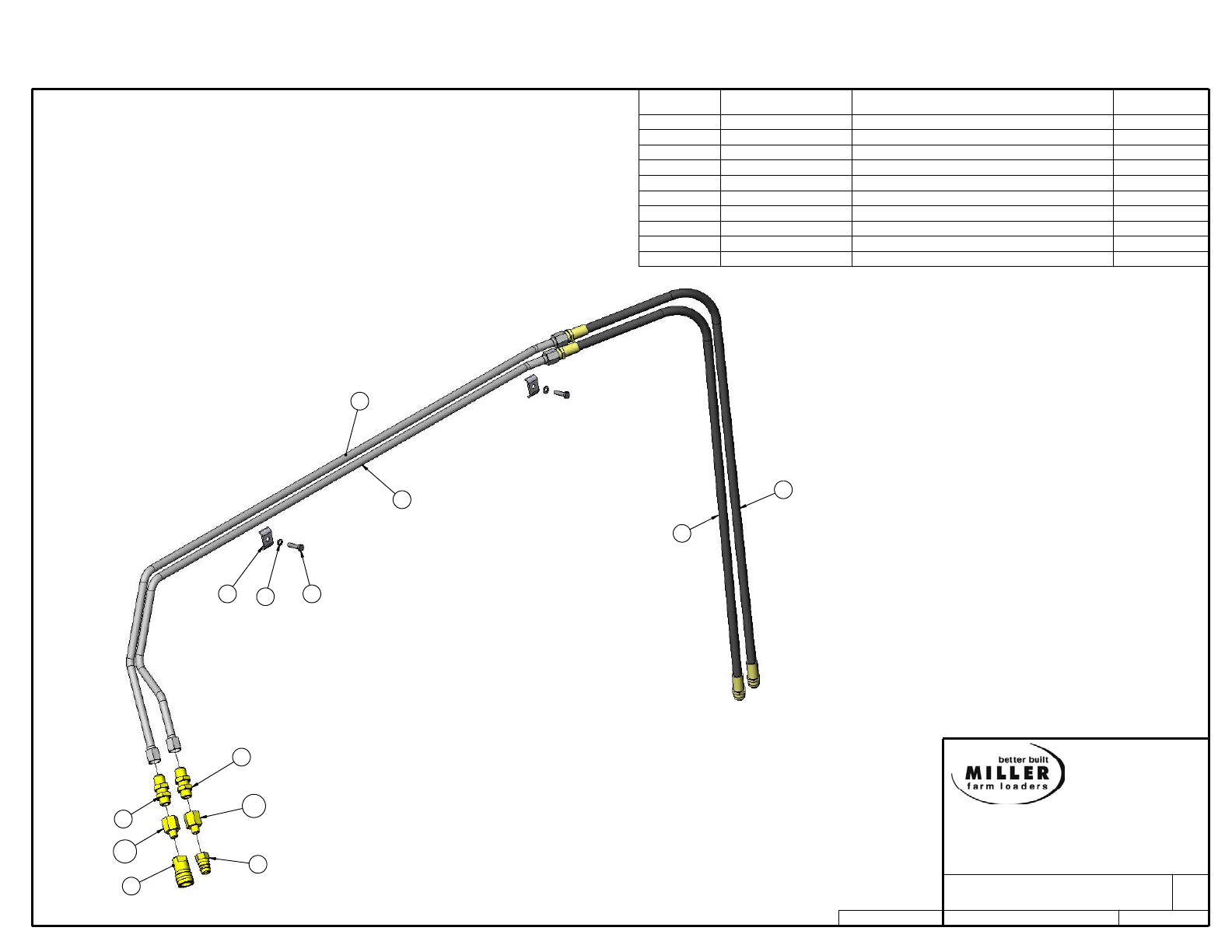

GL/GP25 LOADER
AUX. LINE KIT
OF
1
A
1/16/2005
AU25
1
SCHEMATIC
WEIGHT:
8.494
ITEM NO. PART NUMBER DESCRIPTION Aux kit/QTY.
1
HP25P-GL AUXILLARY FEEDLINE, LOWER
1
2
HP25P-GU AUXILLARY FEEDLINE, UPPER
1
3
PC06X2 PIPE CLAMP
2
4
HW-LS-05-A LOCKWASHER, 5/16, ZN
2
5
HW-BS-05-0125-A BOLT, 5/16-18 UNC, GR5 ZN, 1-1/4" LONG
2
6
SF-2706-LN-10-08 BULKHEAD CONNECTOR, -10 JIC to 1/2 NPT
2
7
HOSE SPECIFY LENGTH REQUIRED
2
8
HA-TP-4050-3 TIP, FEMALE 3/8 NPT (PIONEER 4050-3)
1
9
HA-TP-4010-3 TIP, MALE 3/8 NPT (PIONEER 4010-3)
1
10
SF-5405-06-08 EXPANDING PIPE ADAPTER, 3/8 to 1/2 NPT
2
