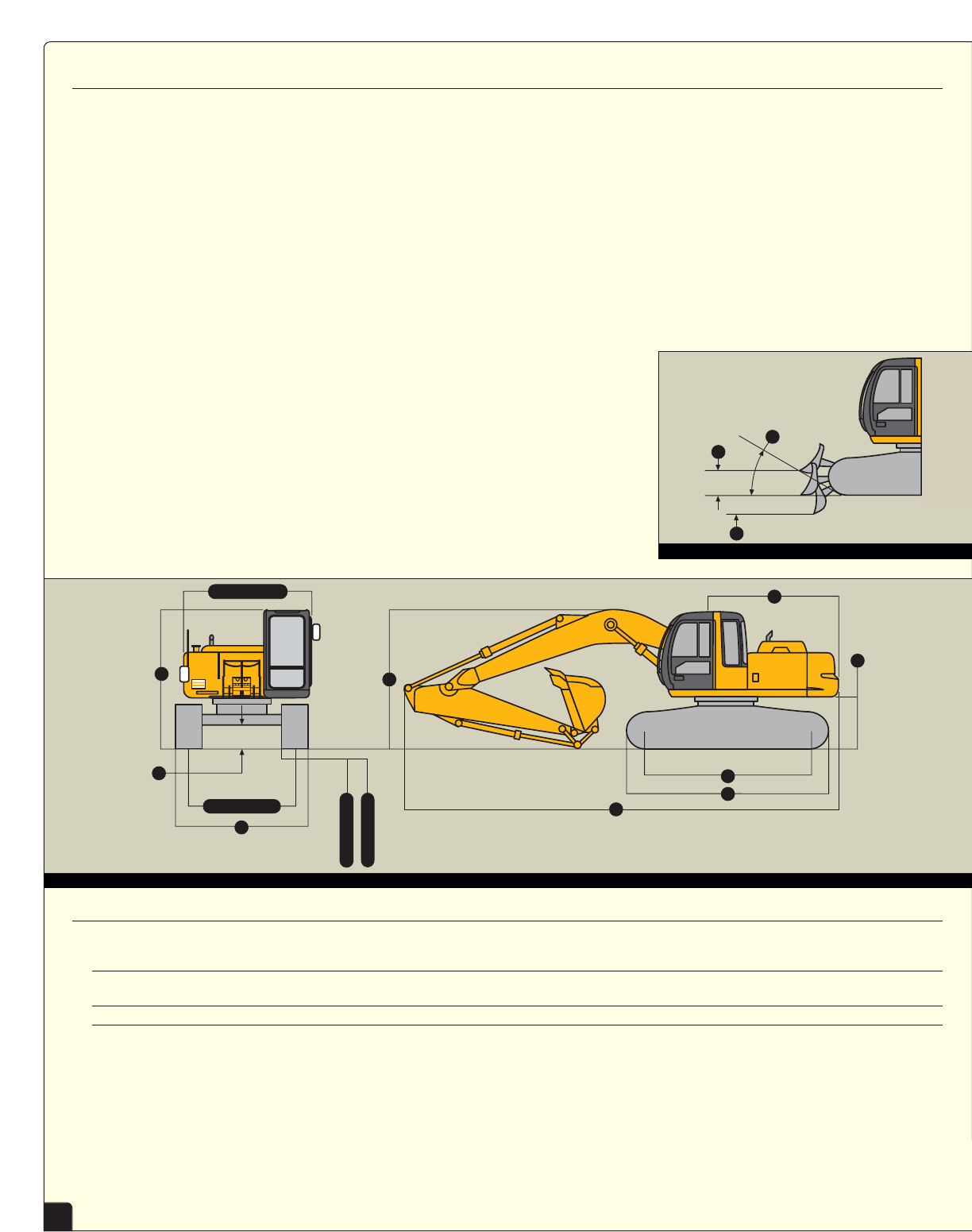

Dimensions 120C 1
6
0C LC
A
With 8-ft. 3-in. (2.52 m) arm..............................25 ft. 0 in.(7.61 m)
With 8-ft. 6-in. (2.60 m) arm..........................................................................28 ft. 0 in.(8.53 m)
With 9-ft. 11-in. (3.01 m) arm............................25 ft. 0 in.(7.62 m)
With 10-ft. 2-in. (3.10 m) arm........................................................................28 ft. 1 in.(8.56 m)
B
With 8-ft. 3-in. (2.52 m) arm..............................8 ft. 10 in.(2.68 m)
With 8-ft. 6-in. (2.60 m) arm..........................................................................9 ft. 5 in.(2.87 m)
With 9-ft. 11-in. (3.01 m) arm*...........................8 ft. 10 in. (2.68 m)
With 10-ft. 2-in. (3.10 m) arm*......................................................................10 ft. 3 in. (3.11 m)
C
With 24-in.(600 mm) triple semi-grouser shoes.....8 ft.6 in. (2.59 m) 8 ft. 6 in. (2.59 m)
With 28-in.(700 mm) triple semi-grouser shoes.....8 ft.10 in. (2.69 m) 8 ft. 10 in. (2.69 m)
With 24-in. (600 mm) rubber crawler pad..........8 ft. 6 in. (2.59 m)
D
Rear-end length/swing radius ............................7 ft. 0 in. (2.13 m) 8 ft. 0 in. (2.44 m)
E
Distance between idler/sprocket centerline........9 ft. 5 in. (2.88 m) 10 ft. 2 in. (3.10 m)
F
Undercarriage length..........................................11 ft. 9 in. (3.58 m) 12 ft. 10 in. (3.92 m)
G
Counterweight clearance....................................2 ft. 11 in.(890 mm) 3 ft. 3 in. (1000 mm)
H
Overall height of cab..........................................9 ft.0 in. (2740 mm) 9 ft.5 in. (2880 mm)
I
Minimum ground clearance................................17 in. (440 mm) 19 in. (470 mm)
J
Blade lift height..................................................15 in.(380 mm)
K
Blade cut below grade .......................................23 in. (580 mm)
L
Blade lift angle...................................................17 degrees
Blade length.......................................................8 ft.2 in. (2.48 m)
Blade height.......................................................25 in.(640 mm)
Blade width
With 24-in. (600 mm) triple semi-grouser
shoes/rubber crawler pad.....................8 ft. 6 in.(2.59 m)
With 28-in. (700 mm) triple semi-
grouser shoes ......................................8 ft. 10 in. (2.69 m)
*Arm pinned in shipping position.
B
A
6 ft. 6 in. (1.99 m)
8 ft. 1 in. (2.46 m)
28 in. (700 mm)
24 in. (600 mm)
C
D
F
E
H
I
G
K
L
J
120C Lift Capacities
Boldface italic
type indicates hydraulic-limited capacities; lightface type indicates stability-limited capacities, in lb. (kg). Ratings at bucket lift hook, machine equipped with 0.79-cu. yd. (0.60 m
3
),
42-in. (1067 mm) wide, 925-lb. (420 kg) bucket; and situated on firm, uniform supporting surface.Total load includes weight of cables, hook,etc. Figures do not exceed 87 percent of hydraulic
capacities or 75 percent of weight needed to tip machine. Ratings are based on SAE J1097.
Load Point 5 ft. (1.52 m) 10 ft. (3.05 m) 15 ft. (4.57 m) 20 ft. (6.10 m) 25 ft. (7.62 m)
Height Over Front Over Side Over Front Over Side Over Front Over Side Over Front Over Side Over Front Over Side
With 8-ft. 3-in. (2.52 m) arm and 24-in. (600 mm) shoes,without blade
20 ft. (6.10 m)
5,717 (2593) 5,717 (2593)
15 ft. (4.57 m)
5,738 (2603) 5,738 (2603) 5,700 (2585)
4,187 (1899)
10 ft. (3.05 m)
7,220 (3275)
6,739 (3057) 6,120 (2776) 4,067 (1845)
5 ft. (1.52 m)
9,476 (4298)
6,177 (2802) 5,876 (2665) 3,840 (1742)
Ground Line
10,024 (4547) 10,024 (4547)
8,970 (4069) 5,721 (2595) 5,647 (2561) 3,628 (1646)
–5 ft. (–1.52 m)
6,914 (3136) 6,914 (3136) 17,858 (8100)
10,632 (4823) 8,747 (3968) 5,522 (2505) 5,525 (2506) 3,515 (1594)
–10 ft. (–3.05 m)
13,809 (6264) 13,809 (6264) 15,529 (7044)
10,802 (4900) 8,777 (3981) 5,549 (2517) 5,589 (2535) 3,574 (1621)
–15 ft. (–4.57 m)
10,539 (4780) 10,539 (4780)
Blade option on 120C only.
