1. Telescope Assembly
1.1. 900X70 Assembly Terms

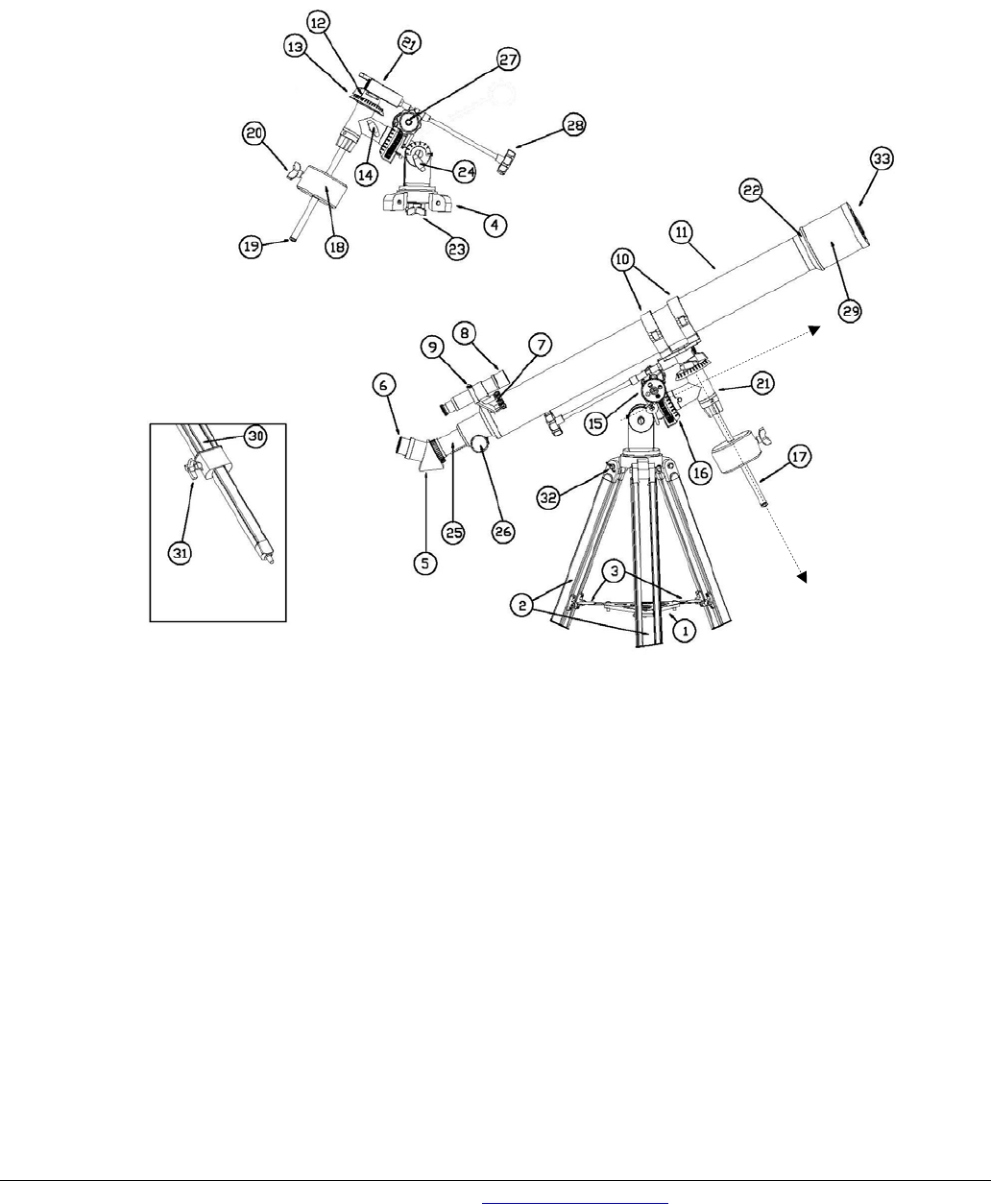

Figure 1. 900X70
(1). Accessory holder tray
(2). Aluminum tripod
(3). Leg lock brackets
(4). Tripod base
(5). Diagonal mirror
(6). Eyepiece
(7). Finderscope bracket
(8). Finderscope
(9). Finderscope collimation screws
(10). Scope mounting ring
(11). Main optical tube
(12). Declination locking knob
(13). Declination setting circle
(14). Right ascension locking knob
(15). Right ascension gear
(16). Right ascension setting circle
(17). Counterweight shaft
(18). Counterweight
(19). Counterweight safety washer
(20). Counterweight locking knob
(21). Equatorial mount head
(22). Lens cell
(23). Azimuth adjustment knob
(24). Latitude adjustment knob
(25). Eyepiece holder tube
(26). Focusing knob
(27). Right ascension control cable
(28). Declination control cable
(29). Sunshade
(30). Sliding inner tripod leg extension
(31). Leg extension locking knob
(32). Tripod leg bolts
(33). Front lens dust cap
DEC Axis
RA Axis
