Installation
Warning: Before Installation, disconnect negative battery cable then disconnect the posi-
tive battery cable, in that order.
Warning: Whenever drilling, be sure that the drill will not damage any wires, tubes or com-
ponents on either side of the member being drilled. Plan for your installation so units will
be located conveniently and wires will be routed out of the way of any other components.
Plan to fill all drilled holes with sealant to prevent water intrusion or rust.
Lamp Installation:1. Fasten the Off Road Light to your vehicle. Adjust angle of lamp as
desired. Connect the ground wire from the light to a clean grounded piece of metal on the
vehicle frame.
Install switch (not included) in passenger compartment. 2. Connect the blue wire (with
inline 5A fuse holder) to the switch and to the positive battery terminal. Attach one appro-
priately-sized red wire to the switch. Carefully route two more wires from the other positive

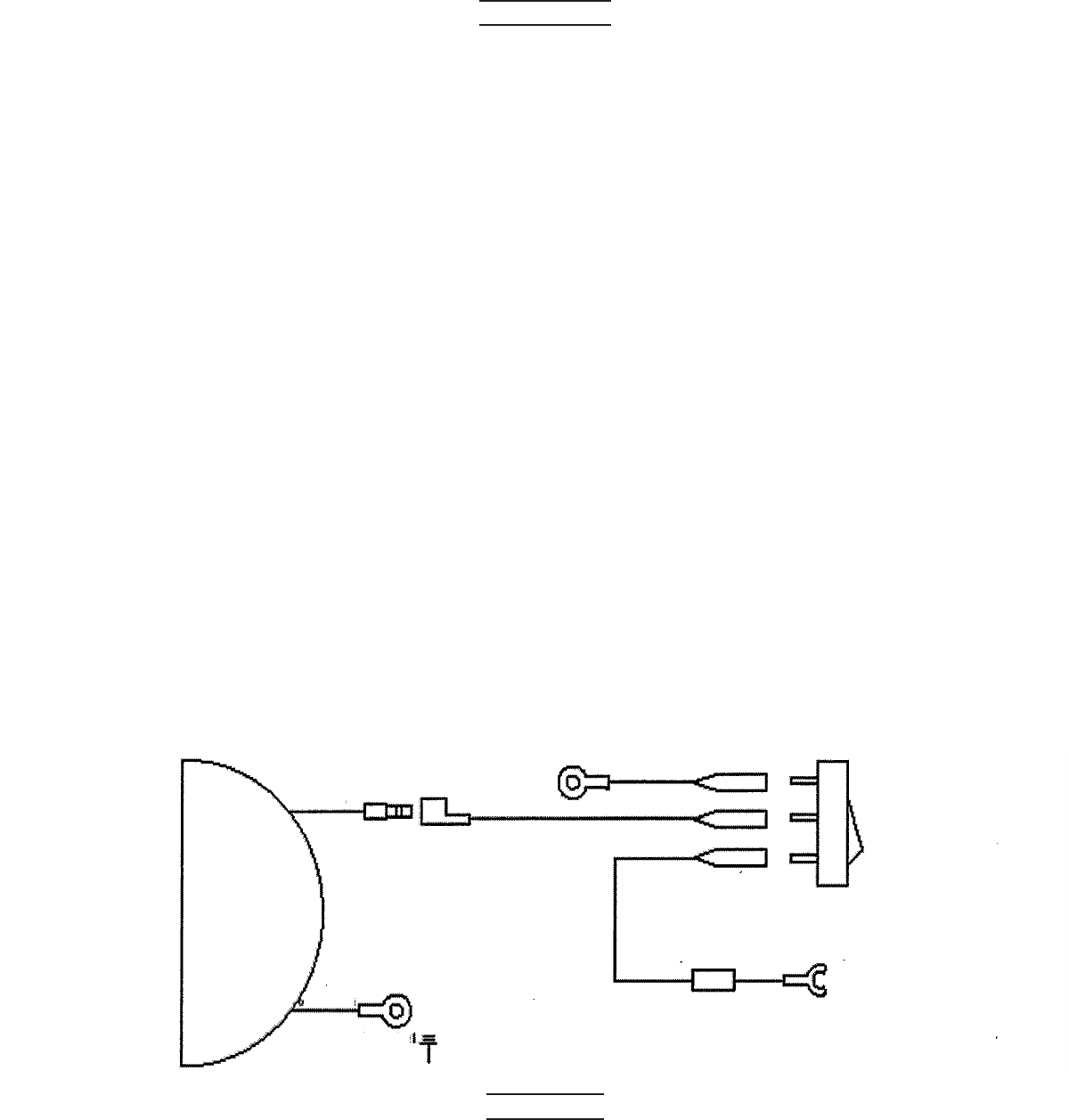

terminal on the switch to the lights. See the diagram below.
WARNING: Do not damage any cables, hoses or components when installing any com-
ponent of this kit. Take care not to route wires where they may get tangled, pinched, cut,
burned or otherwise damaged by the operation of the engine or movement of the car.
Connect positive wires from the light switches to the lights.1.
CAUTION: Do not reverse polarity, as that will damage unit.
Reconnect the vehicle positive battery cable. Test lights.1.
Be sure the Off-Road Lights, ballasts and switch are firmly attached and will not come loose 2.
during normal driving or a sudden stop.
Periodically check the Off-road Lights to be sure they remain in place. Make any adjust-3.
ments as needed.
Operation
With the vehicle running, turn on the HID Light using the Switch (not included). 1.
Switch
(not included)
Blue wire
Red Wire
Black Wire
Connects to
ground (-)
Red Wire
Black Wire connects
to negative (-) vehicle
battery terminal
5A Fuse
Connect to
Positive (+)
Vehicle battery
Terminal
