SKU 56072 For technical questions, please call 1-800-444-3353. Page 13

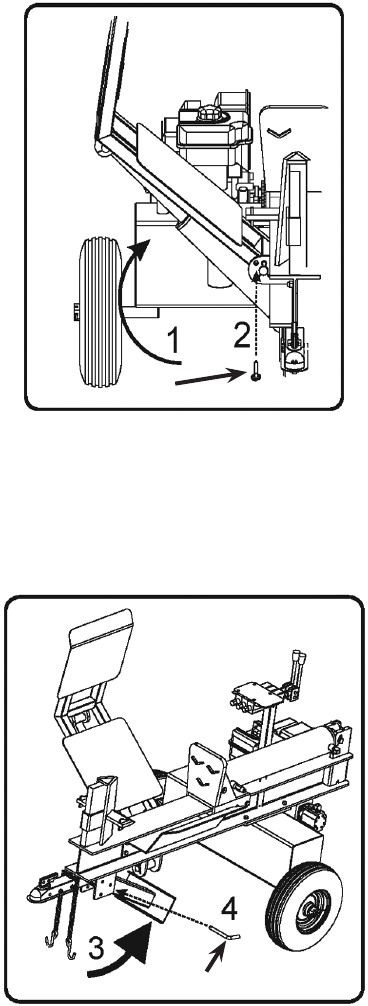

Figure H
Clevis Pin (74)
3. Raise the Log Lift and insert the
Clevis Pin (74) in the upper hole and
secure with R-pin (41) - See Figure
H.
Figure I
Push Pin (42)
4. Move the front leg up and secure it at
the second Pin hole. Insert the Push
Pin (42) to lock in place - See Figure
I.
Do not drive faster than 55 MPH 5.
when the Log Splitter is connected to
the vehicle.
Do not tow the Log Splitter on roads 6.
or highways. This product is not
D.O.T. compliant, and is not road
legal.
Before transporting, and at 500 mile 7.
intervals during every trip, check and
tighten the Tire Lug Nuts to 85 - 90
Ft.-Lbs.
Every 2,000 to 3,000 miles of travel, 8.
lubricate the Hub Assemblies with a
heavy weight bearing grease. Follow
the Packing the Bearings Instructions
on page 7 of this manual. After each
Hub Assembly is reassembled,
tighten the Castle Nuts to 20-25 ft.
pounds, and rotate each tire several
turns to seat the bearing. Back off the
Castle Nut one half turn.
Insert a new Cotter Pin (53) through 9.
the Castle Nut and the hole in the
axle. Bend the Pin back, locking it
and the Nut in place.
