Specications
• Mounting: Hinged to tilt up for access to
hydraulic pumps, battery and other components.
Held in tilted position with prop rod. Adjustable
fore and aft seat track.
• Armrests:
– Standard seat: foam padded ip-up armrests.
– Optional suspension seat: molded adjustable
ip-up armrests.
• Seat Safety Switch: Incorporated into the
Safety Interlock System. Time delay seat switch
eliminates rough ground cut-outs.

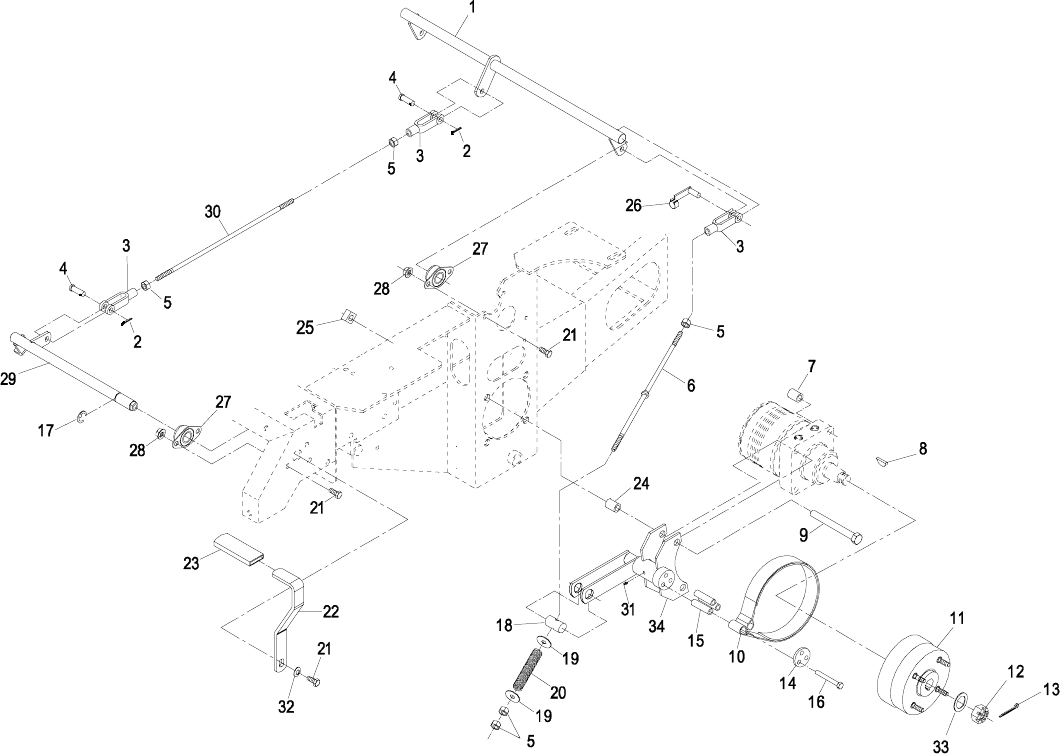

Hydrostatic Ground Drive System
• Hydrostatic Pumps: Two Hydro Gear variable
displacement piston pumps.
• Wheel Motors: Two Parker with 1 1/4 inch
tapered shafts.
• Hydraulic Oil Type: Use Mobil 1 15W-50
Synthetic motor oil.
• Hydraulic Oil Capacity: 2.1 qt. (2.0 L)
• Hydraulic Filter: Replaceable cartridge type.
– Summer use above 32°F (0°C)
P/N 109-4180: 25 microns, 10 psi bypass
– Winter use below 32°F (0°C)
P/N 1-523541: 40 microns, 18 psi bypass
• Speeds:
– 0-9.5 mph (15.3 km/hr) forward.
– 0-5.5 mph (8.9 km/hr) reverse.
• Drive wheel release valves allow machine to be
moved when engine is not running.
Tires & Wheels
Drive
Pneumatic (Air-Filled)
Model Number LHP19KA465*;
LHP19KA465CA;
LHP23KA465;
LHP23KA505;
LHP23KA565;
LHP27KC505;
LHP27KC505R;
LHP27KC565
LHP19KA465**
Quantity
2 2
Tread
“Multi Trac C/S”
Turf Master
Size 24 x 9.50-12 23 x 9.50-12
Ply Rating
4 4
Pressure
13 psi (90 kPa) 13 psi (90 kPa)
Front Caster
Semi-Pneumatic Pneumatic
(Air-Filled)
Model Number LHP19KA465*;
LHP19KA465CA;
LHP23KA465;
LHP23KA505;
LHP23KA565;
LHP27KC505;
LHP27KC505R;
LHP27KC565
LHP19KA465**
Quantity
2 2
Tread
Smooth Smooth
Size 13 x 5.00-6 13 x 5.00-6
Ply Rating
4
Pressure
13 psi (90 kPa)
*For serial numbers 739052 and Lower
**For serial numbers 739053 and Higher
Cutting Deck
• Cutting Width:
– 46 inch Deck: 46 inches (116.8 cm)
– 50 inch Deck: 50 inches (127.0 cm)
– 56 inch Deck: 56 inches (142.2 cm)
• Discharge: Side
• Blade Size: (3 ea.)
15
