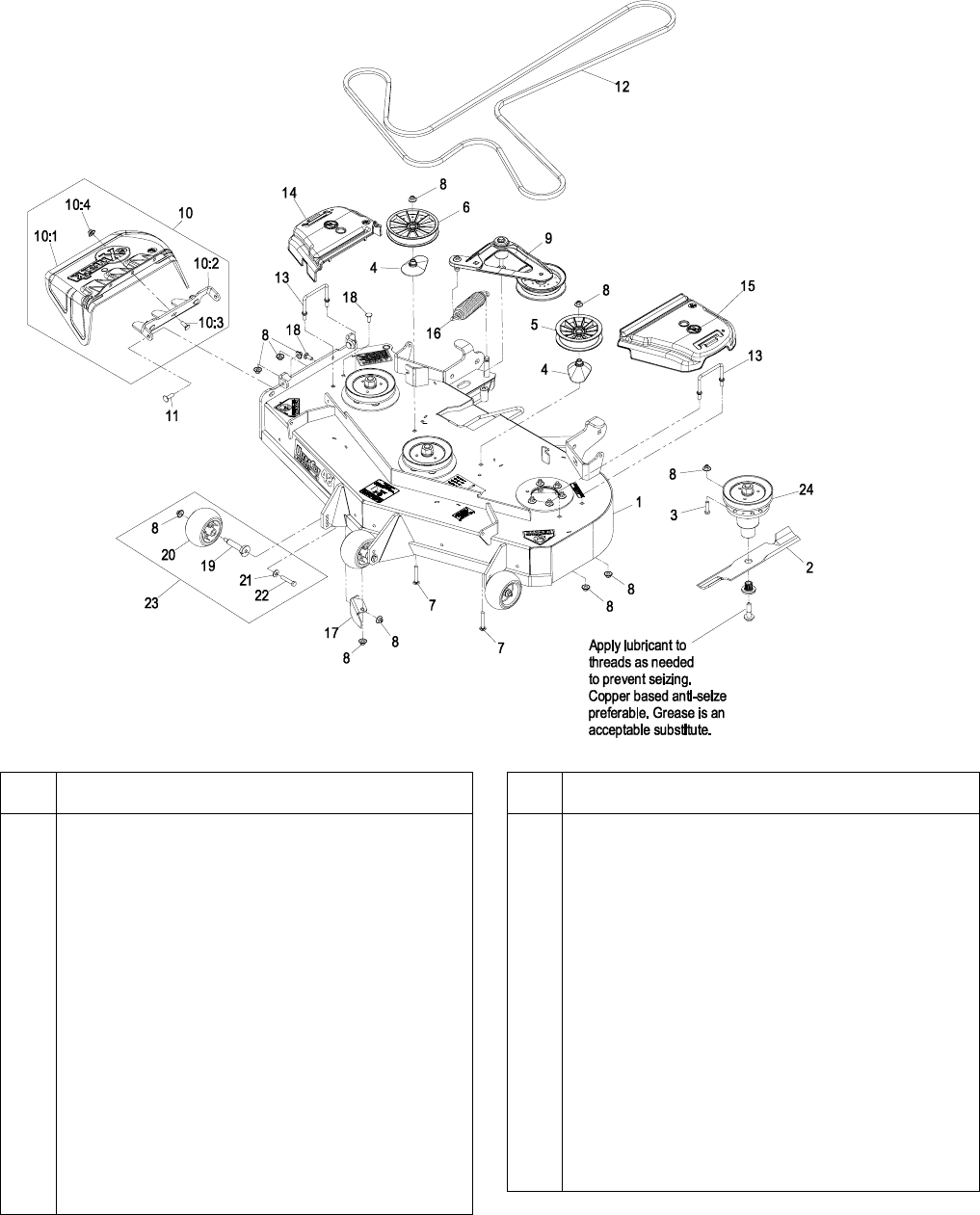

48” DECK GROUP
-3-
Item Part No. Description Qty.
1 109-9027 Asm, Deck W/Decals 484..................... 1
2 103-6401 Blade-Notched...................................... 3
O
103-6391 Blade, Mulching.................................... 3
103-6386 Blade, Low Lift...................................... 3
103-6381 Blade, Solid.......................................... 3
103-6396 Blade, Extreme..................................... 3
3 323-8 Screw, HH 3/8-16 x 1 1/2......................18
4 109-2872 Spacer-Pulley....................................... 2
5 109-0977 Pulley, Idler 5" ...................................... 1
6 109-2796 Pulley, Idler 6" ...................................... 1
7 3231-44 Bolt, Carriage 3/8-16 x 2 1/2................. 2
8 109-6658 Nut, Nyloc 3/8-16 Flg............................31
9 109-2883 Asm, Deck Idler.................................... 1
10 109-7188 Asm, Discharge Chute.......................... 1
10:1 109-2738 Chute, Discharge.................................. 1
10:2 109-8675-01 Bracket, Discharge Chute..................... 1
10:3 3231-22 Bolt, Carriage 3/8-16 x 1....................... 3
Item Part No. Description Qty.
10:4 109-6658 Nut, Nyloc 3/8-16 Flg............................ 3
11 3231-28 Bolt, Carriage 3/8-16 x 1 1/4................. 2
12 109-8070 Belt, V-B X 175.75................................ 1
13 109-6982 Wireform, Cover................................... 2
14 109-6935 Cover, Belt RH 46-56........................... 1
15 109-6936 Cover, Belt LH 46-56............................ 1
16 116-0133 Extension-Spring.................................. 1
17 109-9010-01 Baffle, Discharge.................................. 1
18 3231-22 Bolt, Carriage 3/8-16 x 1....................... 2
19 109-9851 Axle, Anti-Scalp Roller.......................... 3
20 1-603299 Roller-Scalp, Anti ................................. 3
21 98-5975 Washer, Spring Disc 3/8 ...................... 3
22 3211-46 Screw, HH 3/8-24 x 2 Gr8 .................... 3
23 103-7263 Kit, Antiscalp Roller.............................. 3
24 109-9017 Kit, Cutter Housing 48.......................... 3
25 109-9642 Asm, Deck Complete 484 .................... 1
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).
O Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK484.
Q Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles and bearings. DO NOT use a
copper or nickel based anti-seize.
