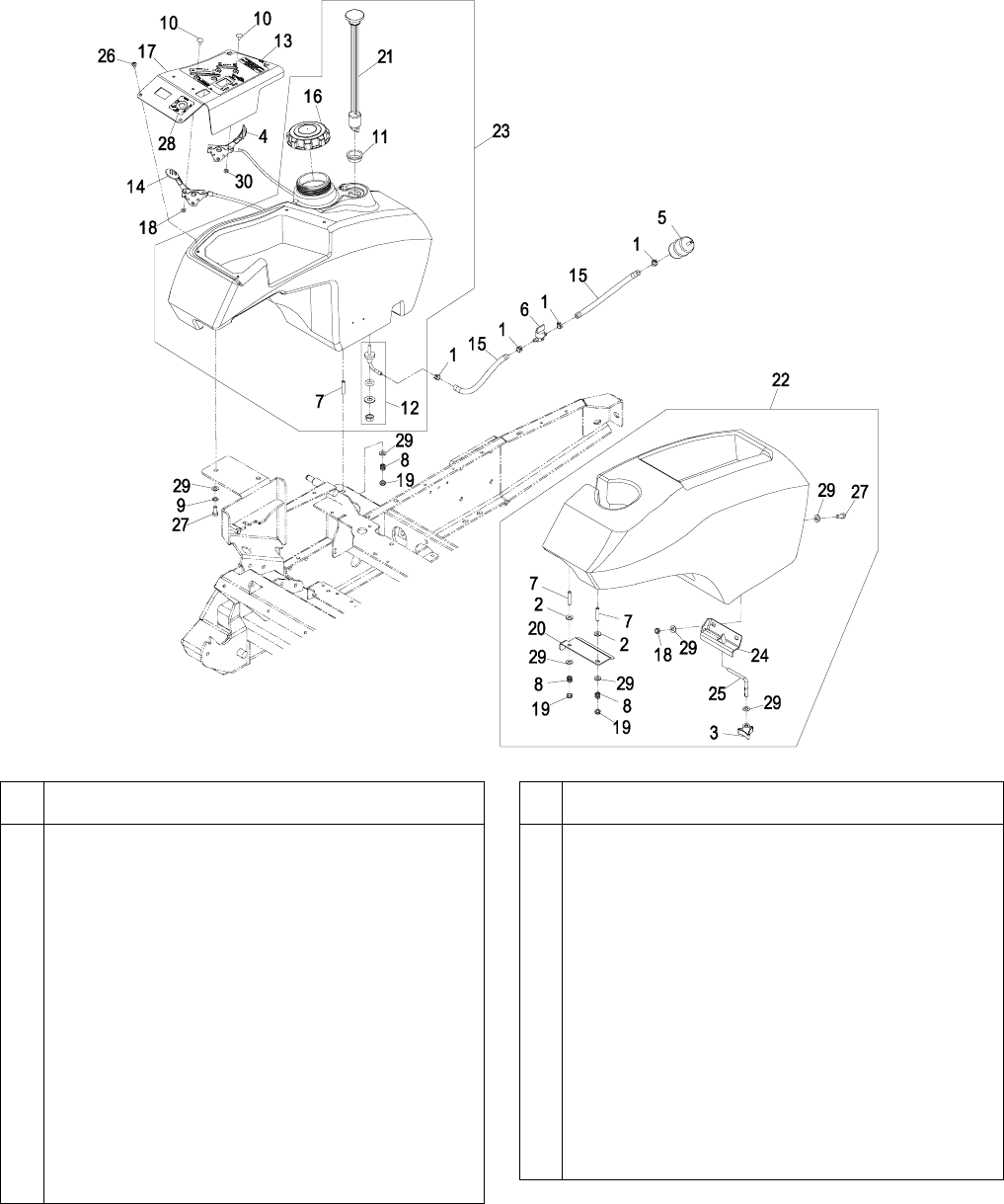

FUEL GROUP
11
Item
Part No.
Description
Qty.
1 1-303077 Clamp, Fuel Line....................................4
2 1-303334 Washer, Spring Disc 5/16 ......................2
3 1-323385 Knob, 3 Prong........................................1
4 109-7416 Control, Choke.......................................1
5
Kohler
Part No. 2405010 Fuel Filter ..................1
Briggs
Part No. 695327 Fuel Filter....................1
6 1-603770 Valve, Fuel.............................................1
7Q 1-633023 Stud, Fuel Tank .....................................4
8 1-633349 Spring, Compression .............................4
9 1-805005 Washer, Lock 5/16 Heavy......................2
10 1-807513 Bolt, Carriage #10-24 x 1/2 ....................4
11 95-8972 Grommet................................................1
12V 103-2605 Fitting, Fuel Bulkhead W/Strainer ..........1
103-2784 O-Ring ...................................................1
13 109-7413 Decal, Console ......................................1
14 109-7415 Control, Throttle .....................................2
Item
Part No.
Description
Qty.
15 109-0303 Hose, Fuel Line 7" ................................. 2
16 109-0346 Cap, Fuel (Gas)..................................... 1
17 109-4714 Console ................................................. 1
18 3296-2 Nut, Nyloc #10-24.................................. 4
19 3296-47 Nut, Nyloc 5/16-18 Thin......................... 6
20 109-1202 Hook, Fender......................................... 1
21 109-1213 Gauge, Fuel........................................... 1
22 109-1226 Asm, Fender..........................................1
23 109-3627 Asm, Fuel Tank ..................................... 1
24 109-2572 Bracket, Fender..................................... 1
25 109-2652 Bolt, Fender...........................................1
26X 109-2661 Screw, PPH #10-24 x 1/2....................... 4
27 322-3 Screw, HH 5/16-18 x 3/4........................4
28 109-2358 Decal, Ignition........................................ 1
29 3256-23 Washer, 5/16 SAE................................. 11
Exmark black touch up spray paint – Gloss black
Q Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads, item #7 going into the tank.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on fuel fitting, item #11.
Refer to Engine Owner’s Manual (Fuel Filter Must be 15 Micron or smaller).
X Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.
