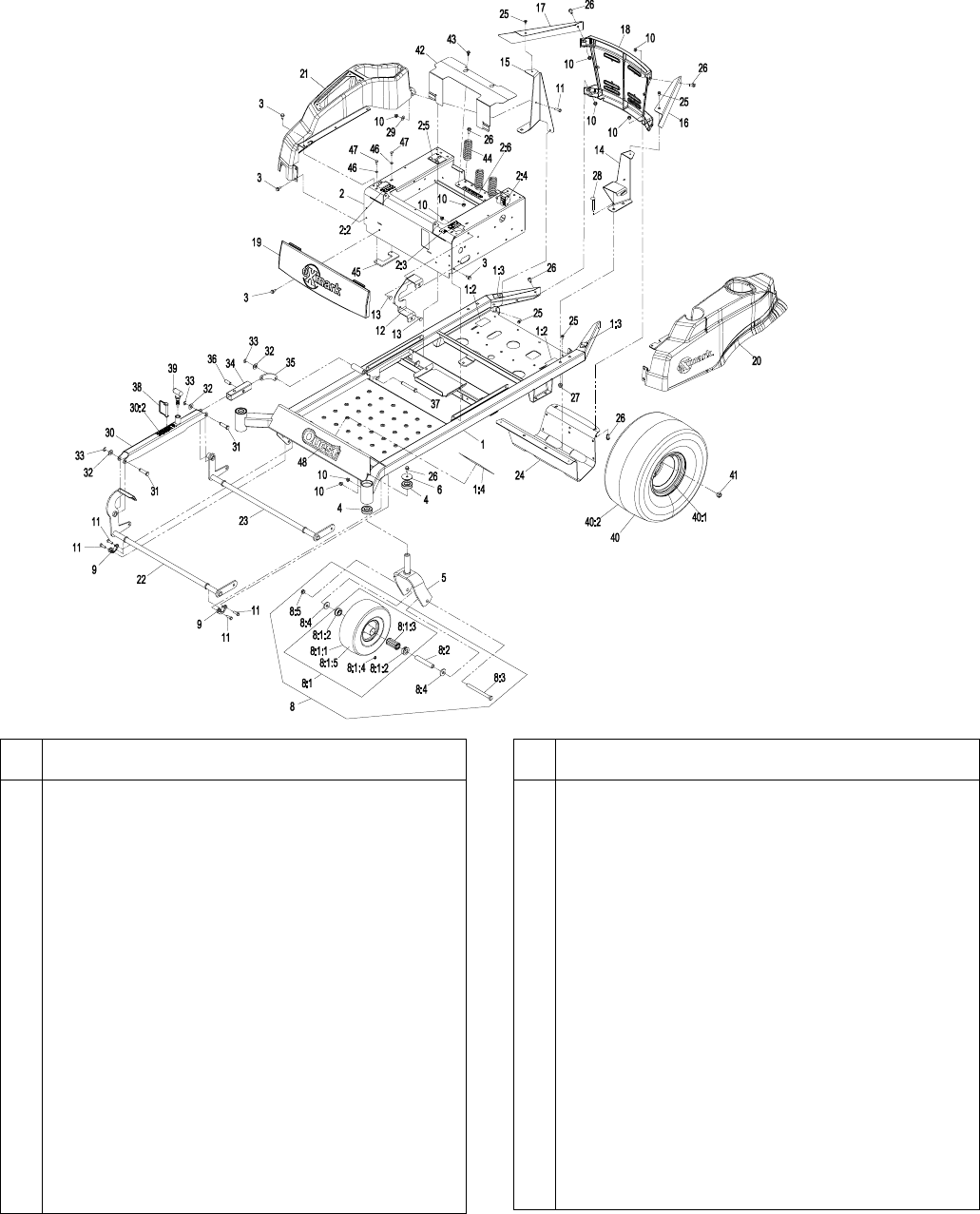

FRAME GROUP
-8-
Item
Part No.
Description
Qty.
1 109-8825 Asm, Frame W/ Decal............................1
1:2 109-6008 Decal, Drive Release .............................2
1:3 106-5517 Decal, Surface, Hot................................2
1:4 109-8965 Decal, Safety Warning ...........................1
2 109-8845 Asm, Seat Box W/ Decals ......................1
2:2 109-9182 Decal, Control, Motion............................1
2:3 109-9173 Decal, Control/Brake..............................1
2:4 109-9120 Decal, Fuse Block..................................1
2:5 109-6014 Decal, Belt Routing ................................1
2:6 109-6210 Decal, Danger........................................1
3 32144-70 Screw, HWH 5/16-18 x 3/4 TF................16
4 109-3678 Bearing, Ball ..........................................4
5 109-6218-01 Wld, Caster Fork....................................2
6 109-3724 Washer ..................................................2
8 109-6405 Asm, Caster Wheel ................................2
8:1 105-1863 Asm, Caster Wheel W/Bearings .............1
8:1:1 105-1864 Tire ........................................................1
8:1:2 62-5580 Bearing ..................................................2
8:1:3 83-4740 Bearing ..................................................1
Item
Part No.
Description
Qty.
8:1:4 302-5 Zerk 1/4-28 Str Thrd Forming................. 1
8:1:5 93-4244 Tube, Inner............................................ 1
8:2 104-3667 Spanner, Wheel..................................... 1
8:3 325-20 Screw, HH 1/2-13 x 6............................. 1
8:4 92-2651 Washer.................................................. 2
8:5 3296-45 Nut, Nyloc 1/2-13 Thin........................... 1
9 109-3667 Bearing, Flange..................................... 4
10 104-8300 Nut, Nyloc 5/16-18 Flg........................... 21
11 322-5 Screw, HH 5/16-18 x 1........................... 10
12 109-6045-03 Bracket, Tank Mount.............................. 1
13 3230-23 Bolt, Carriage 5/16-18 x 3/4, Short Neck. 2
14 109-6867-01 Bracket, Rear Tank (LH)........................ 1
15 109-3406-01 Bracket, Rear Console (RH) .................. 1
16 109-3381-01 Guard, Engine (LH)................................ 1
17 109-3391-01 Guard, Engine (RH)............................... 1
18 109-5363-01 Casting, Rear ........................................ 1
19 109-3709 Panel, Front........................................... 1
20 109-3707 Fender, Exmark (LH)............................. 1
21 109-3708 Fender, Exmark (RH)............................. 1
Exmark black touch up spray paint – gloss black.
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
