20
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder ns.
5. Use brush to remove dirt from the cylinder ns.
6. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
7. Assemble components in reverse order.
e x h a u s t s y s t e m

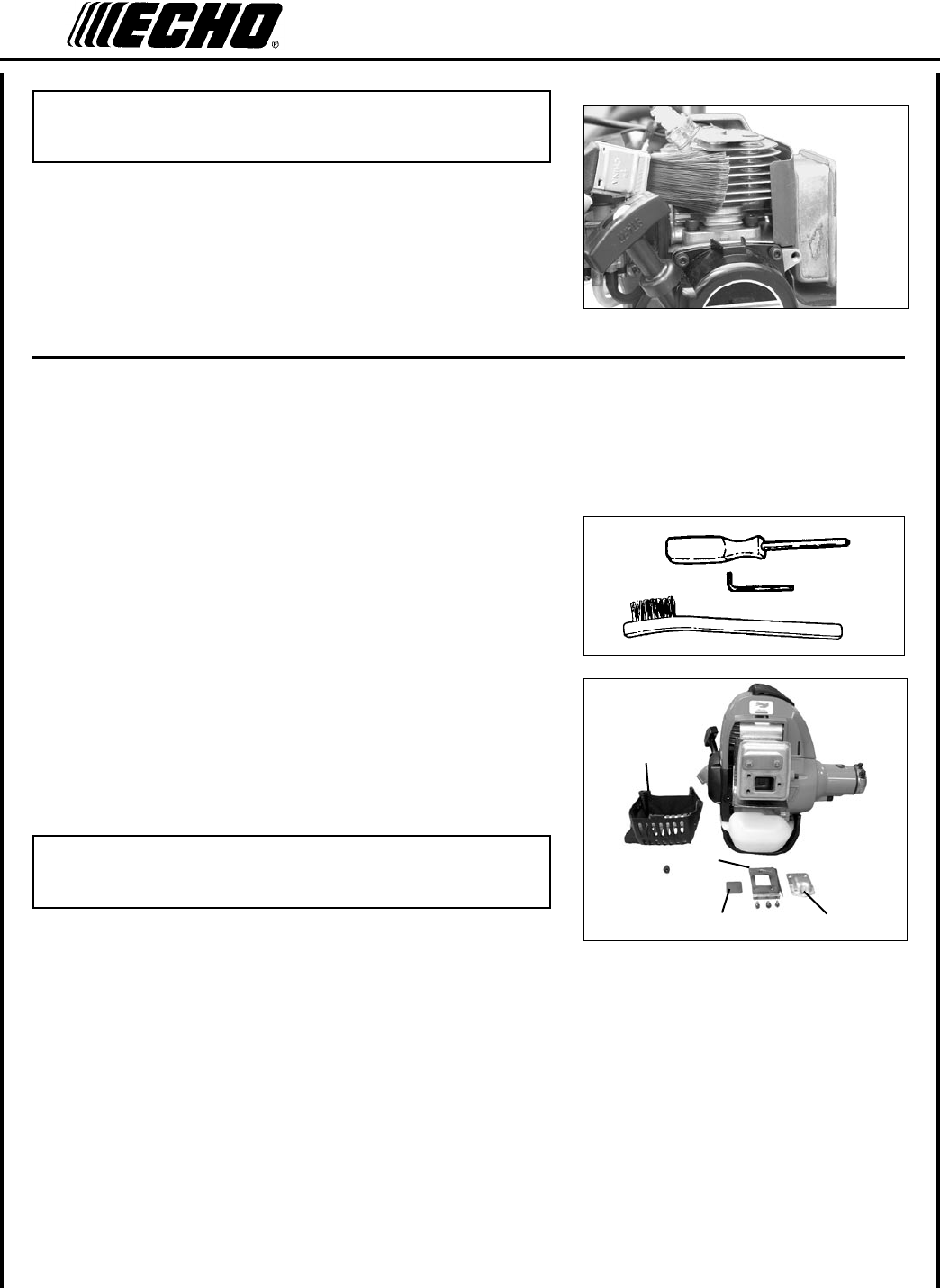

Spark Arrestor Screen
Level 2.
Tools Required: Cross Head Screwdriver, 4mm Hex Wrench, Soft
Metal Brush
Parts Required: Spark Arrestor Screen, Gasket
1. Remove mufer cover screw and mufer cover (A).
2. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from
entering cylinder.
3. Remove spark arrestor screen (B), gasket (C) and exhaust guide
(D) from mufer body.
4. Clean carbon deposits from mufer components.
NOTE
When cleaning carbon deposit, be careful not to damage the cata-
lytic element inside mufer.
5. Replace screen if it is cracked, plugged or has holes burned
through.
6. Assemble components in reverse order.
B
C
D
A
