Specification, Wayfarer
Doc-1477 Rev-B
Rev Date: 4/6/07
Wayfarer Specifications
Dimension One Spas
Wayfarer
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” (45.7 cm) clearances on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details.

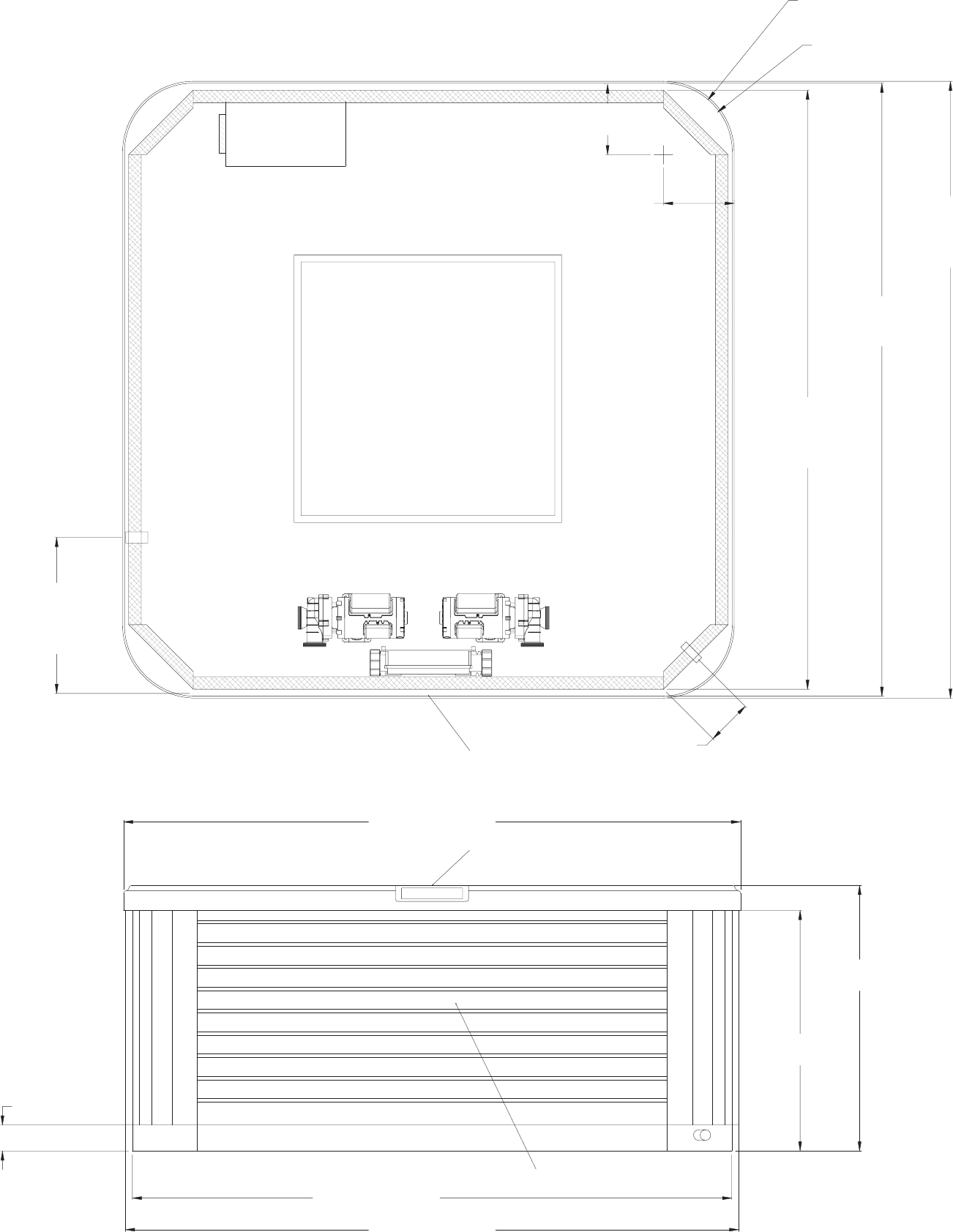

Top View of Spa
THE EDGES OF SPA BASE.
SUPPORTED CONSISTENT WITH
ON BOTTOM OF SPA, TO BE
THIS 3 FOOT SQUARE AREA,
R9 in [R23 cm]
Skirt Corner
81 in [205 cm]
Pedestal
Base
83 in [211 cm]
Shell
See Caution
R10 in [R24 cm]
Spa Shell
21 in [53 cm]
Electrical
Inlet
6 in [16 cm]
Hose Bib/
Water Drain
82 1/2"
Skirt
10 in [24 cm]
10 in [24 cm]
Control Panel
Front of Spa
83 in [211 cm]
Spa Lip
Pedestal Base
36 in [91 cm]
32 in [82 cm]
81 in [205 cm]
Door Extends
Under Spa Lip
83 in [210 cm]
Front View of Spa
Control Panel
3 1/2 in [9 cm]
Page 2 of 2
Architectural Specification
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
SUBWOOFER
(optional)
