Note: 1. Subject to change without notice.
Specification, 2005, Triad II
Doc-1215 Rev -B
Rev Date: 1/31/05

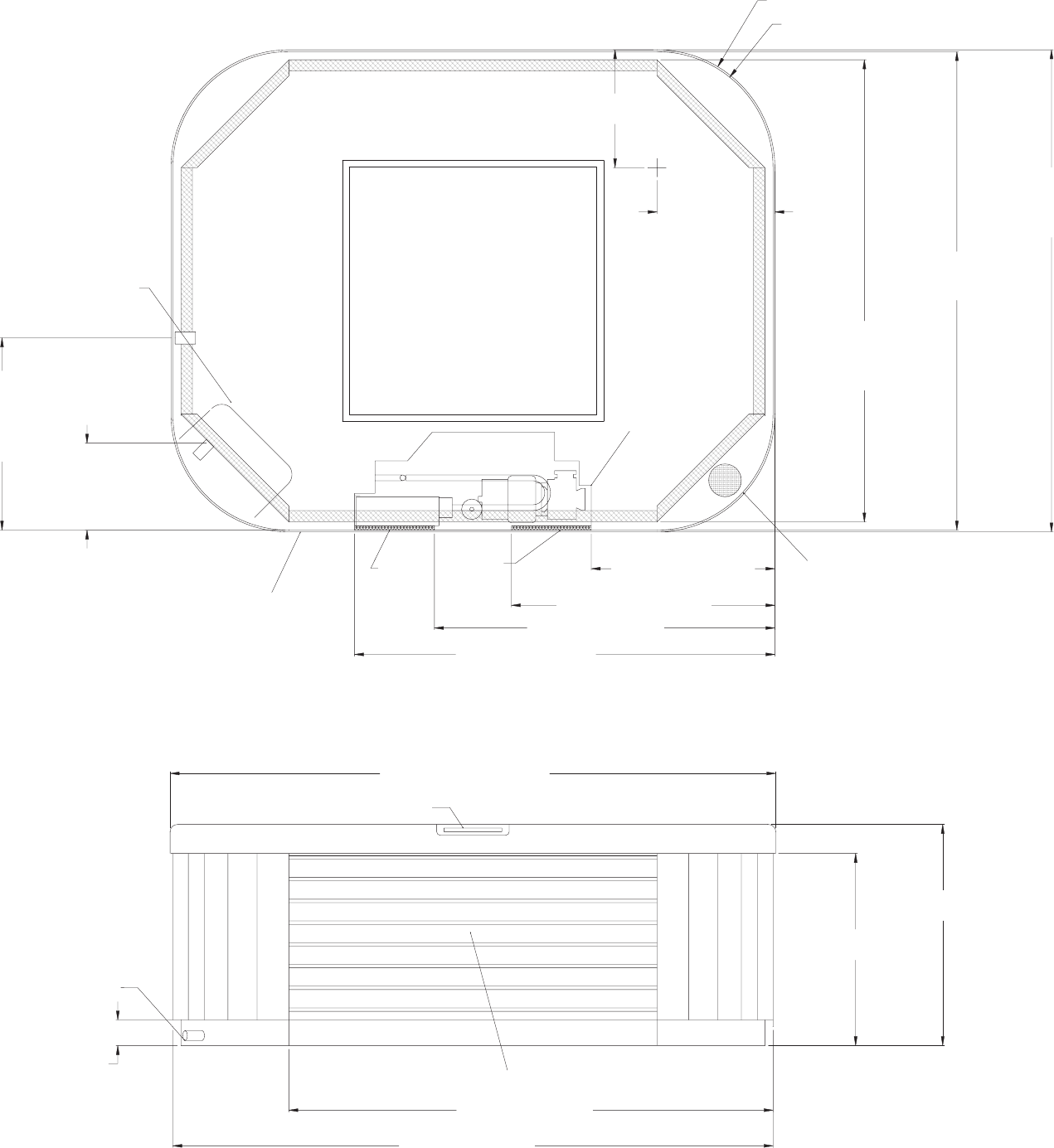

2005 Triad II Specifications
Dimension One Spas
2005 Triad II
66 1/2 in [169 cm]
Shell
See Caution
66 in [168 cm]
Skirt
63 1/2 in [162 cm]
Pedestal
Base
Control
Spa Lip
Pedestal Base
Hose Bib/
Water Drain
THE EDGES OF SPA BASE.
SUPPORTED CONSISTENT WITH
ON BOTTOM OF SPA, TO BE
THIS 3 FOOT SQUARE AREA,
30 1/2 in [77 cm]
26 1/2 in [67 cm]
67 in [170 cm]
10 in [27 cm]
Hose Bib/
Water Drain
26 in [67 cm]
Recommended location for
Electrical
Inlet
R16 in [R41 cm]
16 in [41 cm]
16 in [41 cm]
25 1/2 in [64 cm]
36 1/2 in [92 cm]
47 in [119 cm]
58 in [147 cm]
83 in [210 cm]
Door Extends
Under Spa Lip
Vent
Control Panel
Front Side of Spa
Equipment
Compartment
Vent
Vent
R16 in [R41 cm]
83 1/2 in [212 cm]
3 1/2 in [9 cm]
Sequencer valve
compartment
Page 2 of 2
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” (45.7cm) clearance on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details
5. This is the approximate location for drilling a hole if you must bring the power line in through the bottom of the spa.
Be careful not to puncture a plumbing line inside the equipment compartment(drill from the inside compartment out).
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
Architectural Specification
