Nautilus Specifications
Dimension One Spas
Nautilus
1. Stereo/subwoofer optional.
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” (45.7cm) clearances on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details
5. This is the approximate location for drilling a hole if you must bring the power line in through the bottom of the spa.
Be careful not to puncture a plumbing line inside the equipment compartment(drill from the inside compartment out).

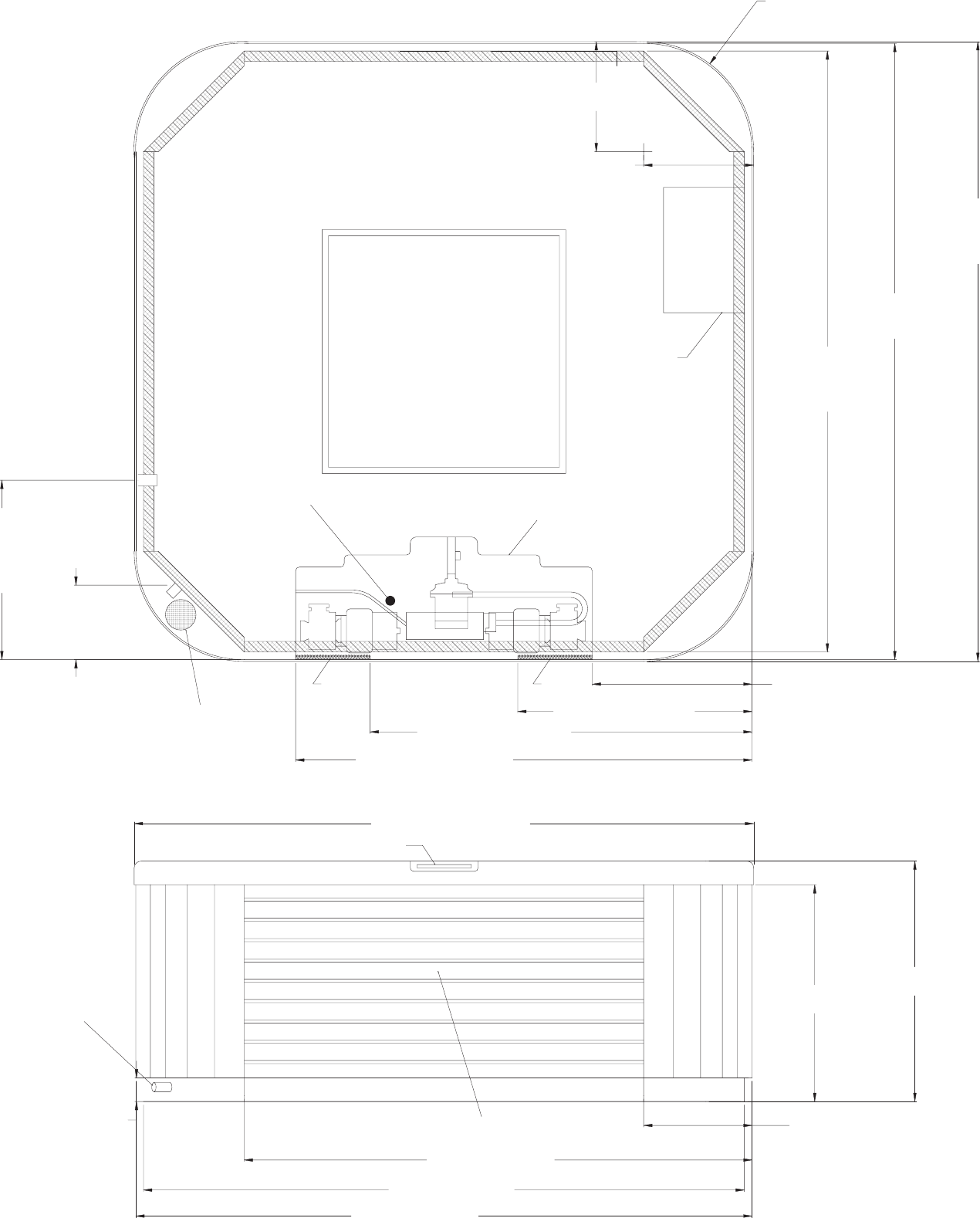

Top View of Spa
THE EDGES OF SPA BASE.
SUPPORTED CONSISTENT WITH
ON BOTTOM OF SPA, TO BE
THIS 3 FOOT SQUARE AREA,
91 1/2 in [232 cm]
Shell
See Caution
91 in [231 cm]
Skirt
89 in [225 cm]
Pedestal
Base
23 1/2 in [60 cm]
34 1/2 in [88 cm]
56 1/2 in [143 cm]
67 1/2 in [171 cm]
27 in [67 cm]
Recommended location for
Electrical
Inlet
11 in [28 cm]
Hose Bib/
Water Drain
32 in [81 cm]
3 1/2 in [9 cm]
16 in [41 cm]
75 in [191 cm]
Pedestal Base
Front View of Spa
91 in [231 cm]
Hose Bib/
Water Drain
Door Extends
Under Spa Lip
Vent
Equipment
Compartment
Vent Vent
See Note 5
91 1/2 in [232 cm]
89 in [225 cm]
Control
Spa Lip
35 1/2 in [90 cm]
R16 in [R41 cm]
16 in [41 cm]
16 in [41 cm]
Subwoofer
Architectural Specification
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
