2005 Lotus Bay Specifications
Dimension One Spas
Specification, 2005, Lotus Bay
Doc-1210 Rev - D
Rev Date: 11/22/05
2005 Lotus Bay
Note: 1. Subject to change without notice.
Architectural Specification
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” (45.72cm) clearances on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details
Page 2 of 2
91.75 in
[233 cm]
40 in
[101 cm]
36 in
[91 cm]
75 in
[191 cm]Pedestal Base
91.75 in
[233 cm]
Shell
75 in
[191 cm]
Pedestal Frame
10 in
[25 cm]
Typ 7 Plcs.
21 in
[54 cm]
54 in
[138 cm]
60 in
[152 cm]
15 in
[38 cm]
Electrical Inlet
6 in
[15 cm]
4 in
[10 cm]
Hose Bib/
Water Drain
R22 in
R22 in
[R56 cm]
[R56 cm]
Shell
Shell
90 in
[228 cm]
Skirt
R21 in
R21 in
[R53 cm]
[R53 cm]
Skirt
Skirt
90 in
[228 cm]
3.50 in
[9 cm]
19 in
[47 cm]
12 in
[30 cm]
Equipment
Compartment
Vent Holes
Typ 6 plcs
SIS
Compartment
Spa Lip
Control Panel
Pedestal Base

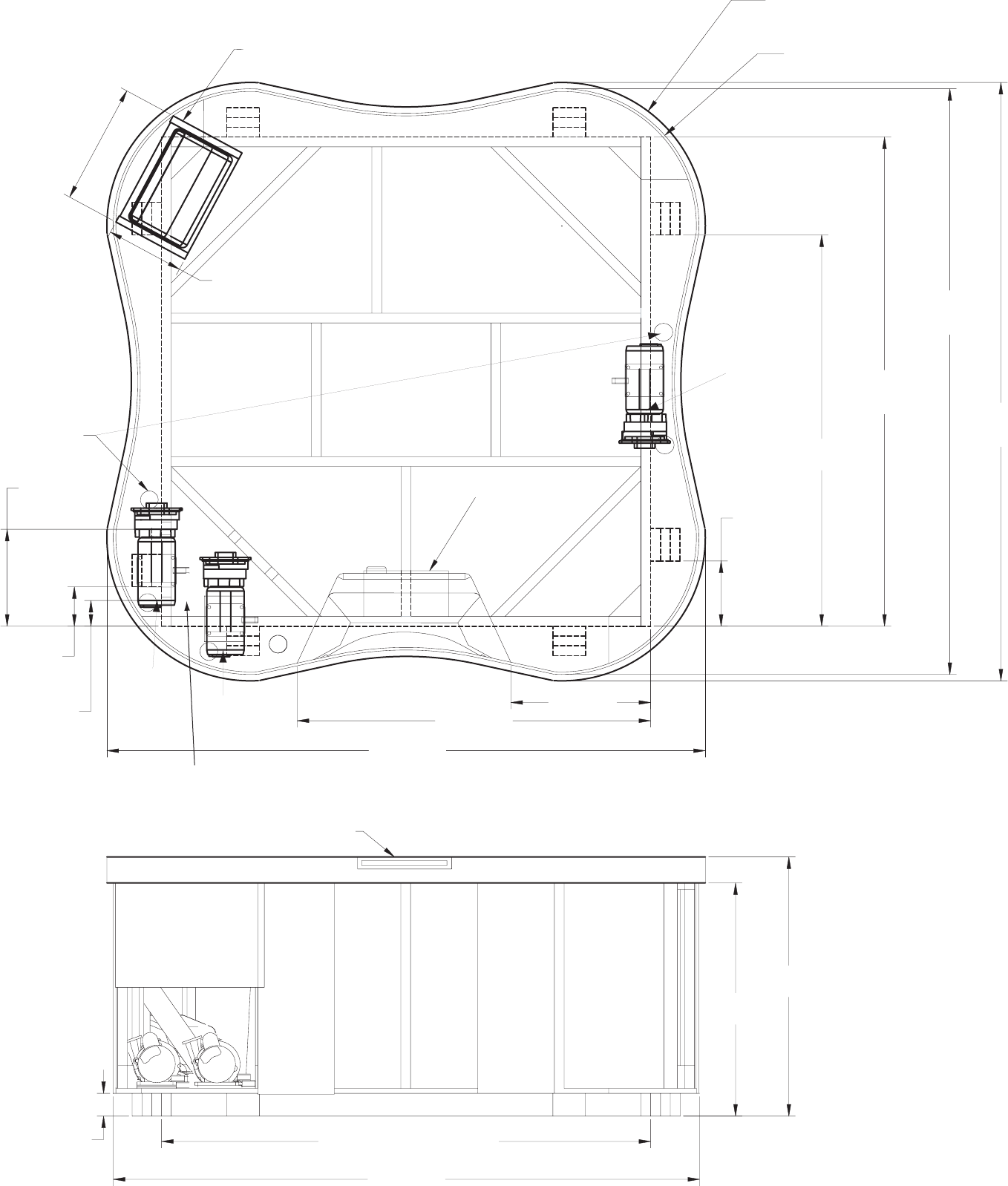

Top View Of Spa
Front View Of Spa
PUMP 3
PUMP 1
PUMP 2
August 2005
and later
Note:
Lotus Bay models built before August 2005
All pumps are located in the front left corner
