Note: 1. Subject to change without notice.
Specification, 2006, Companion
Doc-1523 Rev -A
Rev Date: 10/31/05
2006 Companion Specifications
Dimension One Spas
2006 Companion
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” (45.7cm) clearance on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details.
Page 2 of 2

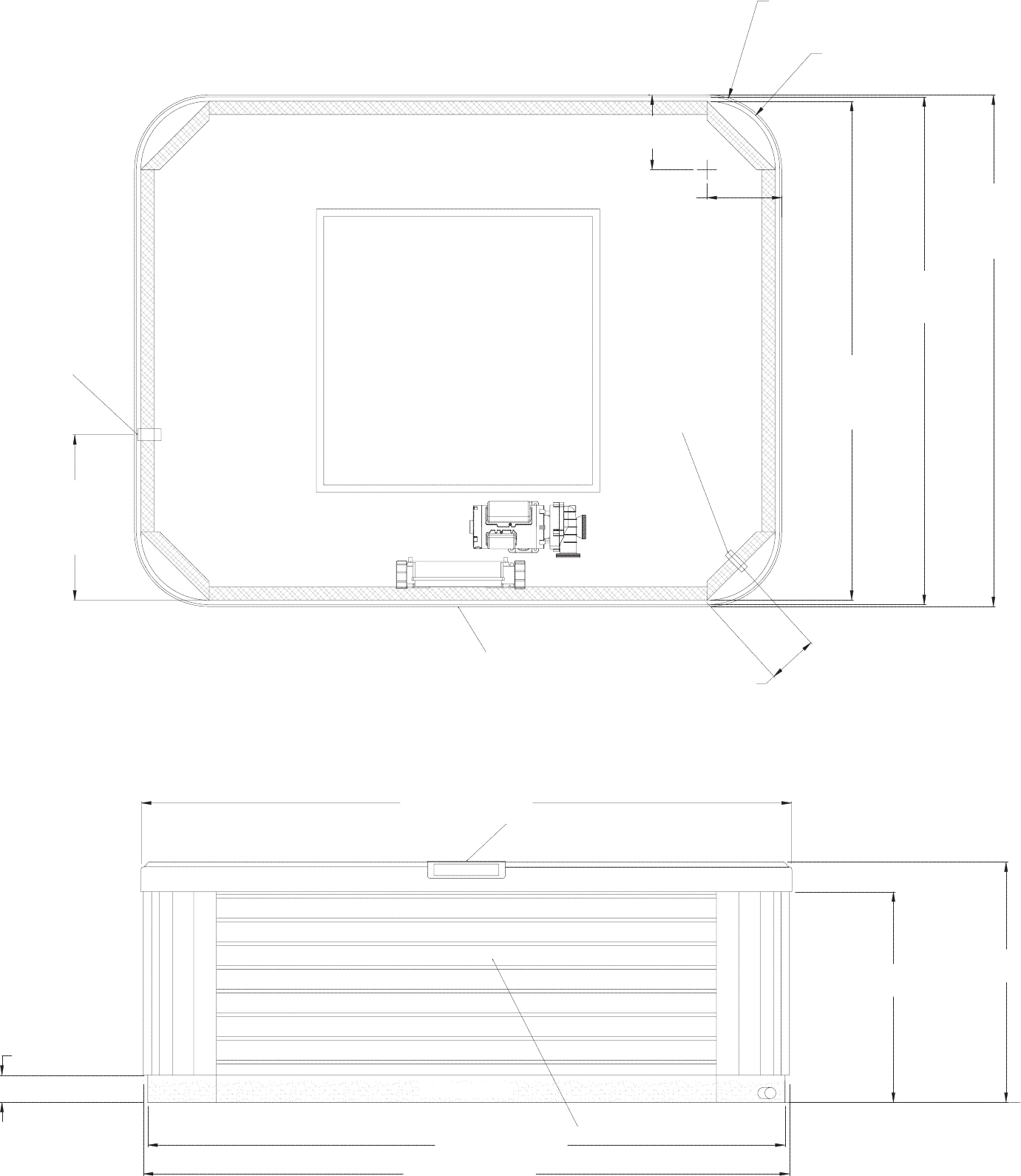

Architectural Specification
31 in [79 cm]
3 1/2 in [9 cm]
Top View of Spa
THE EDGES OF SPA BASE.
SUPPORTED CONSISTENT WITH
ON BOTTOM OF SPA, TO BE
THIS 3 FOOT SQUARE AREA,
84 in [213 cm]
Pedestal Base
27 in [69 cm]
64 in [163 cm]
Pedestal
Base
66 in [168 cm]
Spa Shell
See Caution
82 in [209 cm]
Door Extends
Under Spa Lip
83 in [212 cm]
R9 in [R24 cm]
Skirt Corner
R10 in [R24 cm]
Spa Shell
21 in [54 cm]
Electrical
Inlet
Electrical
Inlet
6 in [16 cm]
Hose Bib/
Water Drain
Control Panel
Spa Lip
Front View of Spa
10 in [24 cm]
10 in [24 cm]
65 in [166 cm]
Skirt
Hose Bib/
Water Drain
Control Panel
Front of Spa
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
