Specification, Chairman IIDoc-1510 Rev - B Rev Date: 4/6/07
Chairman II Specifications
Dimension One Spas
Chairman II
Note: 1. Subject to change without notice.

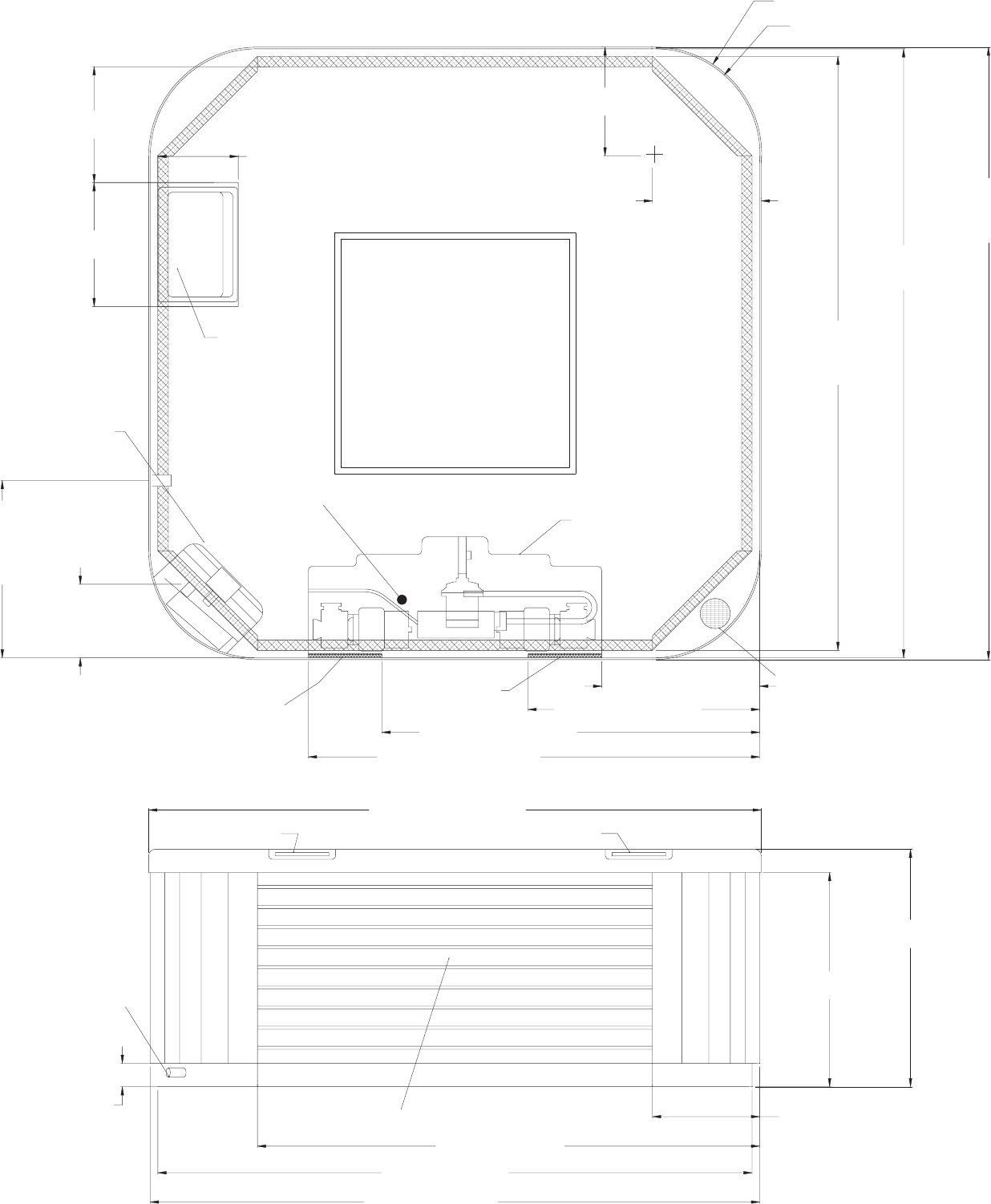

Top View of Spa
Front View of Spa
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” clearances on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details
5. This is the approximate location for drilling a hole if you must bring the power line in through the bottom of the spa.
Be careful not to puncture a plumbing line inside the equipment compartment(drill from the inside compartment out).
Page 2 of 2
Architectural Specification
THIS 3 FOOT SQUARE AREA
ON BOTTOM OF SPA, TO BE
SUPPORTED CONSISTENT WITH
THE EDGES OF SPA BASE
Equipment
Compartment
Optional stereo
Sub-woofer location
See Note 5
stereo speaker location
(optional)
stereo speaker location
(optional)
Hose
Bib/
Pedestal Base
Door Extends
Under Spa Lip
Control Panel
Spa Lip
Sequencer Control
Panel
Sequencer valve
compartment
Vent
Vent
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
R16"
Shell
41
91 1/2"
232
Shell
See Caution
91"
231
Skirt
89
"[225]
Pedastal Base
23 1/2" 60
34 1/2" 88
56 1/2" 144
67 1/2"
171
11"
28
Hose Bib/
Water Drain
91 1/2"
232
27"
69
Recomended location
for Electrical Inlet
32"
81
15 1/2" 40
35 1/2" 90
89
"[225]
91" 231
75 1/2"
[191]
Dimensions shown as inches and [centimeters] - XX" [ cm]
