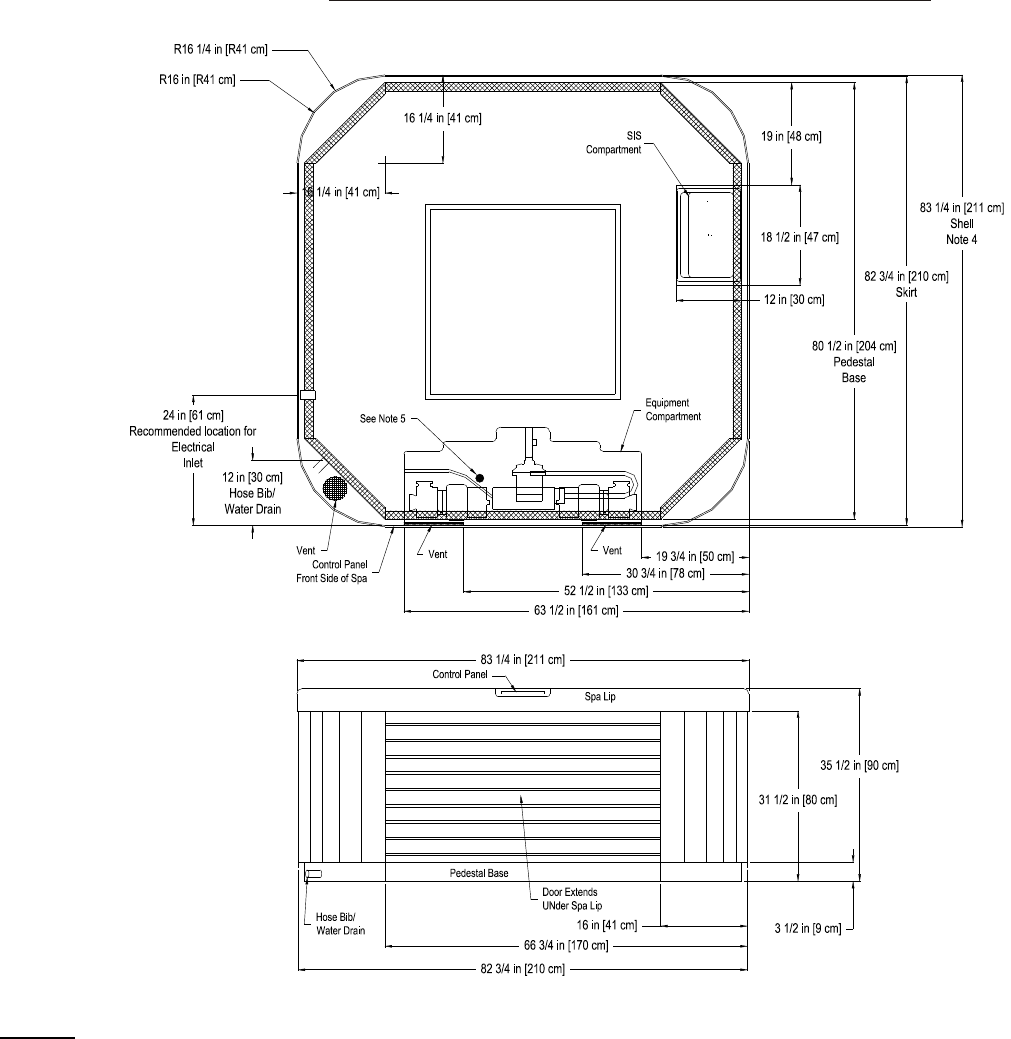

Top View of Spa
THE EDGES OF SPA BASE.
SUPPORTED CONSISTENT WITH
ON BOTTOM OF SPA, TO BE
THIS 3 FOOT SQUARE AREA,
Note:
1. Subject to change without notice.
2. Engineering specs may differ slightly from brochure.
3. For E-Z Lifter installation allow 18" clearance on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details.
5. This is the approximate location for drilling a hole if you must bring the power
line in through the bottom of the spa. Be careful not to puncture
a plumbing line inside the equipment compartment (drill from the inside Compartment out)
Caution:
Due to manufacturing tolerances there could be some minor differences between the actual spa and the
drawing above. If site planning is critical to such tolerances, be sure to measure your actual spa.
2003 Aurora HP, Architectural Specification
Dimension One Spas
2003 Aurora HP Specifications
Page 2 of 5
Specification, 2003, Aurora HP
Doc-538 Rev-C
Rev Date: 3/03/03
