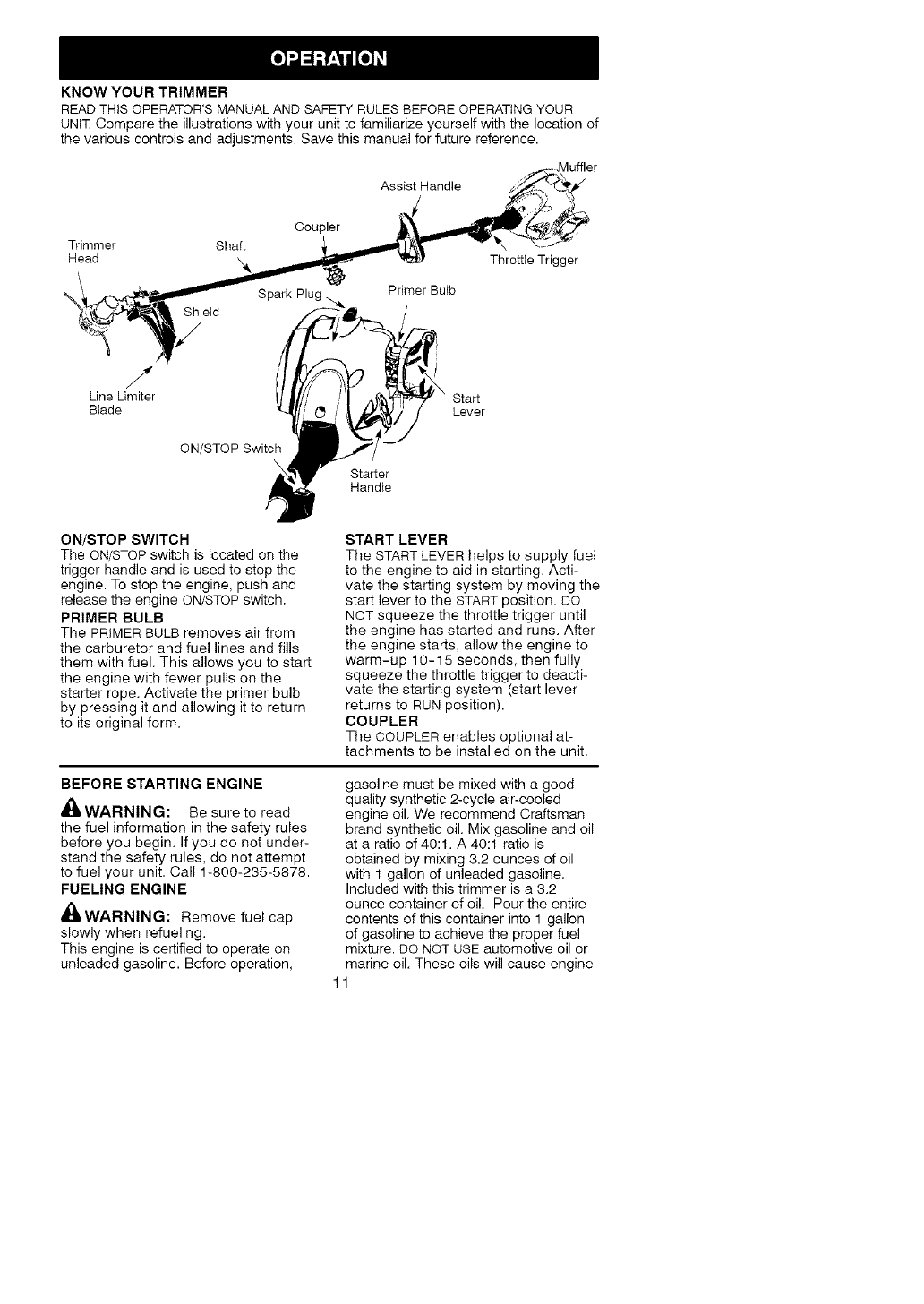

KNOW YOUR TRIMMER
READ THiS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the location of
the various controls and adjustments. Save this manual for future reference.
_luffler
Assist Handle
Coupler
Trimmer Shaft
Head N_ Throttle Trigger
_ _,_j_ Primer Bulb
__. Shield
/
Line Limiter Start
Blade Lever
ON/STOP Switch
Starter
Handle
ON/STOP SWITCH
The ON/STOP switch is located on the
trigger handle and is used to stop the
engine. To stop the engine, push and
release the engine ON/STOP switch=
PRIMER BULB
The PRIMER BULB removes air from
the carburetor and fuel lines and fills
them with fuel. This allows you to start
the engine with fewer pulls on the
starter rope. Activate the primer bulb
by pressing it and allowing it to return
to its original form=
START LEVER
The START LEVER helps to supply fuel
to the engine to aid in starting. Acti-
vate the starting system by moving the
start lever to the START position. DO
NOT squeeze the throttle trigger until
the engine has started and runs. After
the engine starts, allow the engine to
warm-up 10-15 seconds, then fully
squeeze the throttle trigger to deacti-
vate the starting system (start lever
returns to RUN position).
COUPLER
The COUPLER enables optional at-
tachments to be installed on the unit=
BEFORE STARTING ENGINE
_,WARNING: Be sure to read
the fuel information in the safety rules
before you begin. If you do not under-
stand the safety rules, do not attempt
to fuel your unit. Call 1-800-235-5878.
FUELING ENGINE
_WARNING: Remove fuel cap
slowly when refueling.
This engine is certified to operate on
unleaded gasoline. Before operation,
gasoline must be mixed with a good
quality synthetic 2-cycle air-cooled
engine oil. We recommend Craftsman
brand synthetic oil. Mix gasoline and oil
at a ratio of 40:1. A 40:1 ratio is
obtained by mixing 3.2 ounces of oil
with 1 gallon of unleaded gasoline=
Included with this trimmer is a 3.2
ounce container of oil. Pour the entire
contents of this container into 1 gallon
of gasoline to achieve the proper fuel
mixture. DO NOT USE automotive oil or
marine oil. These oils will cause engine
11
