Maintenance
Rear Cover Removal and Installation
To Remove the Rear Cover
1. Remove the three fasteners (A, Figure 23) securing the
rear apron to the machine.
2. Remove the two fasteners (B) securing the rear cover to
the machine.
3. Slide the cover (C) down and out to remove. Set all
components aside.
To Install the Rear Cover
1. Reverse steps 1-3 above, making sure the tab (D) on the
rear cover is located on the outside of the machine.
WARNING
DO NOT attempt any maintenance, adjustments or service
with engine and blade running. STOP engine and blade.
Disconnect spark plug wire and secure away from spark
plug. Engine and components are HOT. Avoid serious
burns, allow sufficient time for all components to cool.
! !

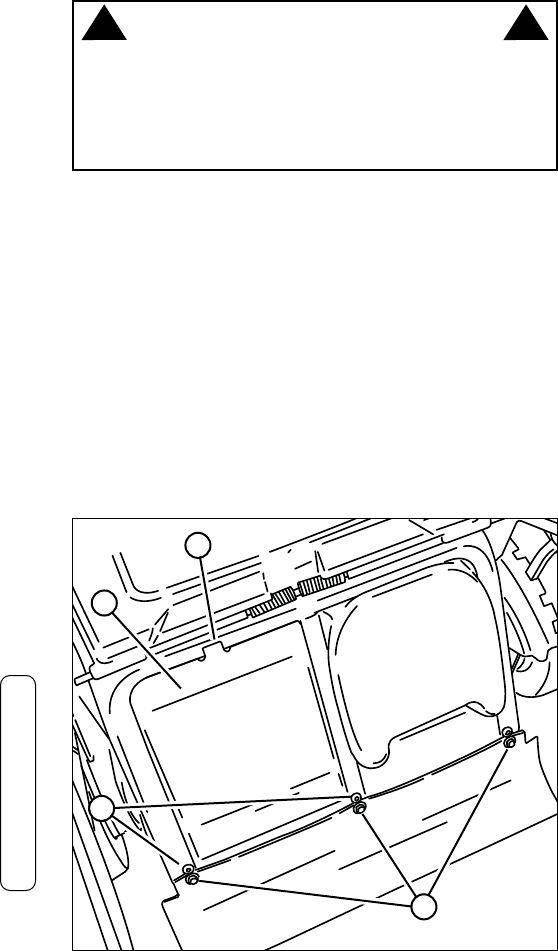

Figure 23: Removing the rear cover
B
C
A
D
