2-17 Installation/Removal Of
Collection Bags

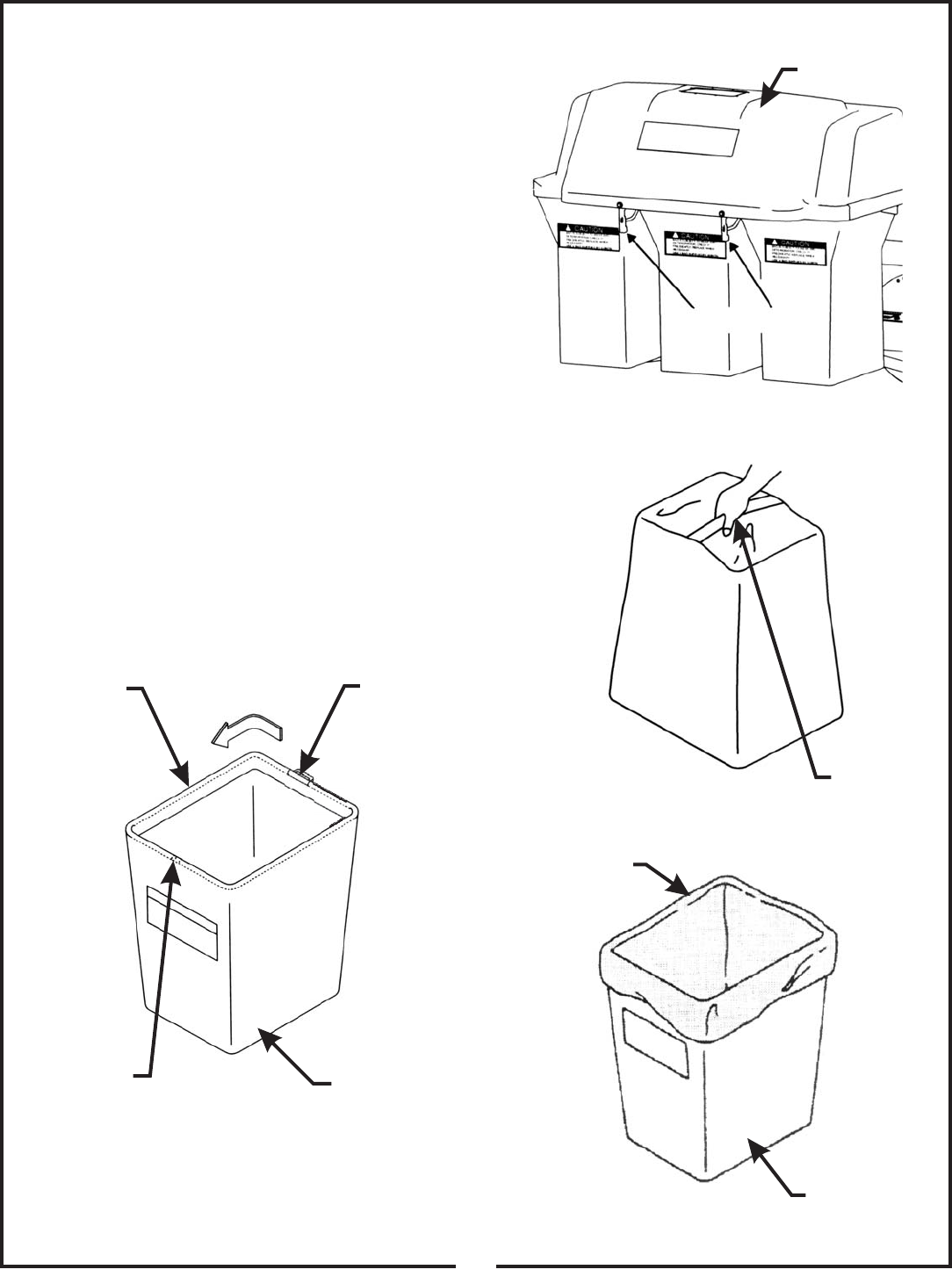

To install the bag onto the bag ring, first make sure the
bag ring end caps are fastened to the bag ring. Place the
seam openings of the bag onto the bag ring openings
and turn the bag until the slot bracket in the bag ring is
protruding from the opening in the bag (Figure 19). Do
this for each of three bags.
Install the completed assemblies onto the support frame
and close the plastic top. Fasten both draw latches to
hold the plastic top closed (Figure 20).
To empty the bag, remove the bag and bag ring by lifting
and sliding rearward. Grasp the loop on the bottom of
the bag, turn it upside down and empty the collected
debris (Figure 21). Repeat for the other bags. Reinstall
all bags, line with plastic bags if desired, close the plastic
top and reattach the draw latches.
Plastic lawn and leaf bags, 33 gallon size, may be used
inside the cloth bags. Be sure to leave enough plastic
bag hanging over the frame so the plastic bags can be
twist tied before emptying (Figure 22).
Figure 19.
Draw Latches
Cloth Bag
Slot
Bracket
Bag Ring
Bag Ring
End Caps
Figure 20.
Figure 21.
Figure 22.
Plastic Top
Grasp Bag
Here
Plastic Bag
Cloth Bag
