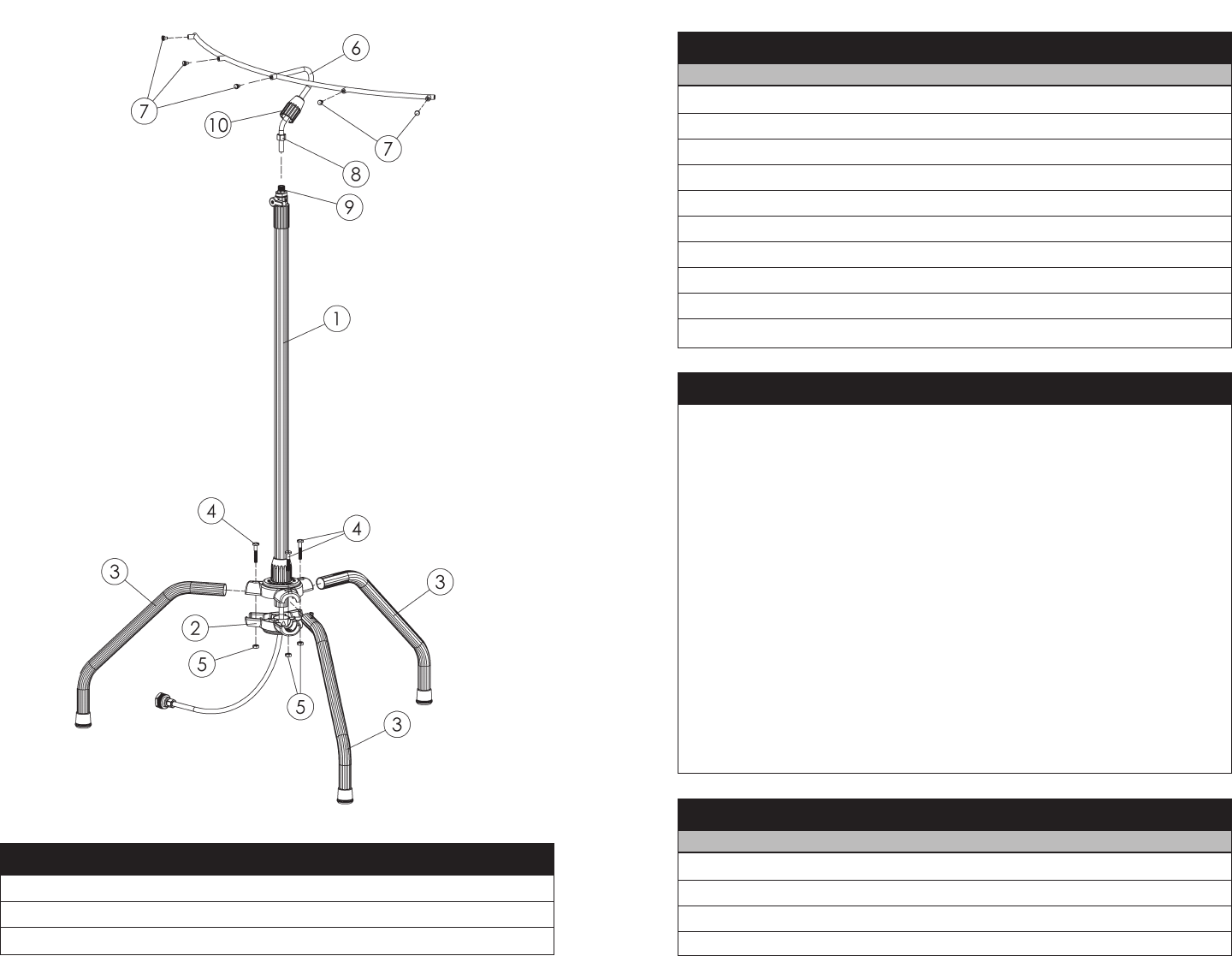

LiSt Of aLL encLOSed PartS
QtY Part # DEscrIPtIon
1 1 Main Tubing Assembly
1 2 Star Lower Half
3 3 Leg Tubing
3 4 1/4 - 20 x 1 1/2” Bolt
3 5 1/4 - 20 Nut
1 6 Spray Bar
5 7 .014 Misting Nozzle
1 8 Compression Nut
1 9 Ball Valve
1 10 Upper Boot
tOOLS required
Phillips Screwdriver
5/8" Open-End or Adjustable Wrench
3/4" Open-End Wrench
1. Remove contents from box.
2. Insert Leg Tubing (#3) between upper and Lower Star (#2). Secure together with
Phillips Head Bolt (#4) and 1/4-20 Nut (#5). Leave the bolts loose at this time so the
other legs can be inserted. Once all leg tubes are secured, and then tighten bolts with
Phillips head screwdriver.
3. Insert Stainless Steel Spray Bar (#6) into Ball Valve (#9), Tighten Compression
Nut (#8) with 5/8”open end wrench. Use a 3/4” open end wrench on Ball Valve (#9) as
back up wrench. Secure Upper Boot (#10) over Ball Valve (# 9).
4. Hook up garden hose and flush for 20 seconds. Shut water off using Ball Valve located on
upper pole.
5. Install (5) .014 Misting Nozzles (#7) into threaded hole on Spray Bar (hand tighten only).
You are now ready to enjoy your Portable Misting Tower.
6. Twist upper pole counterclockwise to raise or lower for desired height.
maintenance
• Clean or replace nozzles as needed.
• Keep garden hose screen clean.
CAUTION! Misting system is intended for outdoor use only.
• Use potable water/fresh water only.
• Shut off garden hose when not in use
inStaLLatiOn inStructiOnS
OPtiOnaL acceSSOrieS
Part # DEscrIPtIon
52505 Inline Sediment Filter
52014 .014 Misting Nozzle
26105 Hose Y Valve
Please visit www.aeromist.com for additional parts and accessories.
