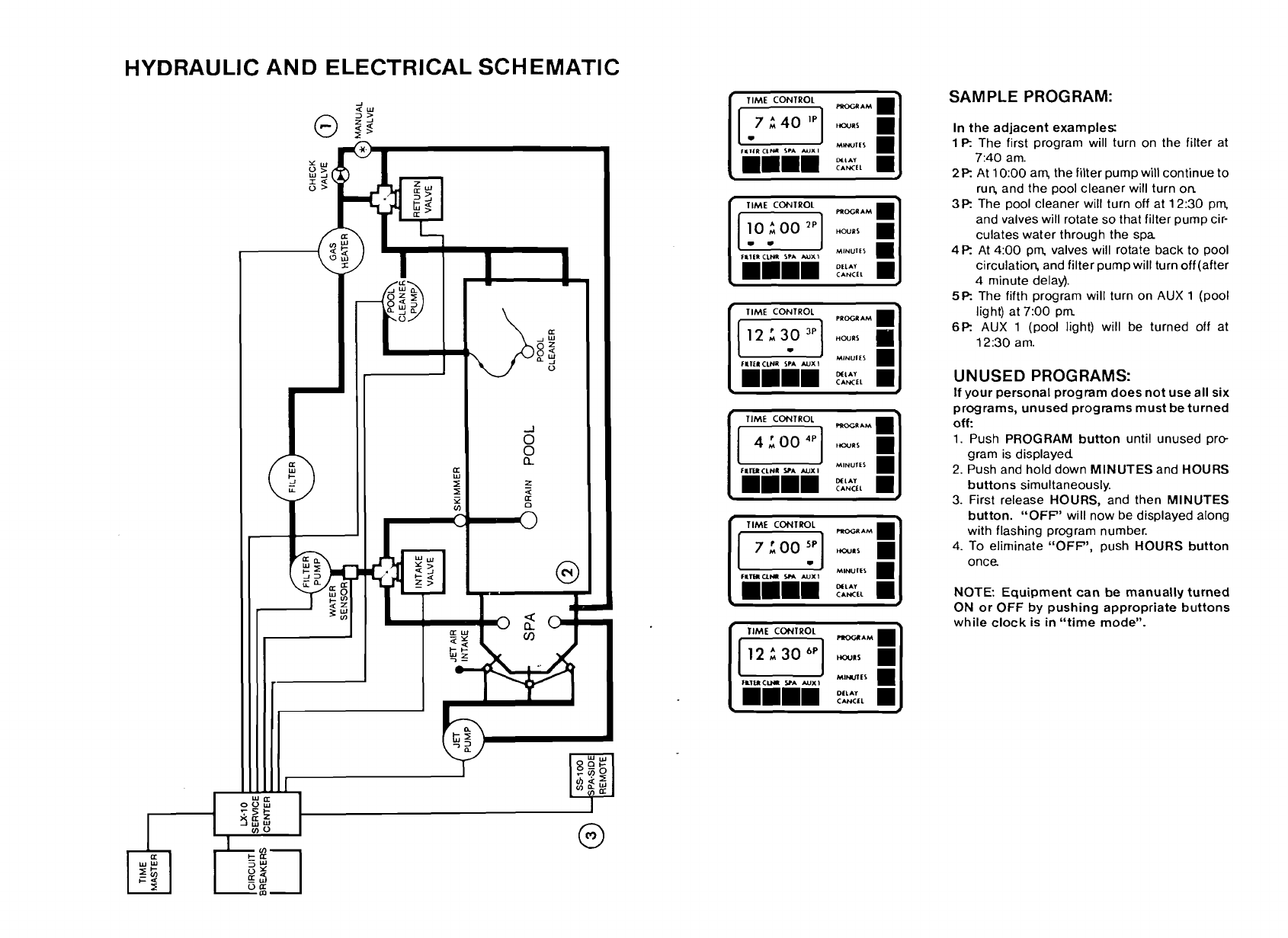

HYDRAULIC AND ELECTRICAL SCHEMATIC
llME
CONTROL
rlru
CLNR
SPA
wx
I
TLNCLNI
SPA
WXI
TIME
CONlllOL
FLlUUH
SM
WXI
SAMPLE PROGRAM:
In the adjacent examples
1
P.
The first program will turn on the filter at
7:40 am.
2P:
At 10:OO arq the filter pump will continue to
run, and the pool cleaner will turn on
3P:
The pool cleaner will turn off at 12:30 pm
and valves will rotate so that filter pump cir-
culates water through the spa
4
P:
At 4:00 pm valves will rotate back to pool
circulation, and filter pump will turn off (after
4 minute delay).
5P.
The fifth program will turn on AUX 1 (pool
light) at
7:00 pm
6P:
AUX
1
(pool light) will be turned off at
12:30 am.
UNUSED PROGRAMS:
If your personal program does not use all six
programs, unused programs must be turned
off:
1. Push PROGRAM button until unused pro
gram is displayed
2. Push and hold down MINUTES and HOURS
buttons simultaneously.
3. First release HOURS, and then MINUTES
button.
"OFP' will now be displayed along
with flashing program number.
4. To eliminate
"OFP', push HOURS button
once
NOTE Equipment can be manually turned
ON or OFF by pushing appropriate buttons
while clock is in "time mode".
