North Star M1146E Log Splitter User Manual


  Open as PDF
of 4

1
M1146E
4-Way Wedge Systems
1146, 1147, 1148
Purpose:
Parts for building own 4-way log splitter.
4-Way Wedge System Assembly
1. Unbox and identify all parts.

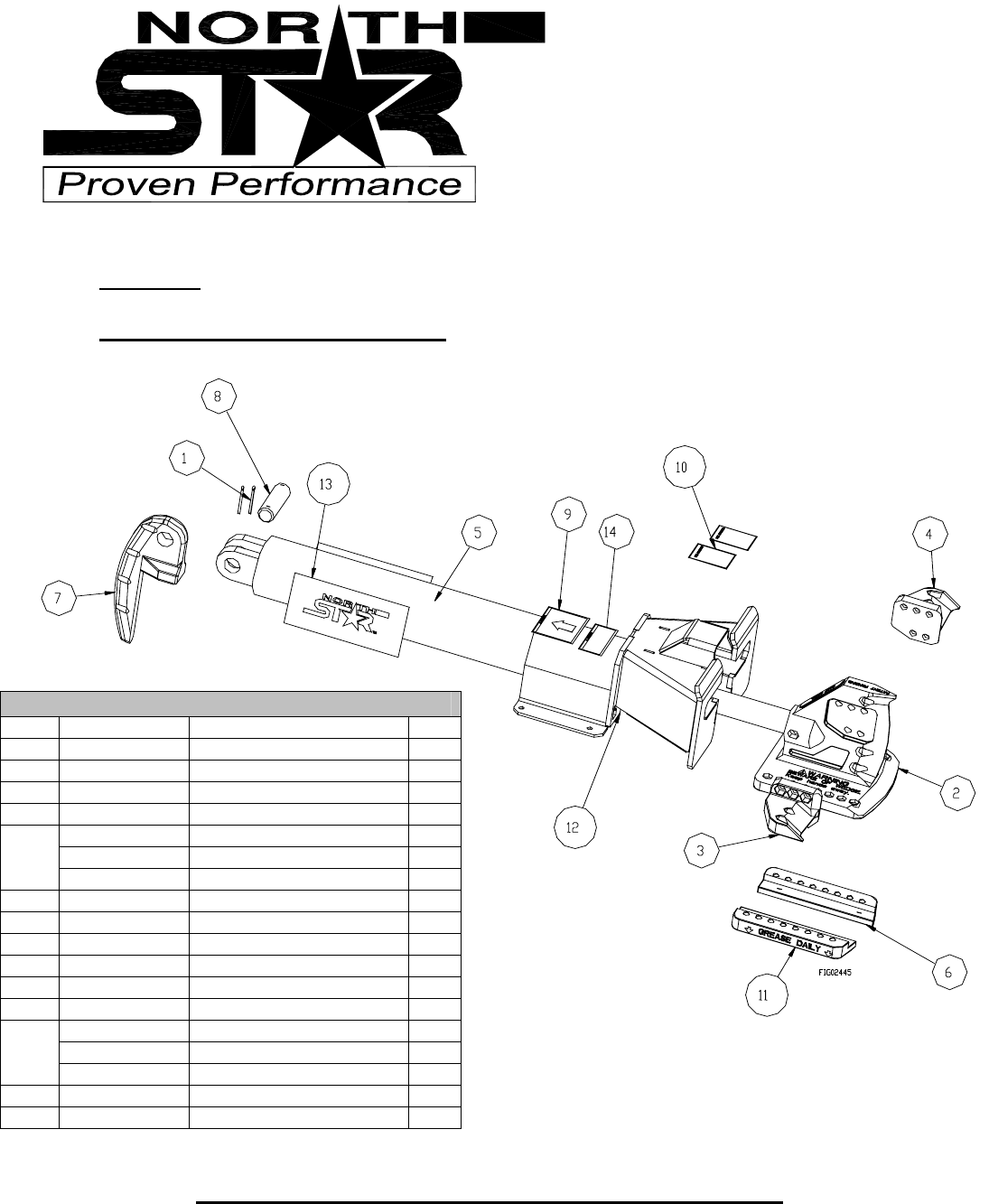

Parts List
Item Part Number Description Qty
1 82140 Cotter Pin 2
2 778321 Wedge 1
3 778329 Right Wing 1
4 778330 Left Wing 1
781151 4” Cylinder for 1146 1
781152 4.5” Cylinder for 1147 1
5
781153 5” Cylinder for 1148 1
6 778380 Left Keeper 1
7 778433 Anchor Block 1
8 778592 Pin, Cylinder to Anchor 1
9 778610 LS Warning Decal 1
10 778717 Log Stripper Decal 2
11 778723 Right Keeper 1
779138 Log Stripper wldt for 1146 1
779137 Log Stripper wldt for 1147 1
12
779136 Log Stripper wldt for 1148 1
13 STNS4 4” x 9” NorthStar Decal 2
14 777891 Decal, Hydraulic Fluid 1
Any Questions, Comments, Problems, or Parts Orders
Call NorthStar Product Support 1-800-270-0810
®
