PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
9.1
Cabinet Blower
CABP3
25 5/8"
(651mm)
Electrical Access
Location
Finished
Countertop
Bottom of
Duct Connection
11/16" (17mm)
to
3 11/16" (94mm)
18"
(457mm)

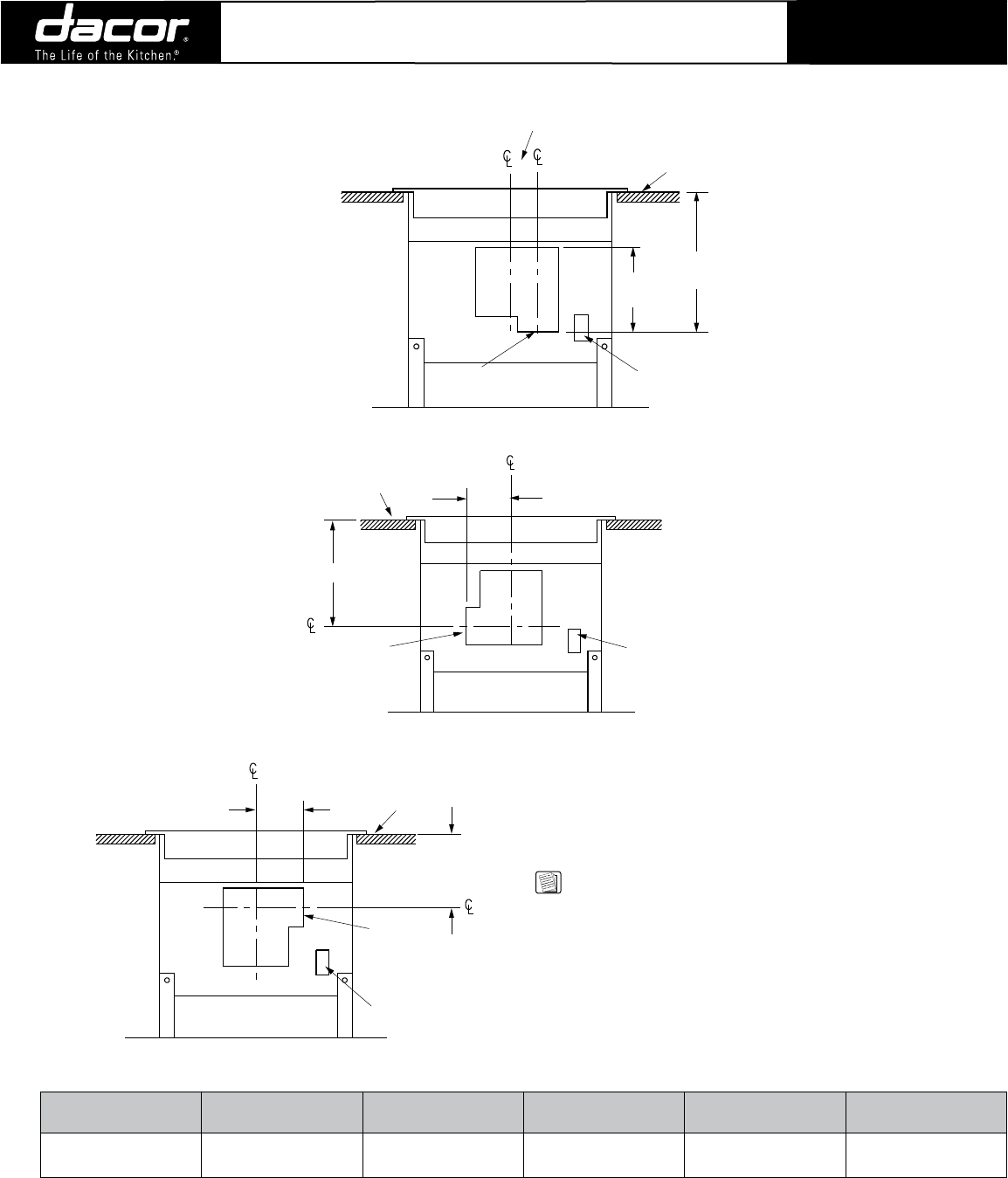

CABP3 DUCTED DOWN
(inside Front Cabinet View)
11 7/16"
(291mm)
21 13/16" (554mm)
Electrical
Access
Location
Finished
Countertop
Left Side
Duct Connection
CABP3 DUCTED LEFT
(inside Front Cabinet View)
6 5/16"
(160mm)
11 1/2"
(292mm)
Finished
Countertop
Electrical Access
Location
Right Side
Duct
Connection
CABP3 DUCTED RIGHT
(inside Front Cabinet View)
Model No.
Dedicated Circuit
Required
Maximum Duct
Length Total Connected Load Blower Rating
Approximate
Shipping Weight
CABP3
Refer to RV
Specifications
Refer to Duct Planning
Specifications
0.05kW (4A) 600 CFM 34 lbs.
NOTE:
1. The CABP3 cabinet blower is not approved for use
with ERV/PRV downdrafts.
