IMPORTANT INFORMATION

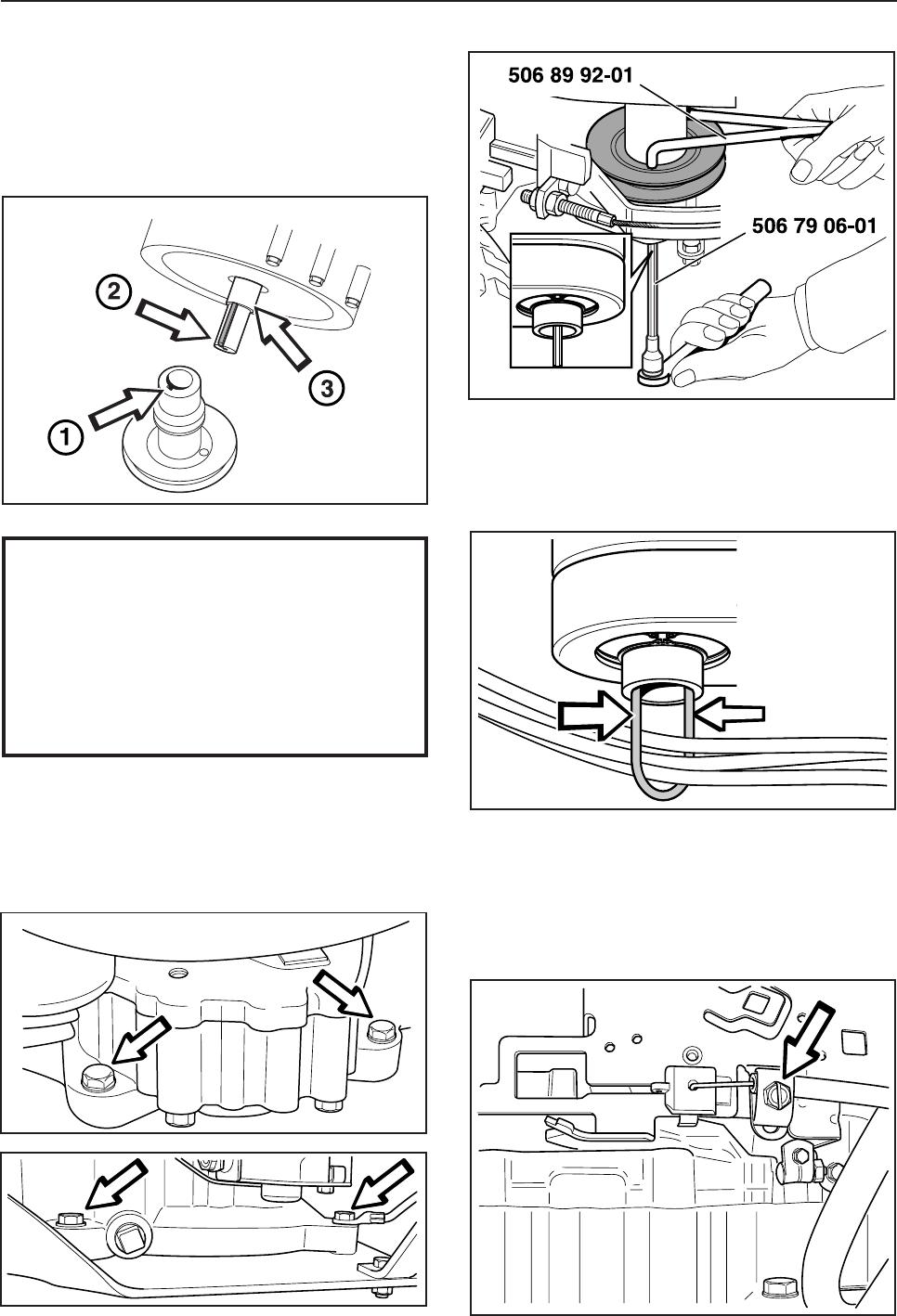

When installing the engine, it is important
that the pulley groove (1) is in a position
so the outgoing axle key (2) fits into the
groove (see diagram). Also check that
both spacing collars (3) and the key (2)
are firmly attached on the engine axle.
Grease the engine axle.
Reparation instructions
Replacing engine
The figures under ”Assembling” show the newer
Rider 16 model (2003-). For
older designs (R16 up to the 2002 model), and
Rider 11 and 13 see ”Dismantling
the engine”. The text applies to all versions.
Lower the engine and tighten the engine
attachments (two on each side of the engine) with
moment (20-25 Nm/14-18 lbft).
Hook on the throttle wire at the carburettor and fit
the wire clamp without tightening it.
Position the wires in the wire holder, clamp the
holder together and, from below, lead it up through
the centre of the belt tensioner until it hooks over
the tensioner's upper edge.
Position the pulley with tool no. 506 79 06-01 and
tighten it with moment (70-80 Nm/50-56 lbft). Use
tool no. 506 89 92-01 as a holder-on.
