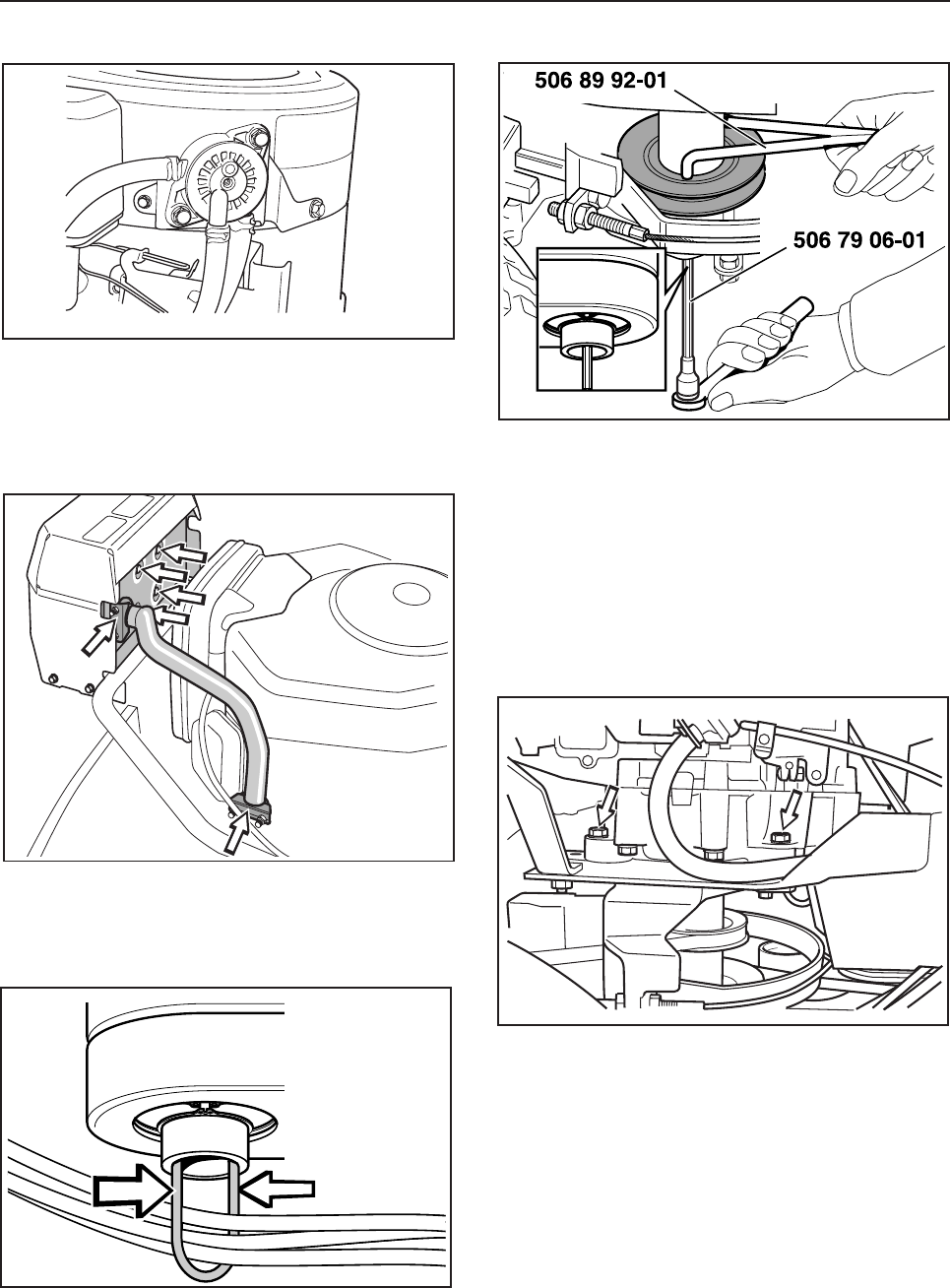

Remove the fuel line hose clamp from the fuel
pump and pull the fuel line downwards.
Tie the hose higher than the fuel tank level.
Reparation instructions
Insert tool no. 506 79 06-01 into the centre of the
engine pulley. Unscrew and remove the socket
head cap screw which holds the pulley and the
engine axle together. Use tool no. 506 89 92-01 as
a holder-on. Remove the pulley from the engine
axle.
Release the exhaust pipe clamps, and then remove
the exhaust pipe.
Clamp together the wire holder under the engine
pulley with a pair of flat pliers and pull the wire
holder downwards.
Remove the engine attachments, two on each side
of the engine, and remove the engine from the
mower.
Watch where the batterys negative cable is
connected. Disconnect it from the engine if
necessary.
Lift the engine out of the mower, take care of the
key and spacer tube, located on the engine shaft.
