20 English
Mowing deck
The entire Rider series is equipped with front-
mounted mowing decks to ensure effective cutting
even in confined areas.
Rider 11 and Rider 13 have a mowing deck with
rear ejection and a cutting width of 850 mm (34").
Rider 11 Bio and Rider 13 Bio have a Bio deck with
a cutting width of 900 mm (36").
Rider 16 can be fitted with mowing decks with
either side or rear ejection where both have mowing
widths of 970 mm (38"), BioClip unit with mowing
width 900 mm (36") alternatively 1030 mm (41") or
Combi unit 1030 mm (41") alternatively 1120 mm
(44").
The Combi unit works as a BioClip unit when a
BioClip plug is fitted, but can be modified for rear
ejection by removing the BioClip plug.
Design and function
Driving
Rider 11 has a manual gear box with five forward
gears, neutral and one reverse gear. This gear box
is an "inline" type, which means that you can
change from neutral to fifth gear without having to
go through all the other gears.

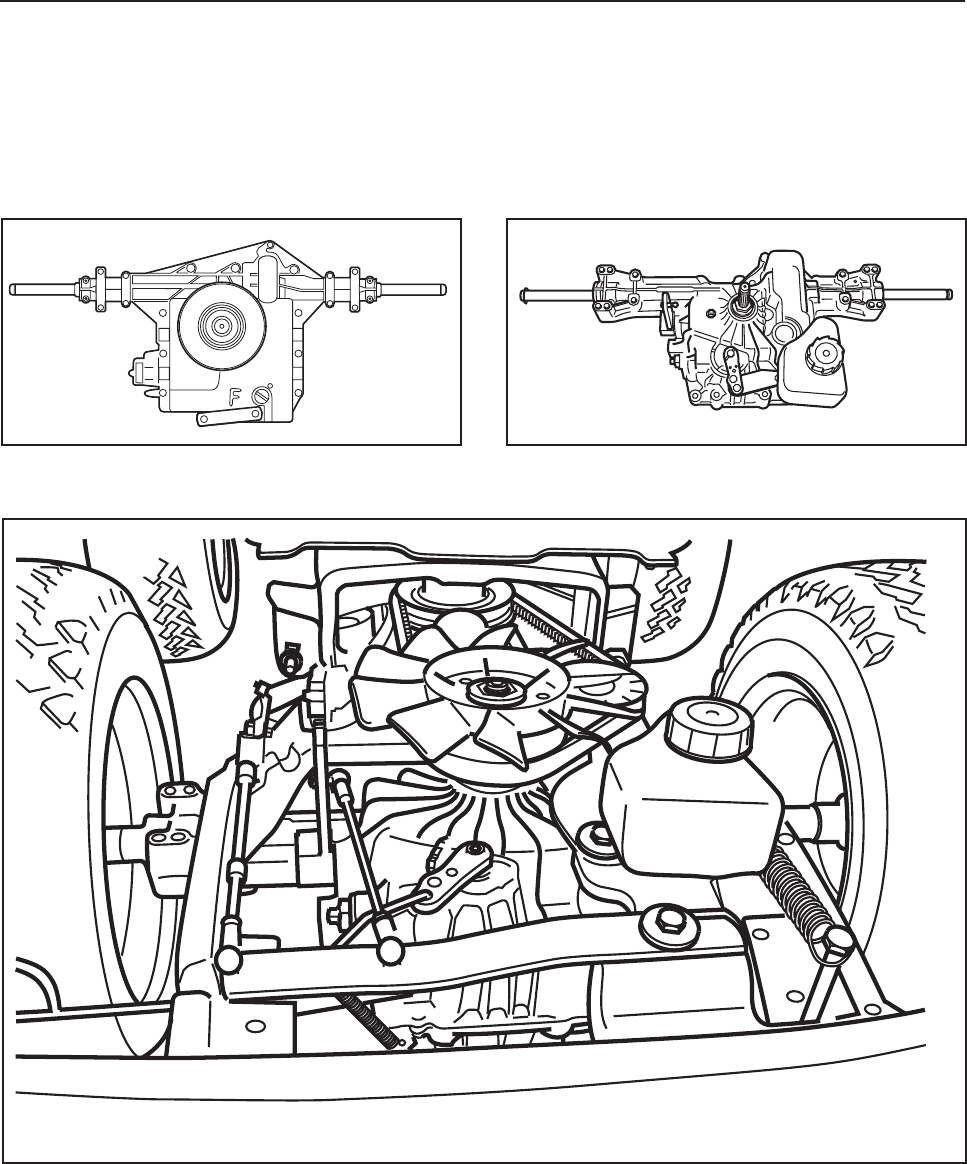

Manual gear box on Rider 11 and Rider 11 Bio.
Hydrostatic transmission on Rider 13 and Rider 16.
Rider 13 and Rider 16 are equipped with
hydrostatic transmission which provides the driver
complete control. Continuously variable speed
control, forwards and reverse, is by means of a
pedal.
