Black & Decker ST1000 Trimmer User Manual



Polarized Plug
This product is supplied with a polarized plug (one
blade is wider than the other ). This plug will fit
into a polarized outlet (receptacle) only one way. If
the plug does not fit fully into your outlet, reverse
the plug. If it still does not fit, contact a qualified
electrician to install a proper polarized outlet. Do
not modify or change this plug in any way.
Extension Cords
Make sure your extension cord is in good
condition. When using an extension cord, be sure
to use one heavy enough to carry the current your
product will draw. An undersized extension cord
will cause a drop in line voltage resulting in loss of
power and overheating. The table shows the
correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next
heavier gage. The smaller the gage number, the
heavier the cord.
Assembly Instructions

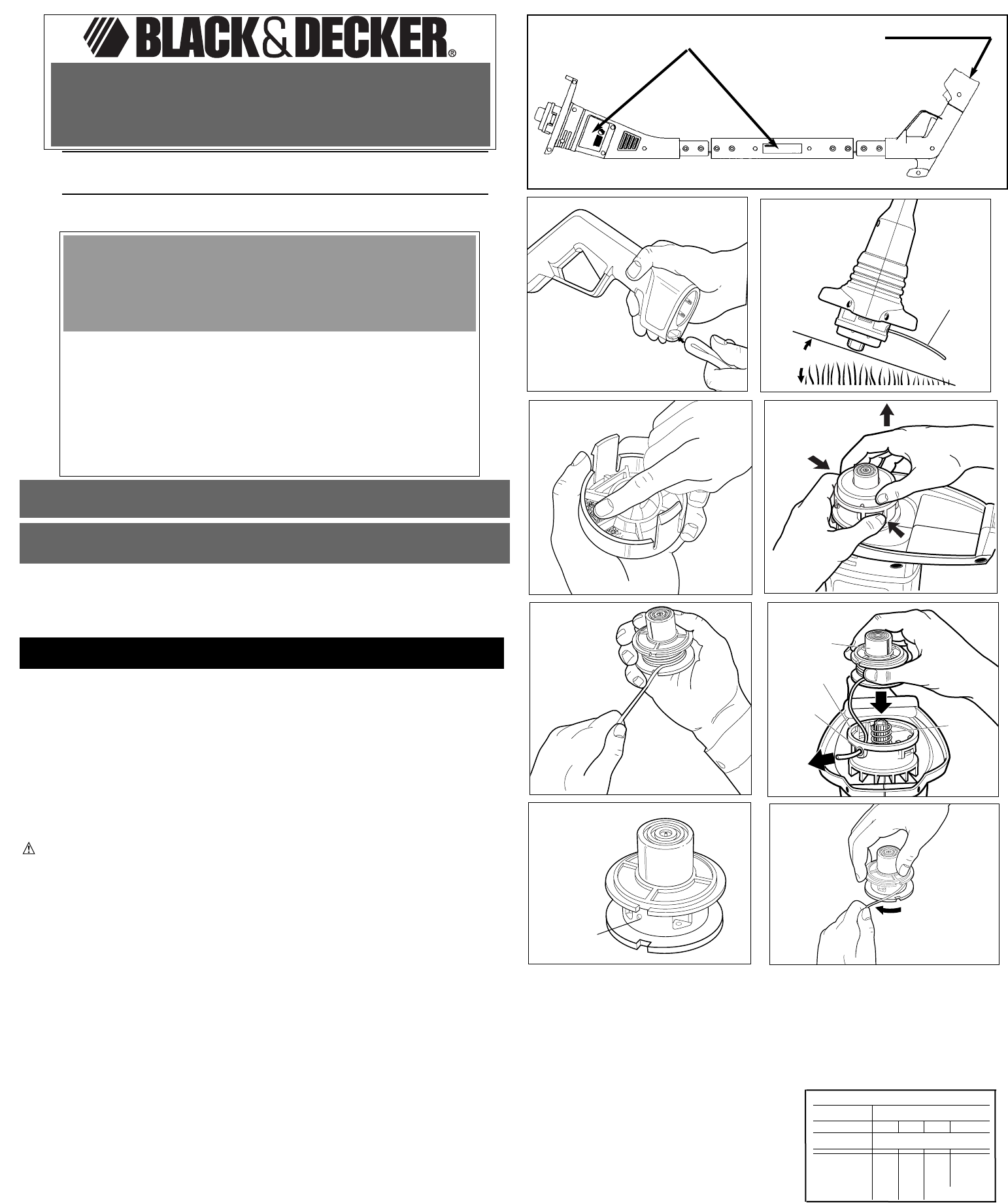

-Layout sections as shown. (See illustration on page 4)
- Hold middle section at printing while assembling each end.
- Push sections together firmly.
- Install screws and nuts. Screws cannot be tightened if parts are assembled incorrectly.
How To Use Your Black & Decker Yard Trimmer
CLIP-TO-LOCK CORD RETAINER: (UNPLUG EXTENSION CORD AT TRIMMER)
An extension cord retainer is built into the switch handle that prevents the extension cord from
pulling out of the handle. To use the retainer, double the extension cord, as shown in Figure 1,
about a foot from the female end. Depress the retainer latch, shown in the figure, and insert the
cord as far as it will go. Holding the cord in place, release the retainer latch and the cord will be
securely held. To remove the cord, depress the retainer latch and pull the cord out.
Trimming Technique and Performance Notes
Proper trimming technique is essential to obtain the maximum in performance and handling ease.
CAUTION: Inspect area to be trimmed for any wire, cord, or string-like matter which could
become entangled in the rotating line or spool. Be particularly careful to avoid any wire which
might be bent outwardly into the path of the tool, such as barbs at the base of a chain link fence.
Tilt trimmer at a slight angle from the ground (Figure 2).
Lower to grass or weeds you intend to cut. (If they are over 20cm (8") high, start cutting at top.)
Slowly swing unit into and out of area being cut, holding the unit off the ground at desired
cutting height.
SPOOL
HUB
EYELET
SPRING
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
When using electric tools, basic safety precautions should always be followed to
reduce risk of fire, electric shock and personal injury, including the following :
WARNING:Some dust created by this product contains chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are: compounds in fertilizers
compounds in insecticides, herbicides and pesticides
arsenic and chromium from chemically treated lumber
To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that
are specially designed to filter out microscopic particles.F
WARNING: This product contains chemicals, including lead, known to the State of California
to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.
CAUTION: Wear appropriate personal hearing protection during use. Under some conditions and
duration of use, noise from this product may contribute to hearing loss.
READ ALL INSTRUCTIONS
1. SAFETY SPECTACLES OR GOGGLES — Wear at all times when trimming.
2. GUARD — Do not use trimmer without guard attached.
3. NYLON LINE — Keep face, hands and feet clear of rotating nylon line at all times. Do not extend
beyond length specified in this manual. Wear long pants to protect your legs.
4. KEEP ALL BY-STANDERS AWAY — at a safe distance from work area, especially children.
5. AVOID ACCIDENTAL STARTING — don’t carry plugged-in tool with finger on trigger.
6. DO NOT FORCE THE TOOL — at a rate faster than the rate at which it is able to cut effectively.
7. USE THE RIGHT TOOL — Do not use this tool for any job except that for which it is intended.
8. DON’T OVERREACH— Keep proper footing and balance at all times.
9. WARNING — To prevent electric shock hazard, use only with an extension cord suitable for outdoor
use. Always connect extension cords to a fused line or one protected by a circuit breaker.
10. DON’T ABUSE CORD — Don’t yank cord from receptacle. Keep cord from heat, oil and sharp edges.
11. EXTENSION CORDS — to prevent disconnection of extension cord during operation, use extension
cord retainer as described in this manual.
12. DAMAGE TO UNIT — If you strike or become entangled with a foreign object, stop trimmer
immediately, unplug, check for damage and have any damage repaired before further operation is
attempted. Do not operate with a broken hub or spool.
13. DAMAGE TO CORD — Keep power cord away from rotating line. If you damage the extension cord,
unplug it at the electrical outlet before moving the trimmer or examining the damage. If there is
damage to the extension cord, replace cord before further use.
14. DISCONNECT TOOL — When not in use, when replacing line, or prior to cleaning hub.
15. DRESS PROPERLY — Don’t operate the tool when barefoot or wearing open sandals. Always wear
substantial footwear. Use of rubber gloves and substantial rubber soled footwear is recommended
when working outdoors.
16. AVOID DANGEROUS ENVIRONMENTAL CONDITIONS — Do not use electric tools in damp or wet
locations. Follow all instructions in this instruction manual for proper operation of your trimmer.
17. DON’T USE THE TRIMMER IN THE RAIN.
18. DO NOT OPERATE portable electric tools in gaseous or explosive atmospheres. Motors in these tools
normally spark, and the sparks might ignite fumes.
19. STORE IDLE TOOLS INDOORS — When not in use, tools should be stored indoors in dry, locked-up
placed—out of reach of children.
20. THE ROTATING LINE PERFORMS A CUTTING FUNCTION — Use care when trimming around
screens and desirable plantings.
21. USE ONLY RECOMMENDED REPLACEMENT LINE — Do not use heavier line or other line
materials, eg. metal wire, fishing line or similar materials.
SAVE THESE INSTRUCTIONS
Double Insulation
AN IMPORTANT CONSUMER FEATURE
Your tool is double insulated to give you added safety. This means that it is constructed throughout with
two separate “layers” of electrical insulation or one double thickness of insulation between you and the
tool’s electrical system.
Tools built with this insulation system are not intended to be grounded. As a result, the extension cord
used with your tool can be plugged into any conventional 120 volt electrical outlet without concern for
maintaining a ground connection.
NOTE: Double insulation does not take the place of normal safety precautions when operating this tool.
The insulation system is for added protection against injury resulting from a possible electrical insulation
failure within the tool.
CAUTION: When servicing double insulated tools, USE ONLY IDENTICAL REPLACEMENT PARTS.
Replace or repair damaged cords.
Catalog Series ST1000 FORM NO. 264162-03 REV. 3 PRINTED IN MEXICO AUG. ‘02
