TWO WAY OR THREE WAY
IN-WALL DIVERTER
Installation
Instructions
50321REV. 1.1
THREE WAY: R430
TWO WAY: R420
SHOWER SYSTEMS
Certified to comply with ANSI A112.18.1M

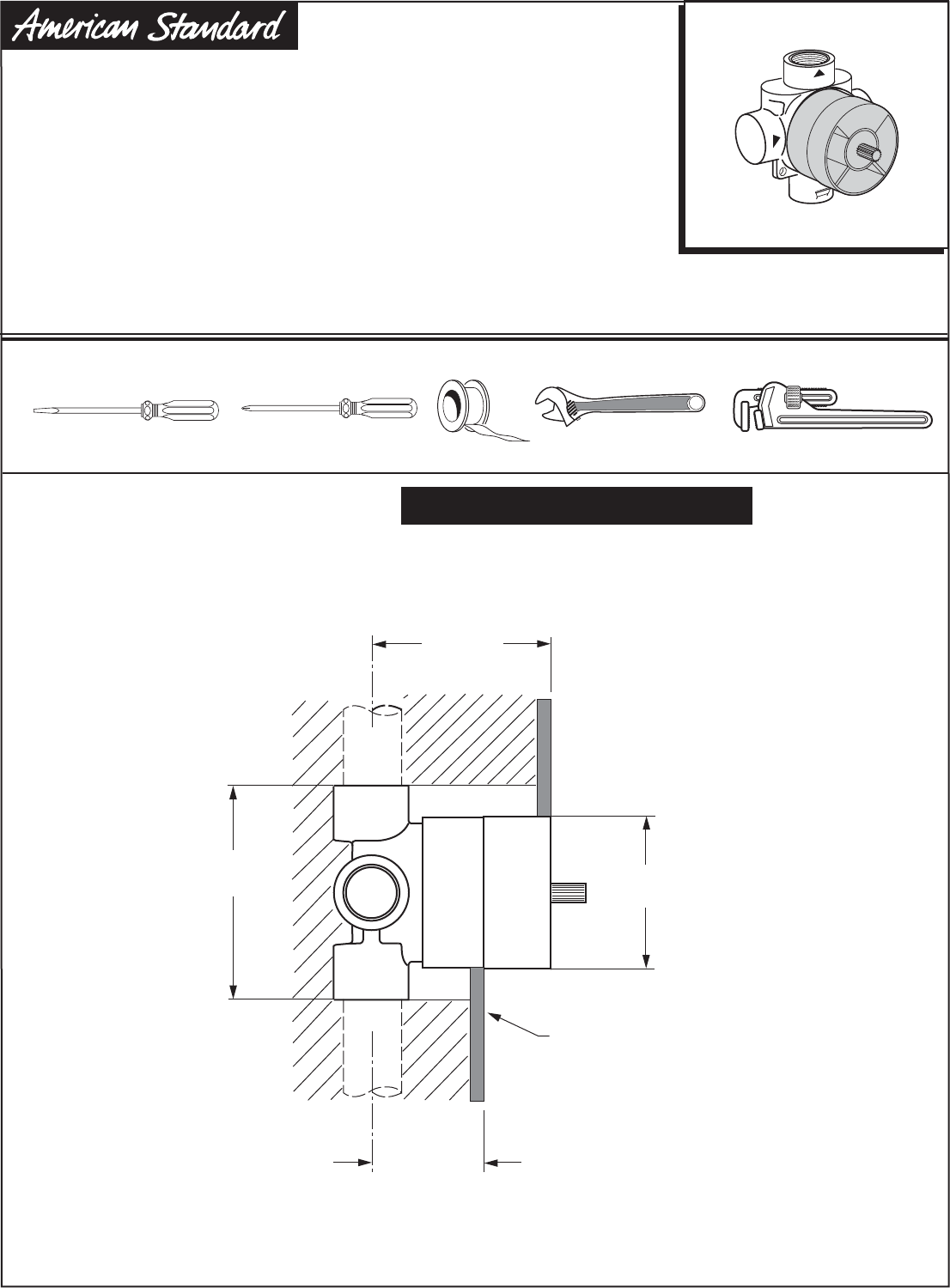

ROUGHING-IN DIMENSIONS
NOTE: NO CONCEALED PIPING FURNISHED
41.1mm
(1-5/8")
MIN.
66.1mm
(2-9/16")
MAX.
FINISHED
WALL
79mm
(3-1/8")
57mm
(2-1/4")
ALL CONNECTIONS 1/2" NPT
CAUTION: DO NOT SEAL ANY OUTLETS. DIVERTER
CANNOT BE USED AS A STOP VALVE.
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
MAX
Recommended Tools
Flat Blade Screwdriver
Teflon Tape
Phillips Screwdriver
Adjustable Wrench
Pipe Wrench
