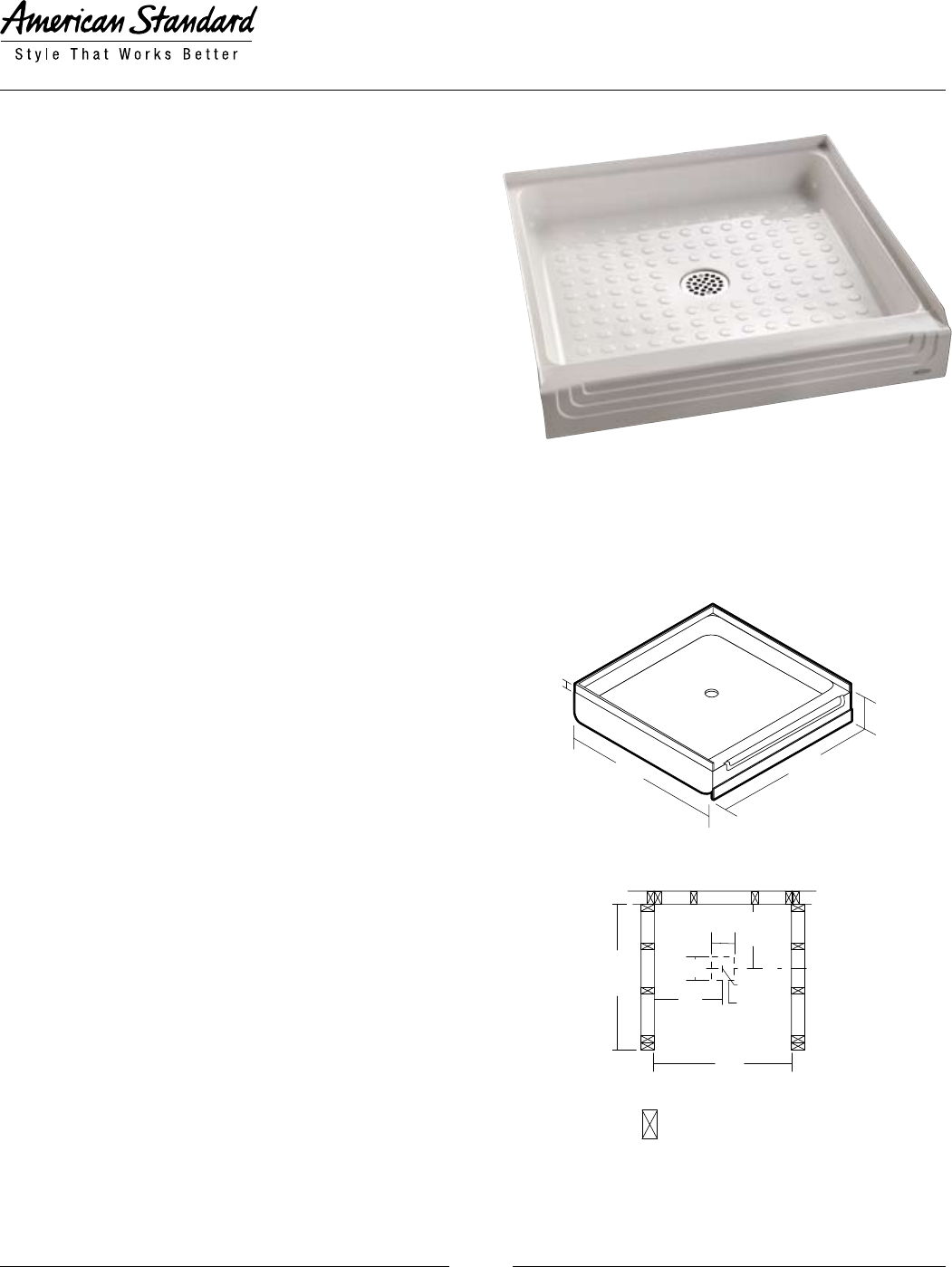

ACRYLUX™ 32" x 32" SHOWER BASE
❑ 3232Y1.ST SHOWER BASE
Product Features:
• High-gloss acrylic-capped ABS with
berglass reinforcement
• Single threshold
• Integral three-sided, tiling/water
retention ange
• Textured bottom
Nominal Dimensions:
31-7/8" x 31-5/8" x 5-1/8"
(810 x 803 x 130mm)
For use with:
• 3232Y1.SW Shower Wall Set
• Base can also be installed without Acrylux wall set
Compliance Certications -
Meets or Exceeds the Following Specications:
• ANSI Z124.2 for Plastic Showers
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
STUD LAYOUT
33-1/2"
(851mm)
31-5/8"
(828mm)
1"
(25mm)
31-7/8"
(835mm)
5-1/8"
(130mm)
32"
(813mm)
14-3/4"
(375mm)
6"
(152mm)
6"
(152mm)
16"
(406mm)
Drain C
L
Floor Cut Out
6" x 6" (154 x 154mm)
= Stud Location
