American Standard 1660.503 Outdoor Shower User Manual



F27
© 2006 American Standard Inc.

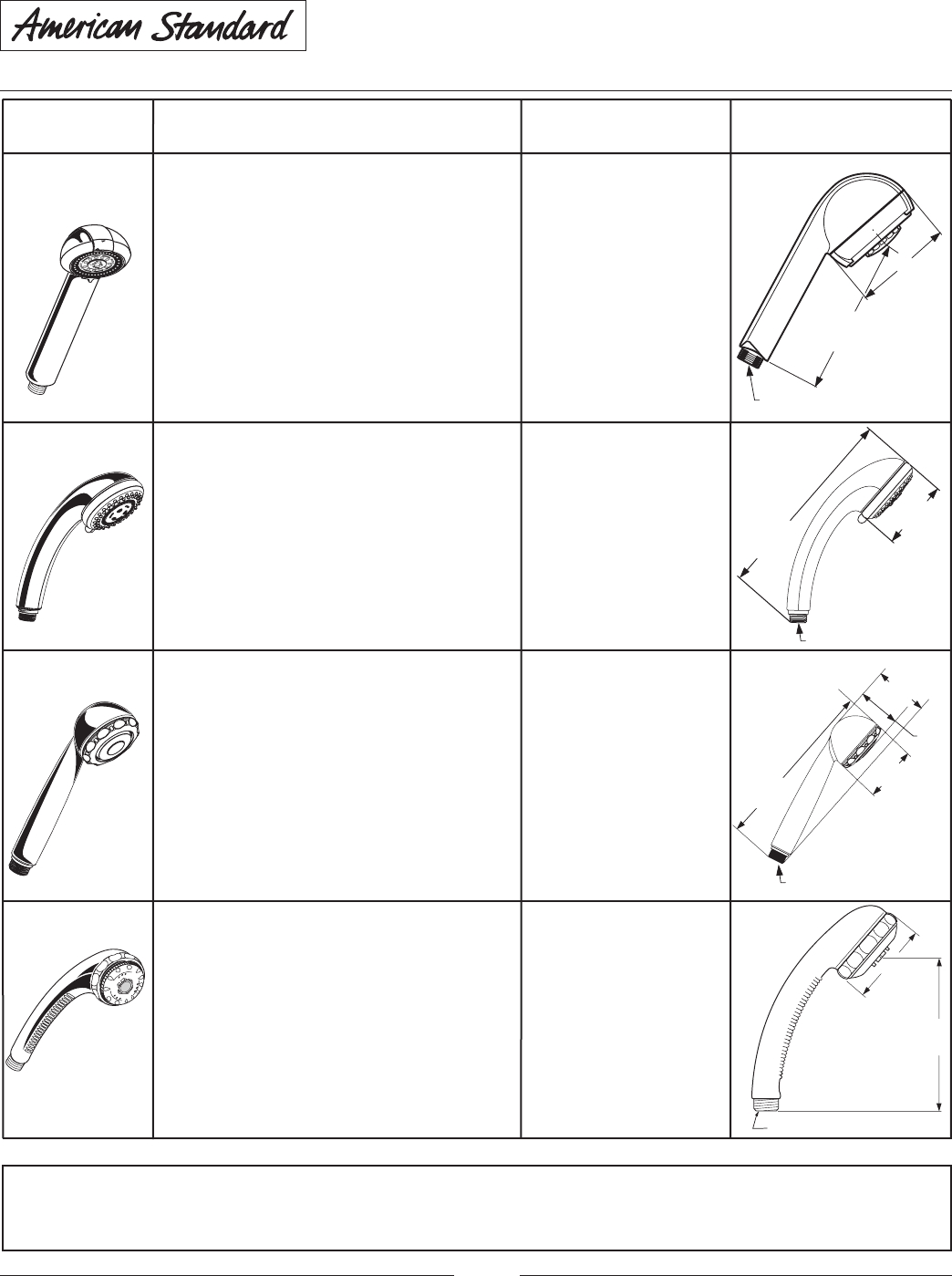

SHOWER SYSTEMS
HAND HELD PERSONAL SHOWERS & BODY SPRAYS
Description/FeaturesModel # Finishes
1660.500
1660.501
1660.503
.002 Polished Chrome
.099 Polished Brass (PVD)
.295 Satin Nickel (PVD)
.002 Polished Chrome
.099 Polished Brass (PVD)
.295 Satin Nickel (PVD)
.002 Polished Chrome
"Soft" Personal Shower
Spray Pattern: Variable spray adjusts from a
conventional spray to a champagne flow.
Simple Spray Pattern Adjustment: Spray
patterns can be changed with a flick of the
thumb. A true one-handed operation.
Lightweight, Ergonomic Design: For a
sure grip even with wet, soapy hands.
Flow Restrictor: 2.5 gpm/9.5L/min.
Roughing-In
Dimensions
1/2" NPSM
"Sport" Personal Shower
Spray Pattern: Conventional spray adjusts
from an invigorating needle spray to a soft
drenching flow.
Simple Spray Pattern Adjustment: Spray
patterns can be changed with a flick of the
thumb. A true one-handed operation.
Lightweight, Ergonomic Design: For a
sure grip even with wet, soapy hands.
Flow Restrictor: 2.5 gpm/9.5L/min.
"3" Function Personal Shower
Spray Pattern: Variable spray adjusts from a
conventional spray to an aerated flow to a
massage action.
Simple Spray Pattern Adjustment: Spray
patterns can be changed with a flick of the
thumb. A true one-handed operation.
Lightweight, Ergonomic Design: For a
sure grip even with wet, soapy hands.
Flow Restrictor: 2.5 gpm/9.5L/min.
SUGGESTED SPECIFICATION:
Personal shower shall be ergonomically designed for a positive grip even when wet. Spray pattern adjustment (on applicable
models) shall be performed with simple movement of thumb without need to change grip on handle. Fitting shall be American
Standard Model # 1660.___.___.
NOTE: Additional handshowers appear on back.
130mm
(5-1/8)
73mm
(2-7/8)
1/2" NPSM
1660.525
.002 Polished Chrome
.099 Polished Brass (PVD)
.295 Satin Nickel (PVD)
"Trevi" Personal Shower
Self Cleaning Patented Design: Flexible
ring with spray holes prevents lime scale build
up.
Spray Pattern: Variable spray adjusts from a
conventional spray to an aerated flow to a
massage action.
Lightweight, Ergonomic Design: For a
sure grip even with wet, soapy hands.
Flow Restrictor: 2.5 gpm/9.5L/min.
S
O
F
T
N
O
R
M
A
L
MASS
A
GE
100mm
(4)
160mm
(6-1/4)
1/2" NPSM
1/2" NPSM
240mm
(9-1/2)
85mm
(3-3/8)
20
9mm
(8-1/4)
65
mm
(2-1
/
2)
52
mm
(2)
65mm
(2-1/
2)
