TWO WAY OR THREE WAY
IN-WALL DIVERTER
Installation
Instructions
50321B
Printed in Germany
THREE WAY:
1660.300
1660.430
1660.431
TWO WAY:
1660.200
1660.440
1660.441
SHOWER SYSTEMS
Certified to comply with ANSI A112.18.1M
DISK
O-RING
DISK
O-RINGS
TWO WAY
BODY
THREE WAY
BODY
LOWER
DISK
UPPER
DISK
SHAFT
WASHER
WASHER
SPRING
SHAFT
O-RING
CAP
CAP
PLASTER
GUARD
CAP
SEAL
ESCUTCHEON
HANDLE
HANDLE
ADAPTER
HANDLE
SCREW
STEM
ESCUTCHEON
NUT
DECORATOR
RING
CLIP
MAX

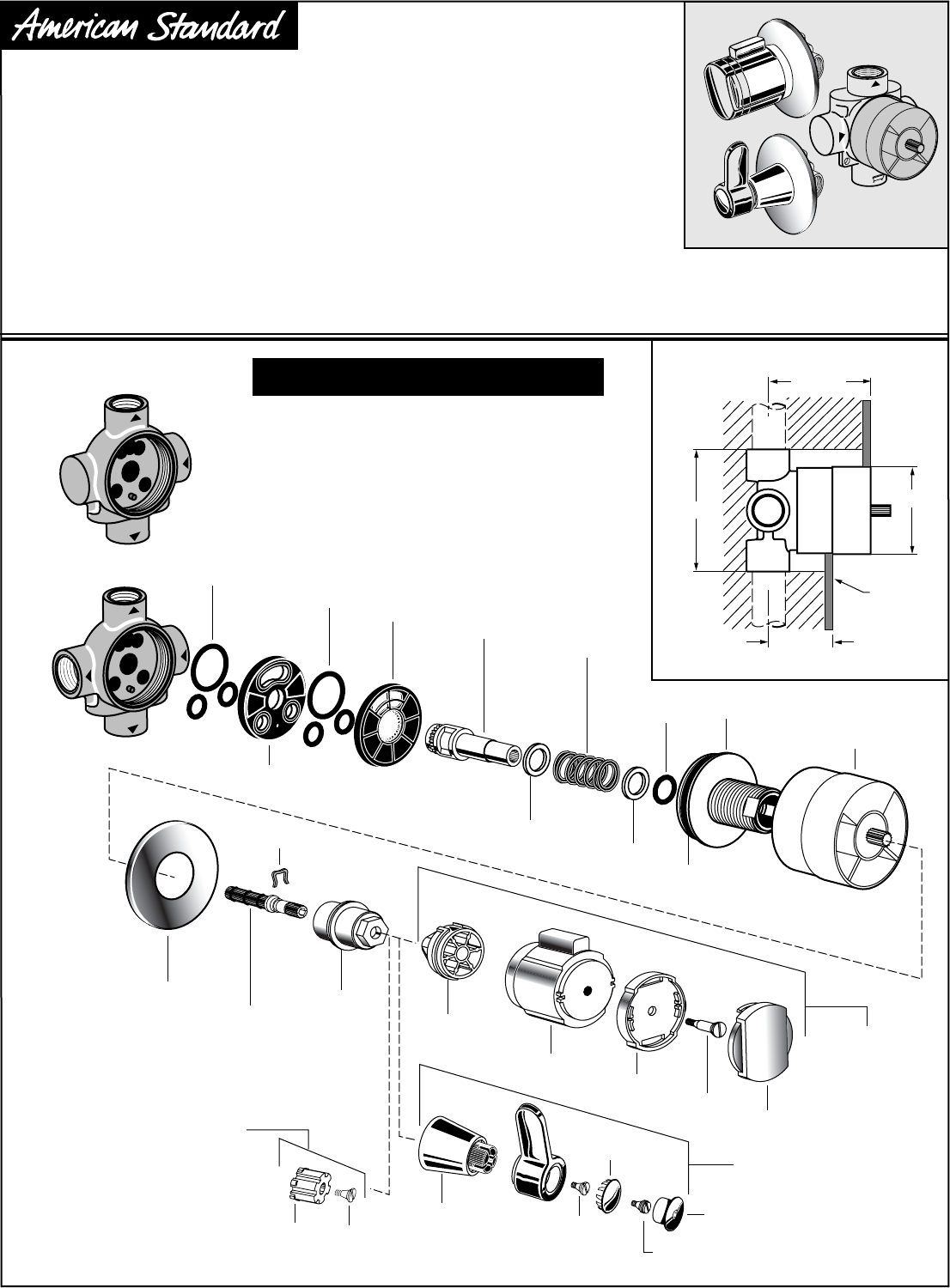

ROUGHING-IN DIMENSIONS
NOTE: NO CONCEALED PIPING FURNISHED
1-5/8
FINISHED
WALL
2-9/16
3-1/8
2-1/4
ALL CONNECTIONS 1/2" NPT
CAUTION: DO NOT SEAL ANY OUTLETS. DIVERTER
CANNOT BE USED AS A STOP VALVE.
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
INDEX
BUTTON
HANDLE
SKIRT
HANDLE
(1660.431/.441)
VANDAL-RESISTANT
INDEX CAP
VANDAL-RESISTANT
HANDLE SCREW
HANDLE
SCREW
HANDLE
(1660.430/.440
MAX
(1660.200/.300)
HANDLE
ADAPTOR
HANDLE
SCREW
